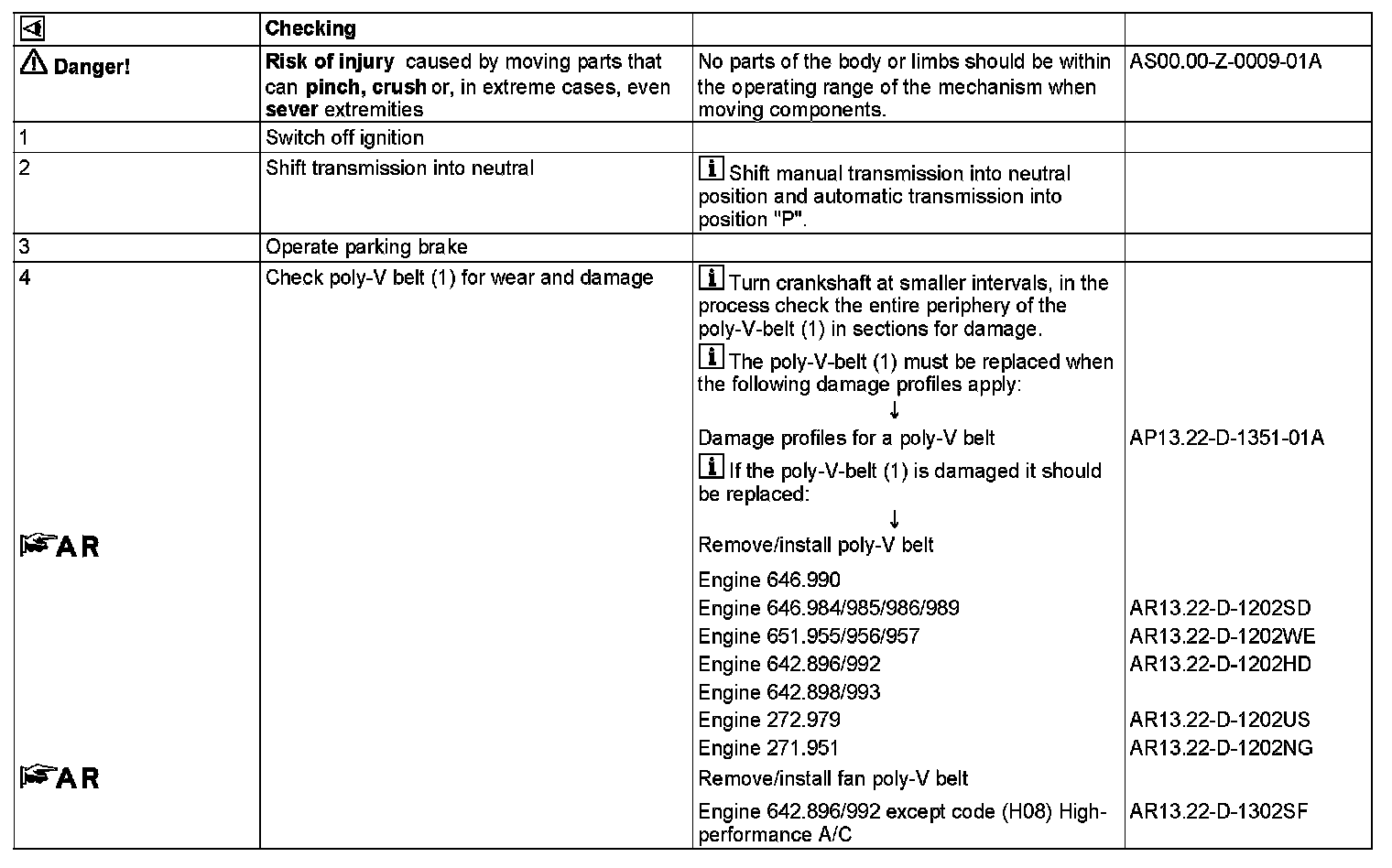

AP13.22-D-1351H Check Poly-V Belt For Wear and Damage
AP13.22-D-1351H Check Poly-V Belt For Wear and Damage
AP13.22-D-1351H Check Poly-V Belt For Wear And Damage

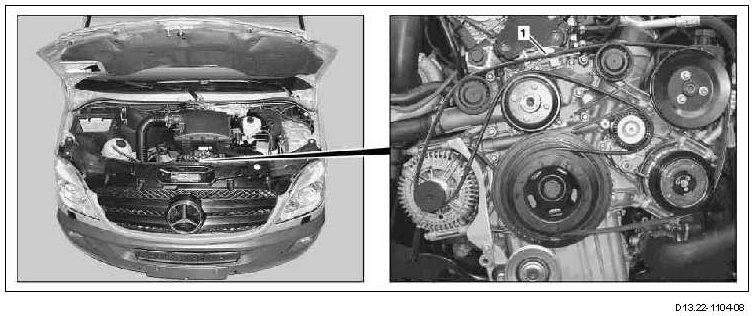

Shown on engine 646
.
1
Poly-V-belt
