Turn Signal Lamp: Service and Repair

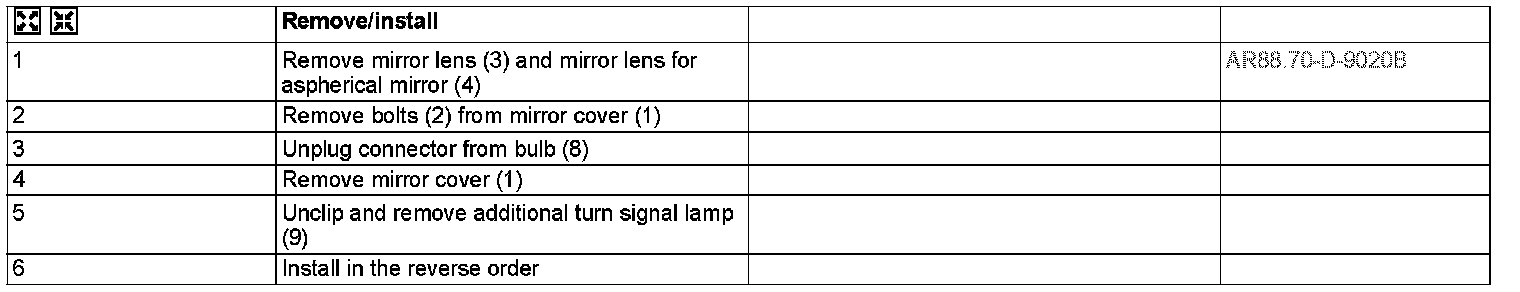

AR82.25-D-4726A Remove/Install Additional Turn Signal Lamp

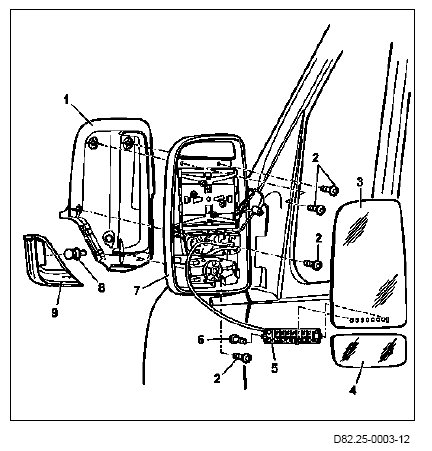

1 Mirror cover
2 Bolt
3 Mirror lens
4 Mirror lens for aspherical mirror
5 Parktronic LED module
6 Bolt
7 Mirror holder
8 Bulb
9 Auxiliary turn signal lamp
