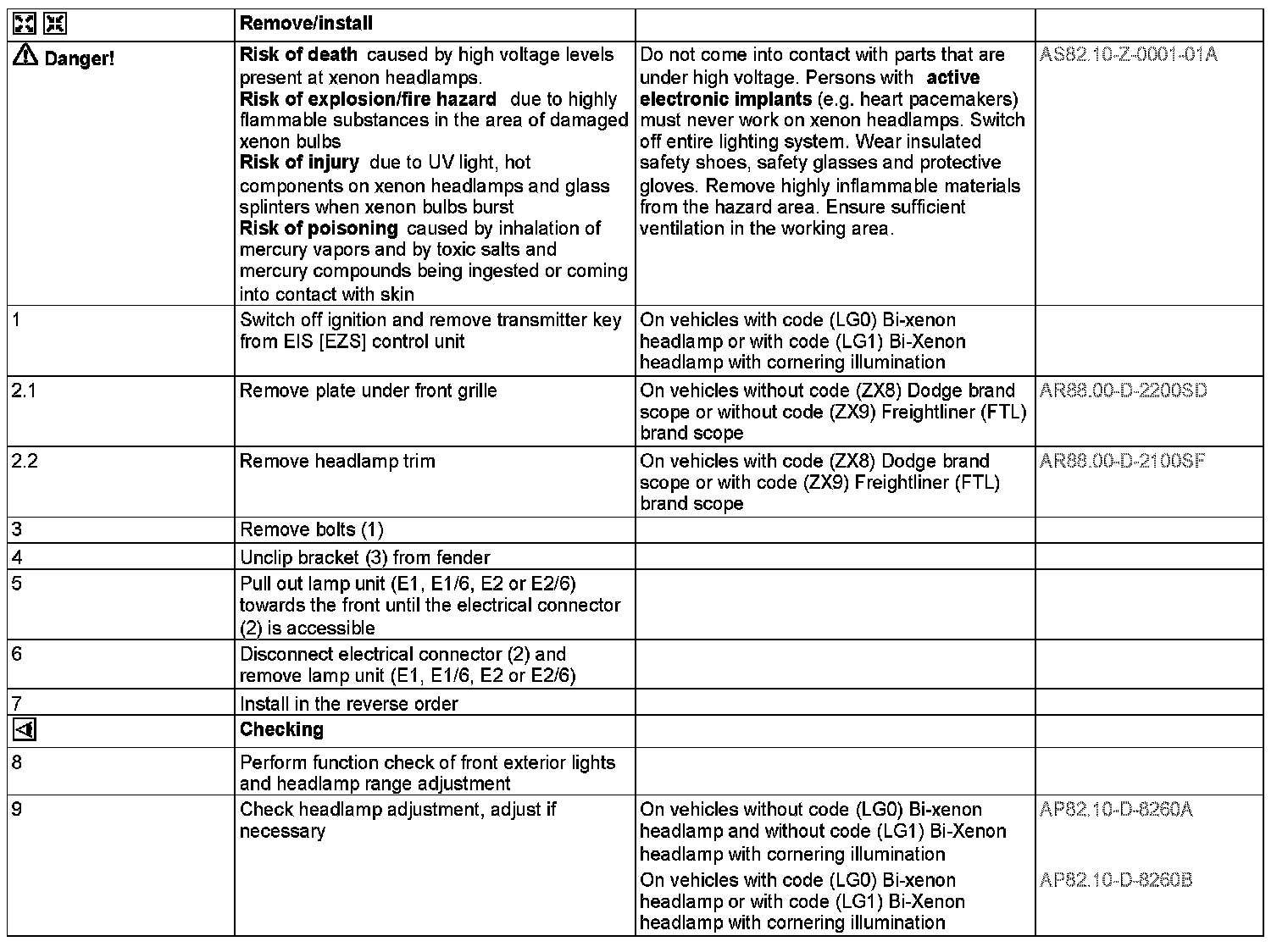

AR82.10-D-4730H Remove/Install Lamp Unit

AR82.10-D-4730H Remove/Install Lamp Unit

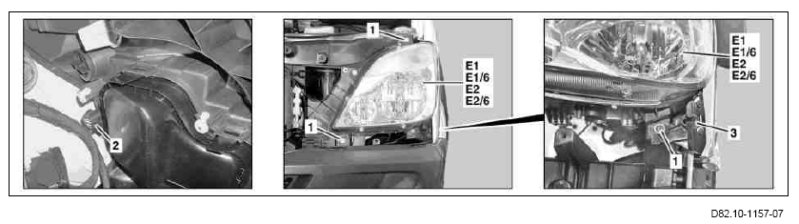

Shown on vehicle without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights
1 Screw
2 Electrical connector
3 Bracket
E1 Left lamp unit (without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights)
E1/6 Left xenon lamp unit (with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-xenon headlamp with cornering lights)
E2 Right lamp unit (without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights)
E2/6 Right xenon lamp unit (with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-xenon headlamp with cornering lights)
