Headlamp Alignment Actuator: Service and Repair

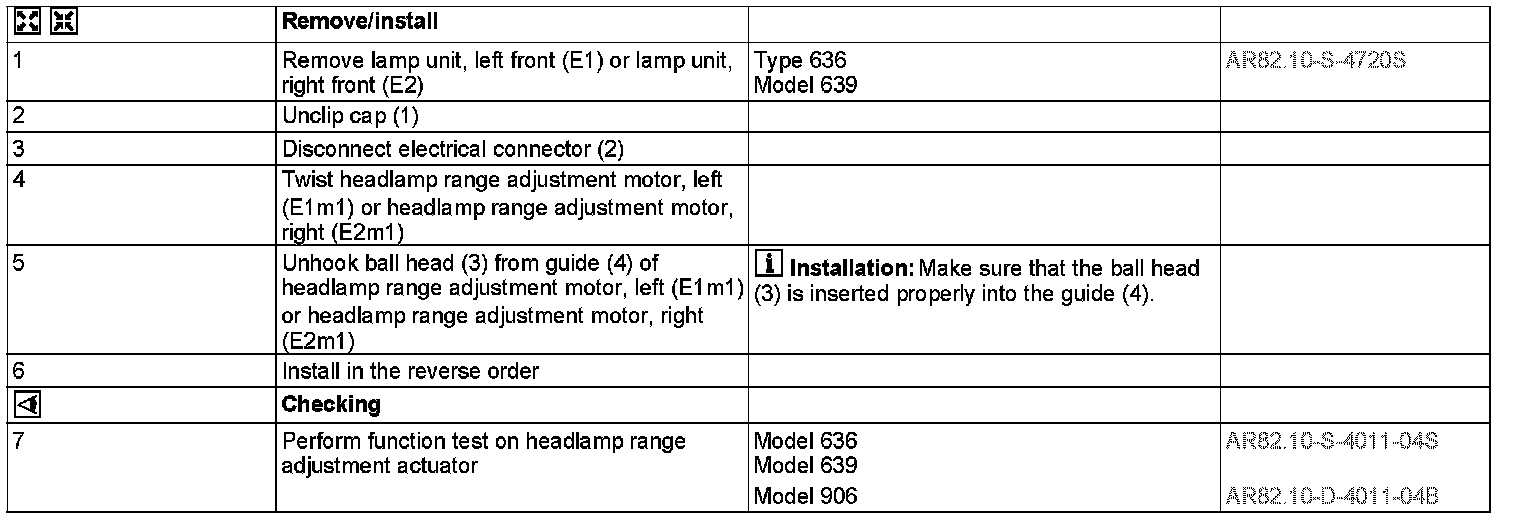

AR82.10-S-4012S Remove/Install Headlamp Range Adjustment Actuator

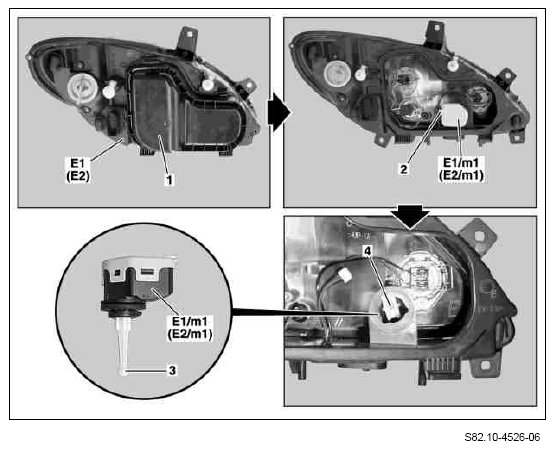

Illustrated on model 639
1 Cap
2 Electrical connector
3 Ball head
4 Guide
E1 Lamp unit, left front
E1m1 Headlamp range adjustment motor, left
E2 Lamp unit, right front
E2m1 Headlamp range adjustment motor, right
