GF82.10-D-3006H Fog Lamp Actuation, Function

GF82.10-D-3006H Fog Lamp Actuation, Function

- except CODE (LG1) Xenon headlamps
- except CODE (L16) Halogen front fog lamps

Function sequence
Function requirements:
- C. 30 ON
- No undervoltage or overvoltage

The rotary light switch (S1) is set to the "Standing lamp" or "Low beam" position. The standing lamp (E1e3) in the left lamp unit (E1) and the standing lamp (E2e3) in the right lamp unit (E2) or the low beam (E1e2) in the left lamp unit and the low beam (E2e2) in the right lamp unit are switched on.

Moreover, the taillamp (E3e2) of the left taillamp (E3), in model 906.611/613/631/633/635/637/653/655/657/711/ 713/731/733/735, or the taillamp (E3/6e2) of the left taillamp (E3/6), in model 906.111/113/131/133/135/153/155/211/213/ 231/233/235/253/255, and the taillamp (E4e2) of the right taillamp (E4), in model 906.611/613/631/633/635/637/ 653/655/657/711/713/731/733/735, or the taillamp (E4/6e2) of the right taillamp (E4/6), in model 906.111/113/131/133/ 135/153/155/211/213/231/233/235/253/255, the left license plate lamp (E19/1) as well as the right license plate lamp (E19/2) are switched on.

The rotary light switch is also pulled out to the 1st detent position "Front fog lamp". The SAM control unit (N10) records the signal "Front fog lamp ON" in addition to the "Standing lamp" position or the "Low beam" position of the rotary light switch. The SAM control unit actuates the front fog lamp (E1e4) in the left lamp unit and the front fog lamp (E2e4) in the right lamp unit.

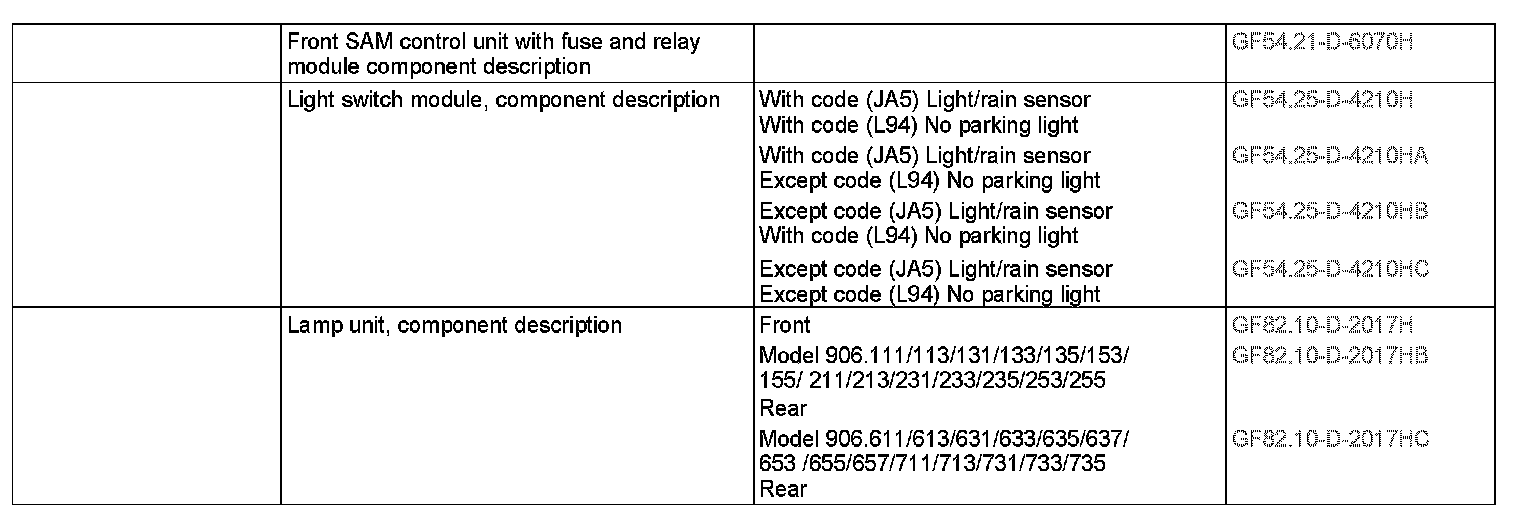

The green front fog lamps indicator lamp in the light switch module visually indicates that the front fog lamps are on.
