GF82.10-D-3000HA Standing Light Actuation, Function

GF82.10-D-3000HA Standing Light Actuation, Function

- with CODE (LG1) Xenon headlamps

The rotary light switch (S1) is in the "standing lamp" position and sends "standing lamp ON" to the SAM control unit (N10). The SAM control unit actuates the following lamps:
- Standing lamp (E1/6e3) in left XENON lamp unit (E1/6)
- Standing lamp (E2/6e3) in right XENON lamp unit (E2/6)
- Taillamp (E3e2) in left taillamp (E3) in model 906.611/613/631/633/635/637/653/655/657/711/713/731/ 733/735 or taillamp (E3/6e2) in left taillamp (E3/6) in model 906.111/113/131/133/135/153/155/211/ 213/231/233/235/253/255
- Taillamp (E4e2) in right taillamp (E4) in model 906.611/613/631/633/635/637/653/655/657/711/713/ 731/733/735 or taillamp (E4/6e2) in right taillamp (E4/6) in model 906.611/613/631/633/ 635/637/653/655/657/711/713/731/733/735
- Left license plate lamp (E19/1)
- Right license plate lamp (E19/2)

In model 906.113/133/135/153/155/213/233/235/253/255/613/ 633/635/637/653/655/657/713/733/735 with code (LB1) Side-marker lamps:
- Left rear side-marker lamp (E6/7)
- Right rear side-marker lamp (E6/8)
- Left front side-marker lamp (E6/9)
- Right front side-marker lamp (E6/10)
- Left center side-marker lamp (E6/11)
- Right center side-marker lamp (E6/12)

In model 906.111/113/131/133/135/153/155/211/213/231/233/ 235/253/255 with code (L07) Clearance lamps:
- End-outline marker lamp at right front (E44/1)
- End-outline marker lamp at left front (E44/2)

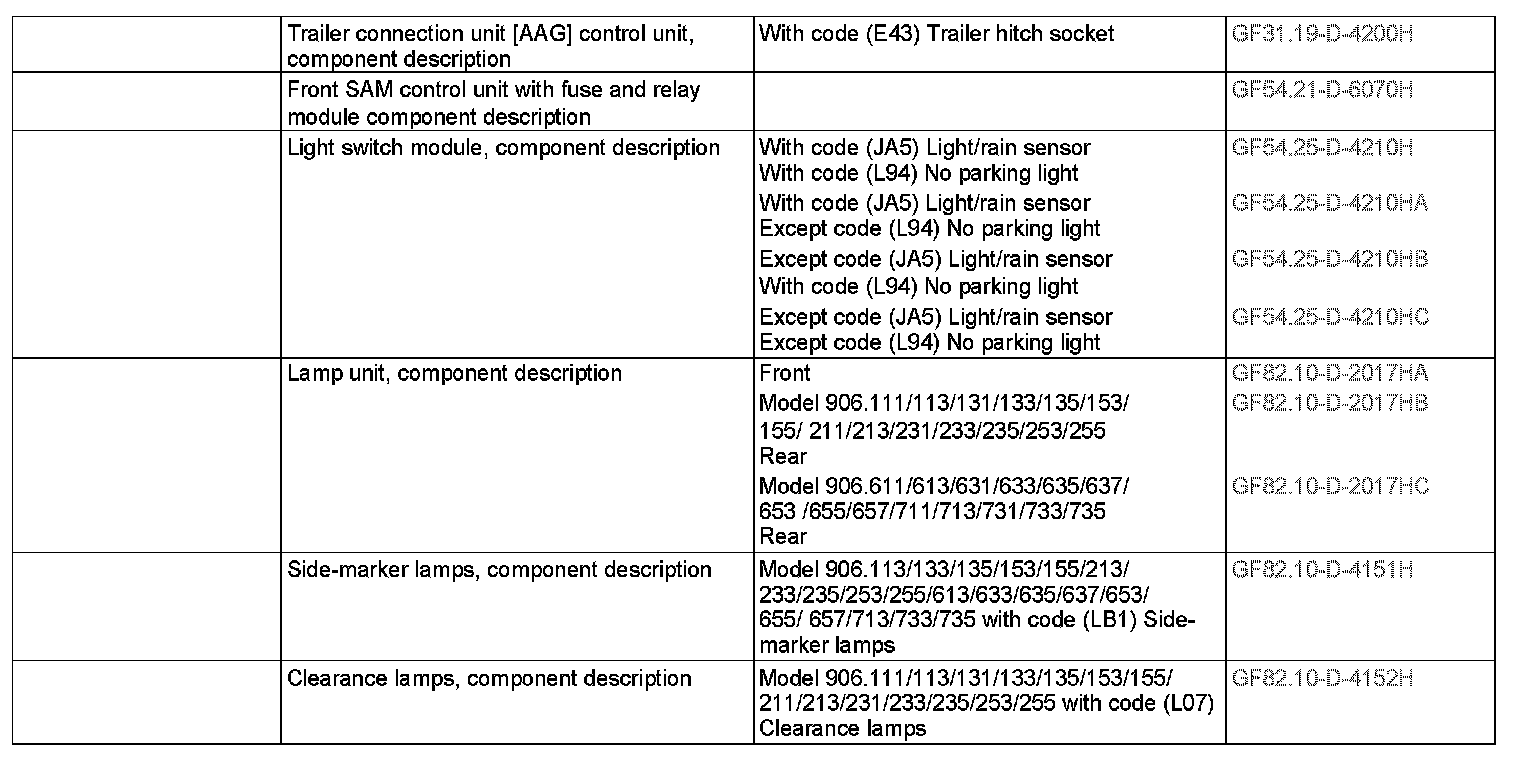

At the same time, in vehicles with code (E43) Trailer hitch socket, the signals for actuating the above-listed lamps are forwarded over the Controller Area Network bus class B (interior) (CAN-B) to the trailer connection unit [AAG] control unit (N28/1).
