GF82.10-D-2111H Headlamp Range Adjustment Motor, Component Description

GF82.10-D-2111H Headlamp Range Adjustment Motor, Component Description

- except CODE (LG1) Bi-xenon headlamps with cornering illumination

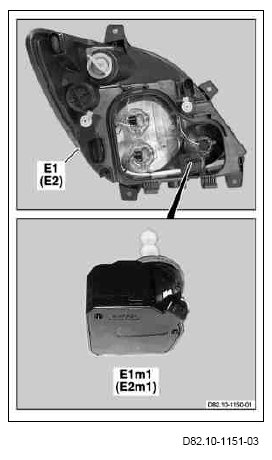

E1 Left lamp unit
E1m1 Headlamp range adjustment motor
E2 Right lamp unit
E2m1 Headlamp range adjustment motor

Location
The headlamp range adjustment motor (E1m1) is located in the left lamp unit.
The headlamp range adjustment motor (E2m1) is located in the right lamp unit.

Task
The headlamp range adjustment motors adjust the incline angle of the reflector in the left lamp unit and the incline angle of the reflector in the right lamp unit as a function of the position of the headlamp range controller (S1/1). The headlamp range adjustment motors are actuated via the SAM control unit (N10).
