GF82.10-D-2017H Lamp Unit, Component Description

GF82.10-D-2017H Lamp Unit, Component Description

- except CODE (LG1) Bi-xenon headlamps with cornering illumination

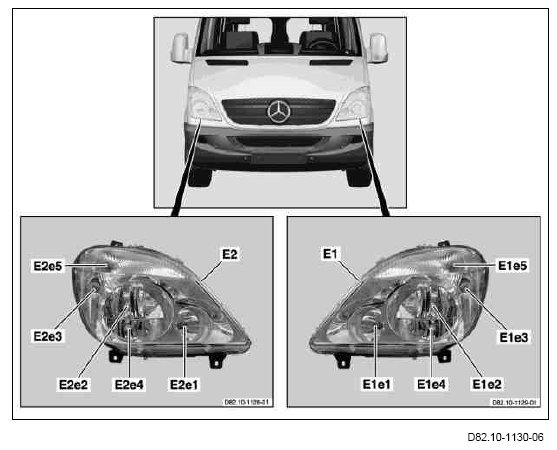

Vorn







E1 Left lamp unit
E1e1 High beam
E1e2 Low beam
E1e3 Side lamp
E1e4 Front fog lamp
E1e5 Turn signal lamp
E2 Right lamp unit
E2e1 High beam
E2e2 Low beam
E2e3 Side lamp
E2e4 Front fog lamp
E2e5 Turn signal lamp

Location
The left lamp unit is installed on the left in the vehicle front section.
The right lamp unit is installed on the right in the vehicle front section.

Task
- Illumination of the travel distance for various visibility conditions
- Indicating the direction of travel to left or right and hazard warning flashing
- Indicating the position of the vehicle during standstill
