GF82.10-D-0003HA Exterior Lights, Function

GF82.10-D-0003HA Exterior Lights, Function

- with CODE (LG1) Xenon headlamps

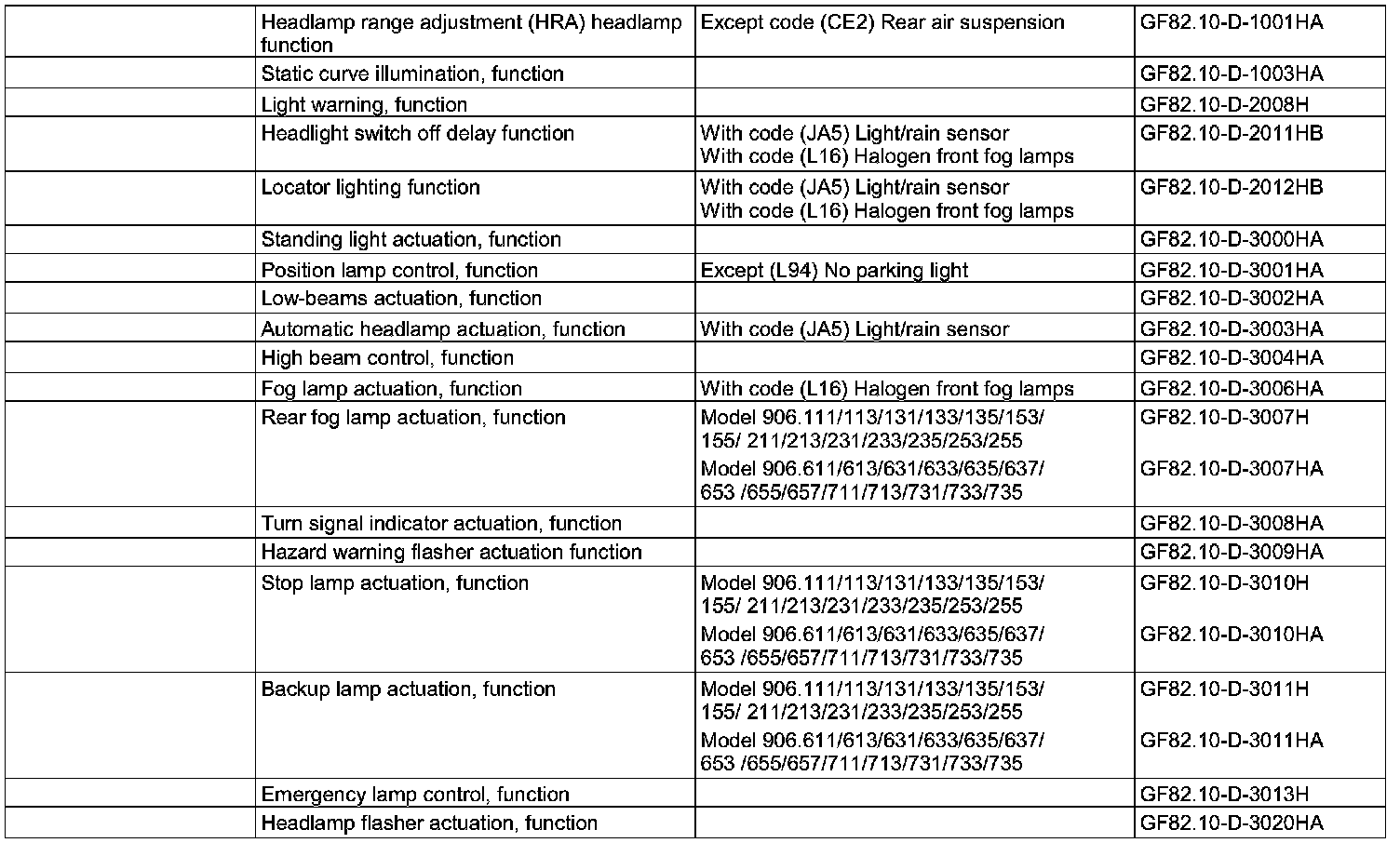

The exterior lights (ABL) comprise the following subfunctions:
- Parking lamp, except code (L94) No parking light
- Side lamp
- Curve illumination
- Low beam
- High beam and headlamp flasher function
- Front fog lamp, with code (L16) Halogen front fog lamps
- Rear foglight
- Turn signal indicator lamp and hazard warning flasher
- Backup lamp
- Stop lamp
- Emergency light
- Headlamp range adjustment (LWR), except code (CE2) Rear air suspension
- Headlamp delayed switch-off
- Locator lighting (AFB)

These subfunctions are triggered via various controls. The central control for the parking lamp, except code (L94) No parking light, the standing lamp, the low beam, the front fog lamp, with code (L16) Halogen front fog lamps, and the rear fog lamp is the rotary light switch (S1). The LWR, except code (CE2) Rear air suspension, is activated automatically via the LWR control unit (N71). LWR is not required for vehicles with code (CE2) Rear air suspension.
The high beam and headlamp flasher function are triggered via the headlamp flasher/high beam switch (S144s2), the turn signal indicator lamp via the left and right turn signal switch (S144s1). Both switches are integrated in the combination switch (S144).

The backup lamp is triggered by the backup lamp switch (S16/2) in vehicles with transmission 711.6. For vehicles with transmission 722.6, the selector lever position "R" is read in by the EWM control unit (N15/5). The EWM control unit transmits the selector lever position "R" message via Controller Area Network bus class C (engine compartment) (CAN-C) to the EZS control unit (N73).

The EZS control unit transmits the selector lever position "R" message via Controller Area Network bus class B (interior) (CAN-B) to the SAM control unit (N10). The SAM control unit controls all lamps of the ABL.
At the same time, in vehicles with code (E43) Trailer hitch socket, the signals for activating all the lamps of the exterior lights are forwarded over CAN-B to the trailer connection unit [AAG] control unit (N28/1).
