GF54.50-D-0001-02H Trip Computer (TRIP), Networking of Components

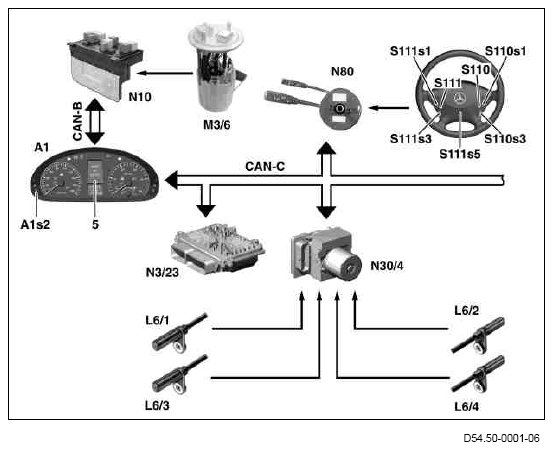

GF54.50-D-0001-02H Trip Computer (TRIP), Networking Of Components
- with CODE (CL4) Multifunction steering wheel with trip computer







Shown with engine M272
5 Multifunction display
A1 Instrument cluster
A1s2 Reset button
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 Right rear rpm sensor
M3/6 Fuel pump with fuel level sensor
N3/23 ME control unit
N10 SAM control unit
N30/4 ESP control unit
N80 MRM control unit
S110 Right multifunction steering wheel button group
S110s1 + and - button
S110s3 Accept/terminate phone call button
S111 Left multifunction steering wheel button group
S111s1 Scroll forward/back button
S111s3 System selection button
S111s5 Signaling horn button
