GF54.30-D-6000HL Instrument Cluster, Component Description
GF54.30-D-6000HL Instrument Cluster, Component Description
- except CODE (JK3) High-end instrument cluster with speedometer in km

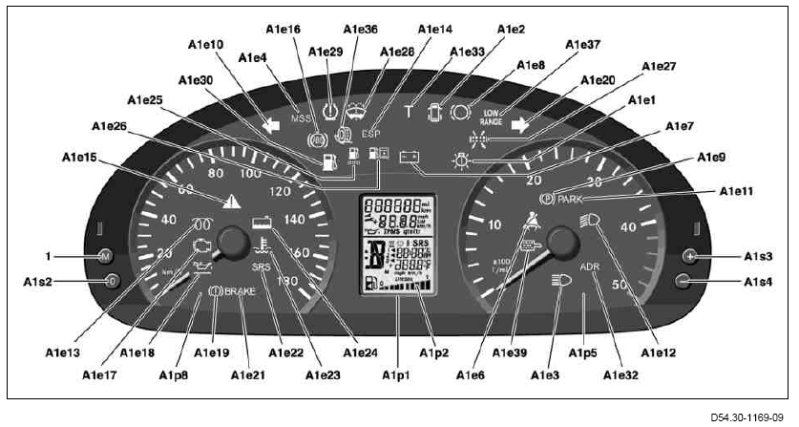

Schematic representation
1 M button
A1e1 Bulb failure indicator lamp
A1e2 Door indicator lamp
A1e3 High beam indicator lamp
A1e4 Engine start/stop indicator lamp
A1e6 Seat belt warning lamp
A1e7 Alternator warning lamp
A1e8 Brake wear indicator lamp
A1e9 Parking brake indicator lamp
A1e10 Left tern signal indicator lamp
A1e11 Parking brake indicator lamp
A1e12 Low beam indicator lamp
A1e13 Preglow indicator lamp
A1e14 ESP indicator lamp
A1e15 Traction warning indicator lamp
A1e16 ABS indicator lamp
A1e17 EOBD indicator lamp
A1e18 Oil level indicator lamp
A1e19 Brake fluid level warning lamp
A1e20 Right turn signal indicator lamp
A1e21 Brake fluid level warning lamp
A1e22 SRS warning lamp
A1e23 Coolant temperature warning lamp
A1e24 Coolant level indicator lamp
A1e25 Dirty fuel filter indicator lamp
A1e26 Water in fuel filter indicator lamp
A1e27 Dirty air filter indicator lamp
A1e28 Washer fluid level indicator lamp
A1e29 RDK indicator lamp
A1e30 Fuel reserve/tank cap indicator lamp
A1e32 ADR indicator lamp
A1e33 Tachograph indicator lamp
A1e36 BAS indicator lamp
A1e37 LOW RANGE indicator lamp
A1e39 Diesel particulate filter indicator lamp
A1p1 Display
A1p2 Fuel level and reserve indicator
A1p5 Tachometer
A1p8 Speedometer
A1s2 Reset button
A1s3 Plus button
A1s4 Minus button
Location
The instrument cluster (A1) is located in the dashboard on the driver's side.
Task
The instrument cluster displays the dynamic and static status of the vehicle.
The following displays form the basis of driver information:
- Speedometer
- Tachometer
- Display
- Warning and indicator lamps
The instrument cluster is operated directly at the instrument cluster using the following buttons:
- M button
- Reset button
- Plus button
- Minus button
There are various versions of the instrument cluster which depend on the vehicle equipment, equipment lines and engine type.
