GF54.30-D-6000HH Instrument Cluster, Component Description

GF54.30-D-6000HH Instrument Cluster, Component Description

- with CODE (JK3) High-end instrument cluster with speedometer in km

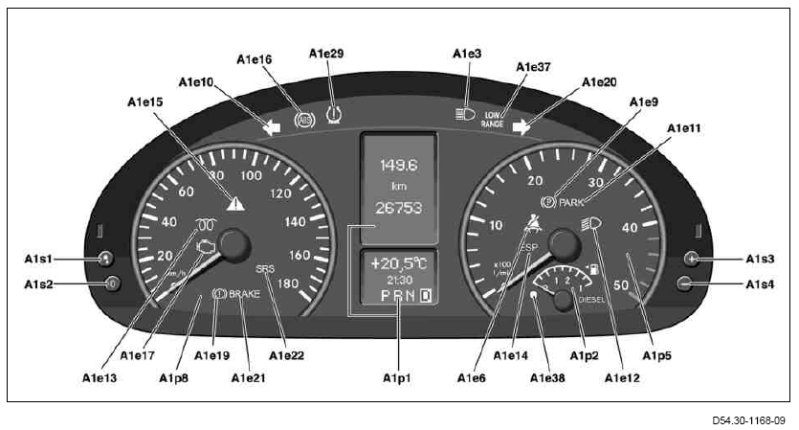

Schematic representation
A1e3 High beam indicator lamp
A1e6 Seat belt warning lamp
A1e9 Parking brake indicator lamp
A1e10 Left turn signal indicator lamp
A1e11 Parking brake indicator lamp
A1e12 Low beam indicator lamp
A1e13 Preglow indicator lamp
A1e14 ESP indicator lamp
A1e15 Traction warning indicator lamp
A1e16 ABS indicator lamp
A1e17 EOBD indicator lamp
A1e19 Brake fluid level warning lamp
A1e20 Right turn signal indicator lamp
A1e21 Brake fluid level warning lamp
A1e22 SRS warning lamp
A1e29 RDK indicator lamp
A1e37 LOW RANGE indicator lamp
A1e38 Fuel reserve indicator lamp
A1p1 Display
A1p2 Fuel level and reserve indicator
A1p5 Tachometer
A1p8 Speedometer
A1s1 Engine oil level button
A1s2 Reset button
A1s3 Plus button
A1s4 Minus button

Location
The instrument cluster (A1) is located in the dashboard on the driver's side.

Task
The instrument cluster displays the dynamic and static status of the vehicle.
The following displays form the basis of driver information:
- Speedometer
- Tachometer
- Display
- Fuel level and reserve indicator
- Warning and indicator lamps

The instrument cluster is operated directly at the instrument cluster using the following buttons:
- Engine oil level button
- Reset button
- Plus button
- Minus button

In addition, the instrument cluster is also operated using the following buttons on the multifunction steering wheel (MFL):
- Right multifunction steering wheel pushbutton group (S110)
- Left multifunction steering wheel pushbutton group (S111)

There are various versions of the instrument cluster which depend on the vehicle equipment, equipment lines and engine type.
