GF54.30-D-4106H Fluid Level Indicator Switch, Component Description

GF54.30-D-4106H Fluid Level Indicator Switch, Component Description








S42 Windshield washer fluid level indicator switch

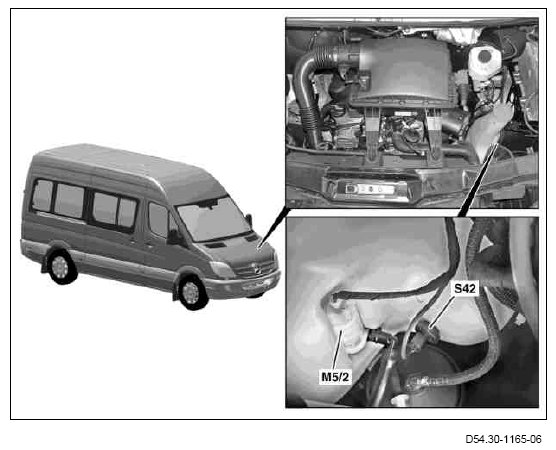

Location
The windshield washer fluid level indicator switch is fitted in the windshield washer fluid reservoir.

Task
- Detection of washer fluid level
- Actuation signal for washer fluid level indicator lamp (A1e28) in instrument cluster (A1)
