GF54.30-D-2011HL Display Monitoring/Warning Messages Via Indicator Lamps, Function
GF54.30-D-2011HL Display Monitoring/Warning Messages Via Indicator Lamps, Function
- except CODE (JK3) High-end instrument cluster with speedometer in km

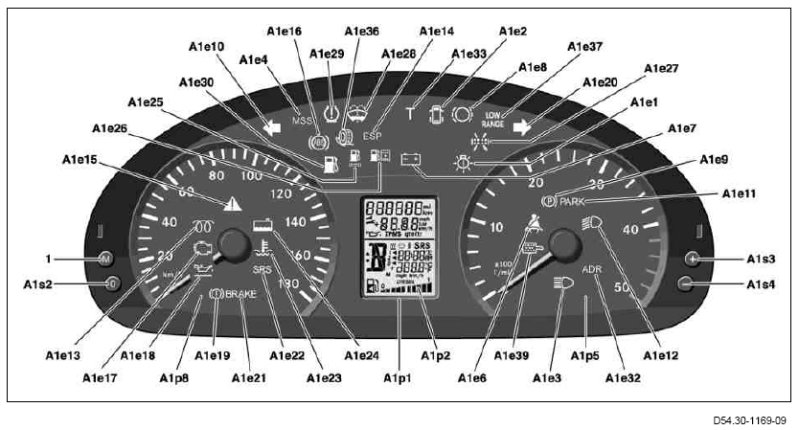

Schematic representation
1 M button
A1e1 Bulb failure indicator lamp
A1e2 Door indicator lamp
A1e3 High beam indicator lamp
A1e4 Engine start/stop indicator lamp
A1e6 Seat belt warning lamp
A1e7 Alternator warning lamp
A1e8 Brake wear indicator lamp
A1e9 Parking brake indicator lamp
A1e10 Left tern signal indicator lamp
A1e11 Parking brake indicator lamp
A1e12 Low beam indicator lamp
A1e13 Preglow indicator lamp
A1e14 ESP indicator lamp
A1e15 Traction warning indicator lamp
A1e16 ABS indicator lamp
A1e17 EOBD indicator lamp
A1e18 Oil level indicator lamp
A1e19 Brake fluid level warning lamp
A1e20 Right turn signal indicator lamp
A1e21 Brake fluid level warning lamp
A1e22 SRS warning lamp
A1e23 Coolant temperature warning lamp
A1e24 Coolant level indicator lamp
A1e25 Dirty fuel filter indicator lamp
A1e26 Water in fuel filter indicator lamp
A1e27 Dirty air filter indicator lamp
A1e28 Washer fluid level indicator lamp
A1e29 RDK indicator lamp
A1e30 Fuel reserve/tank cap indicator lamp
A1e32 ADR indicator lamp
A1e33 Tachograph indicator lamp
A1e36 BAS indicator lamp
A1e37 LOW RANGE indicator lamp
A1e39 Diesel particulate filter indicator lamp
A1p1 Display
A1p2 Fuel level and reserve indicator
A1p5 Tachometer
A1p8 Speedometer
A1s2 Reset button
A1s3 Plus button
A1s4 Minus button
Left turn signal indicator lamp and right turn signal indicator lamp
These are activated differently according to function:
- When giving turn signals, either the left turn signal indicator lamp or the right turn signal indicator lamp is actuated by the instrument cluster (A1). The signal for actuating the left turn signal indicator lamp or right turn signal indicator lamp is placed on the Controller Area Network bus class B (interior) (CAN-B) by the SAM control unit (N10). If one of the turn signal lamps fails, the left turn signal indicator lamp or right turn signal indicator lamp is actuated at twice the frequency.
- When the hazard warning flashers are operated, the left turn signal indicator lamp and right turn signal indicator lamp are always actuated by the instrument cluster.
High beam indicator lamp
The high beam indicator lamp lights up when the high beam is switched on. The signal for actuating the high beam indicator lamp comes from the SAM control unit via CAN-B.
Seat belt warning lamp
The seat belt warning lamp does light up during the check performed when the ignition is switched on. After the ignition has been switched on the lamp lights up for 6 seconds as a reminder.
The seat belt warning lamp also lights up if the circuit status is "circuit 61 ON", the vehicle speed is >25 km/h and the driver seat belt buckle switch (S68/1) is not closed. The seat belt warning lamp goes out as soon as the driver seat belt buckle switch is closed.
The signal for actuating the seat belt warning lamp comes from the lowline airbag control unit (A2/14) or the highline airbag control unit (A2/15) via CAN-B.
Parking brake indicator lamp
The parking brake warning lamp remains lit until the parking brake is released. The signal for actuating the parking brake warning lamp comes from the SAM control unit via CAN-B.
Low beam indicator lamp
The low beam indicator lamp lights up when the low beam is switched on. The signal for actuating the low beam indicator lamp comes from the SAM control unit via CAN-B.
Preglow indicator lamp with engine 642 or with engine 646
The preglow indicator lamp is actuated with "circuit 15 ON" until the preheating time has expired. The signal for actuating the preglow indicator lamp comes from the CDI control unit (N3/20) or the CDI control unit (N3/21) via the Controller Area Network bus class C (engine compartment) (CAN-C).
ESP indicator lamp
The ESP indicator lamp is actuated if there are malfunctions in the electronic stability program (ESP). The signal for actuating the ESP indicator lamp comes from the ESP control unit (N30/4) via CAN-C.
Traction warning indicator lamp
The traction warning indicator lamp is actuated when the ESP intervenes in the driving situation.
The signal for actuating the traction warning indicator lamp comes from the ESP control unit via CAN-C.
ABS indicator lamp
The ABS indicator lamp is actuated if there is a fault in the antilock brake system (ABS). The actuating signal comes from the ESP control unit via CAN-C.
EOBD indicator lamp
The EOBD indicator lamp is actuated if there is a fault in the injection system, the ignition system or the exhaust system. The signal for actuating the EOBD indicator lamp comes from the ME-SFI [ME] control unit (N3/23), the CDI control unit (N3/20) or the CDI control unit (N3/21) via CAN-C.
Bulb failure indicator lamp
The bulb failure indicator lamp lights up if one of the exterior lamps is faulty. The signal for actuating the bulb failure indicator lamp comes from the SAM control unit via CAN-B.
Washer fluid level indicator lamp
The washer fluid level indicator lamp lights up if the washer fluid level drops below the minimum level. The signal for actuating the bulb failure indicator lamp comes from the SAM control unit via CAN-B.
Alternator warning lamp
The alternator warning lamp lights up if there is a fault in the battery and alternator system.
The signal for actuating the alternator warning lamp comes from the SAM control unit via CAN-B.
Door indicator lamp
The door indicator lamp lights up if one of the vehicle doors is not closed and the vehicle is moving at walking pace.
Coolant temperature warning lamp
The coolant temperature warning lamp lights up if the coolant temperature enters the range which is critical for the engine. The signal for actuating the coolant temperature warning lamp comes from the ME-SFI [ME] control unit, the CDI control unit (N3/20) or the CDI control unit (N3/21) via CAN-C.
Brake fluid level warning lamp
If the brake fluid level falls below the minimum level, the brake fluid level warning lamp is actuated. The actuating signal comes from the SAM control unit via CAN-B.
SRS warning lamp
The SRS warning lamp is actuated if there is a fault in the supplemental restraint system (SRS). The signal for actuating the SRS warning lamp comes from the lowline airbag control unit or the highline airbag control unit via CAN-B.
Fuel reserve/tank cap indicator lamp
The fuel reserve indicator lamp is actuated as soon as the reserve range is reached or if the tank cap is not locked. Its actuation is linked to the fuel level and reserve indicator.
There are various versions of the instrument cluster which depend on the vehicle equipment, equipment lines and engine type.
