Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Dashboard / Instrument Panel
>>
Service and Repair
>>

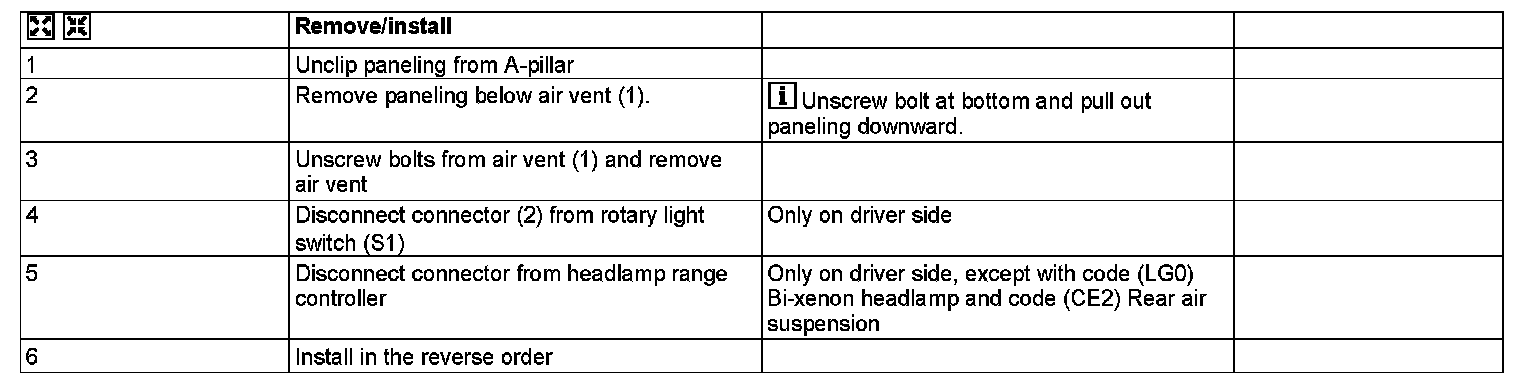

AR68.10-D-1100A Remove/Install Side Air Vent
AR68.10-D-1100A Remove/Install Side Air Vent
AR68.10-D-1100A Remove/Install Side Air Vent
1
Air vent
2
Connector
S1
Exterior lamp switch
