AZ83.30-D-0001B Retrofit Air Conditioning

AZ83.30-D-0001B Retrofit Air Conditioning
- MODEL 906.### #N as of 315764, 906.### #S as of 105757, 906.### #A as of 961268








1 Evaporator
2 Expansion valve
3 Refrigerant line (pressure side)
4 Refrigerant line (intake side)
5 Capacitor
6 Drier
A9 Refrigerant compressor



























000 589 54 37 00, Clamping device







285 589 00 21 00, Vacuum-type cooling system filler

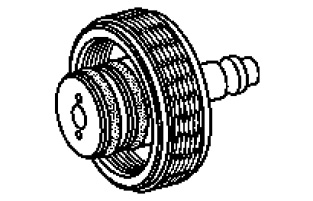

639 589 00 91 00, Tester cap
