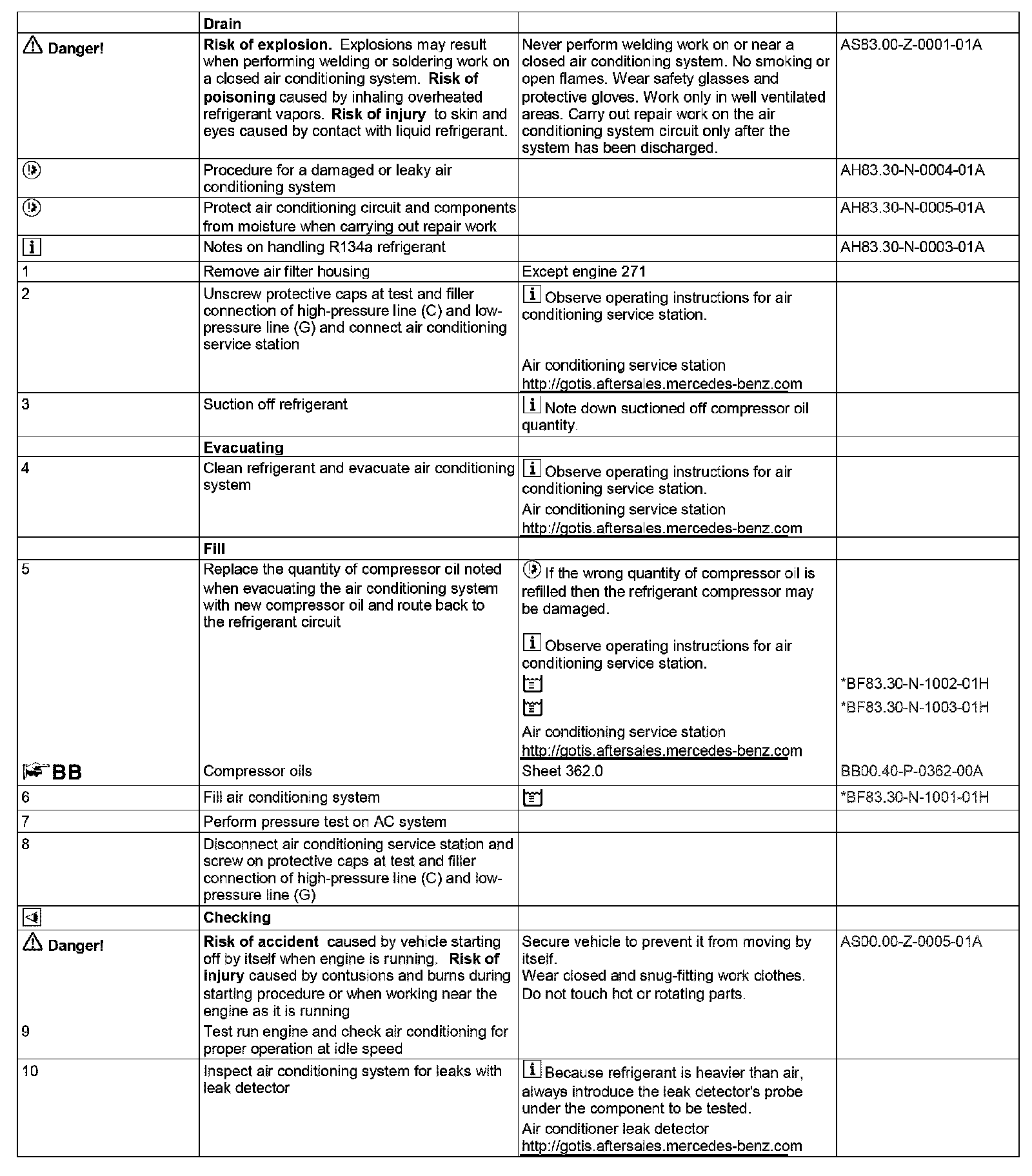

AR83.30-D-1760D Drain, Evacuate and Refill Air Conditioning, Check Function and Check For Leaks

AR83.30-D-1760D Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks
MODEL 906
- with CODE (HH9) "Tempmatic" regulated air conditioning

MODEL 906.6 /7
- with CODE (HH7) Additional air conditioning in rear

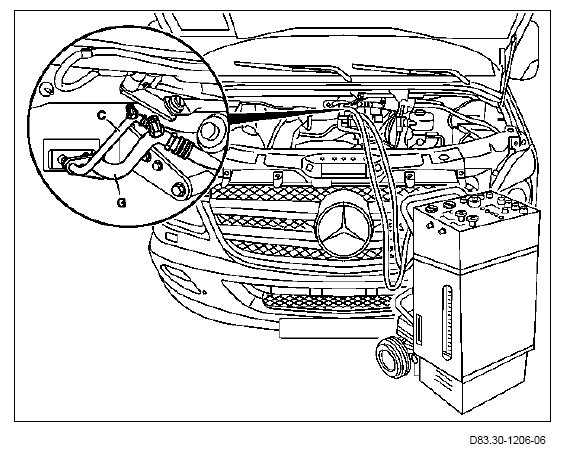

C High pressure pipe
G Low pressure pipe
