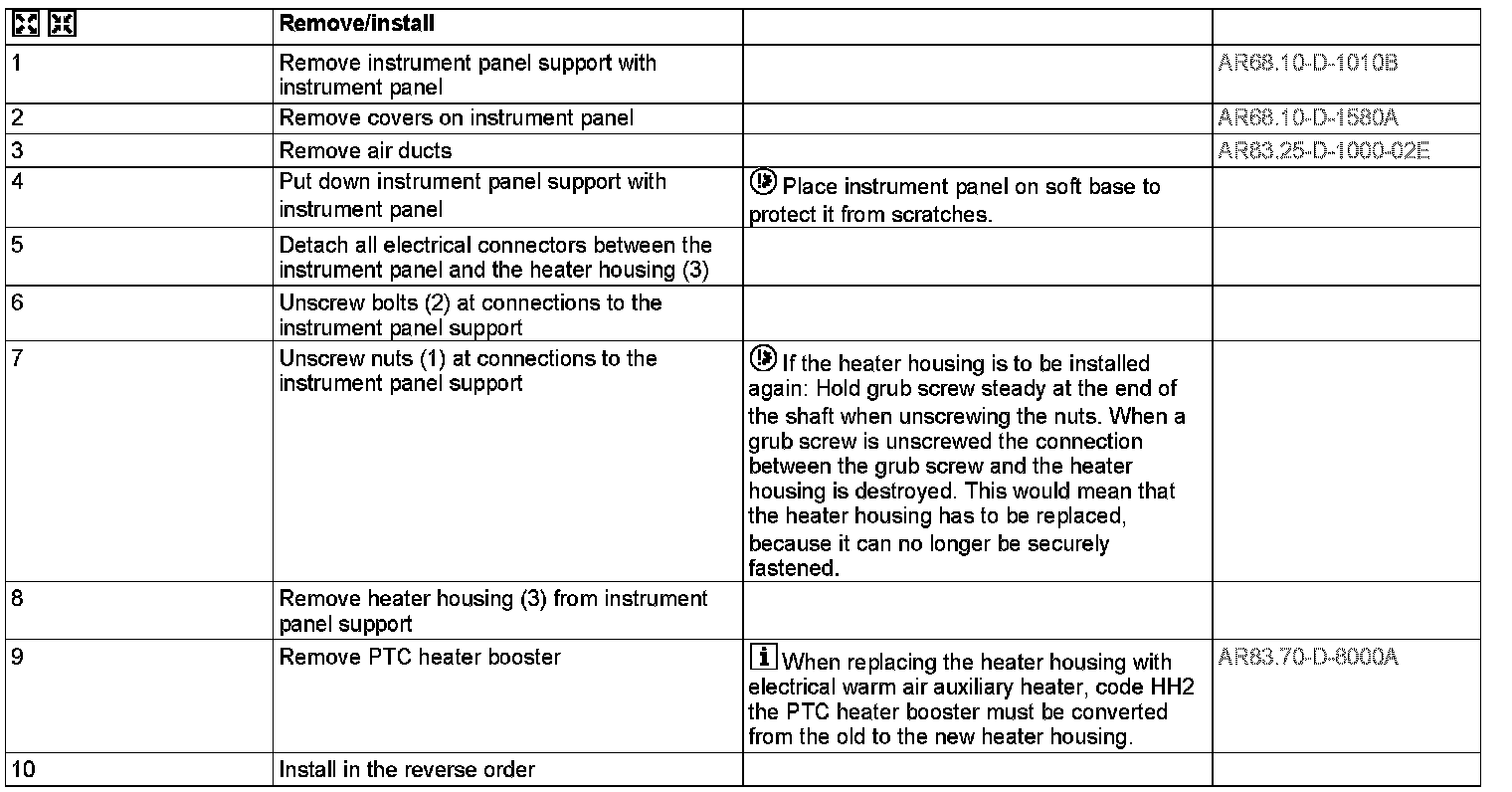

AR83.25-D-1000E Remove/Install Heater Housing
AR83.25-D-1000E Remove/Install Heater Housing
AR83.25-D-1000E Remove/Install Heater Housing

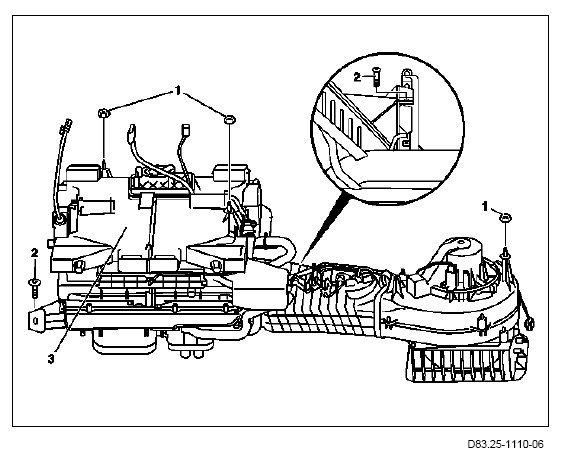

1
Nuts
2
Bolt
3
Heater housing
