GF83.70-D-0006-05HL Stationary Heater (STH) Setting Switch-on Times and Activation Via Instrument Cluster

GF83.70-D-0006-05HL Stationary Heater (STH) Setting Switch-on Times And Activation Via Instrument Cluster
- with CODE (H12) Warm water auxiliary heater


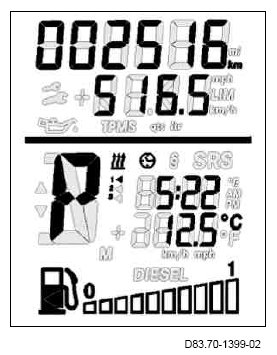

"Stationary heater submenu"







Selection of the heater submenu
Function requirement: "circuit 15R ON".
When the warm water stationary heater switch (S46/11) or "M button" in the instrument cluster (A1) is pressed, the submenu item "Heater" is selected.
In the submenu item "Heater", the user can carry out the following settings using the "+ and - button" in the instrument cluster:
- "0", deactivate switch-on times
- "1", set and activate switch-on time 1
- "2", set and activate switch-on time 2
- "3", set and activate switch-on time 3

After exiting the "Heater" submenu with the "M button" or automatically after t = 10 s, the selected settings are stored.

The activation of the particular "Switch-on time" is indicated by the yellow light emitting diode (LED) in the warm water stationary heater switch going on.
The "Reset button (0)" in the instrument cluster can be used to select the setting of the "Switch-on time, hours", and when the "Reset button (0)" is pressed again on the instrument cluster, the setting of the "Switch-on time, minutes" is selected.







"Switch-on time, hours"
In the "Switch-on time, hours" menu, the user can adjust the hours of the particular selected switch-on time using the "+ and - button"" on the instrument cluster.







"Switch-on time, minutes"
In the "Switch-on time, minutes" menu, the user can adjust the minutes of the particular selected switch-on time using the "+ and - button" on the instrument cluster.
