GF83.57-D-2126H Evaporator Temperature Sensor, Component Description

GF83.57-D-2126H Evaporator Temperature Sensor, Component Description

- except CODE (HH9) Regulated air conditioning (Tempmatic)

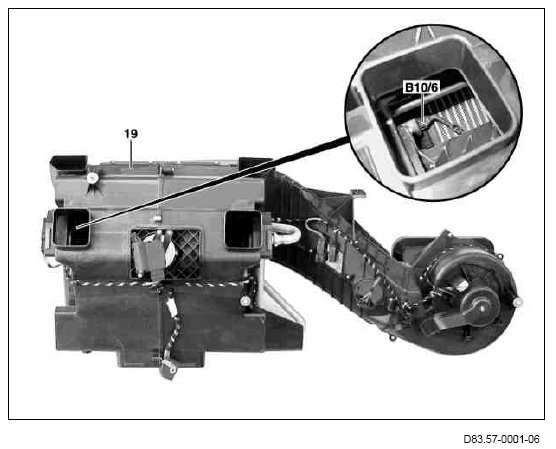

19 Front AC housing
B10/6 Evaporator temperature sensor

Location
The evaporator temperature sensor is located on the right side in the front AC housing in front of the front evaporator.

Task
The evaporator temperature sensor measures the temperature at the front evaporator and transmits this value to the AAC [KLA] control and operating unit (S98).

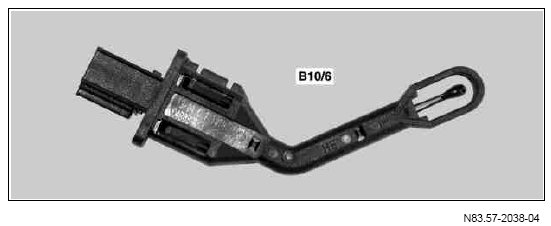

B10/6 Evaporator temperature sensor
