GF83.40-D-2193H Refrigerant Pressure Sensor, Component Description

GF83.40-D-2193H Refrigerant Pressure Sensor, Component Description

- except CODE (HH9) Regulated air conditioning (Tempmatic)

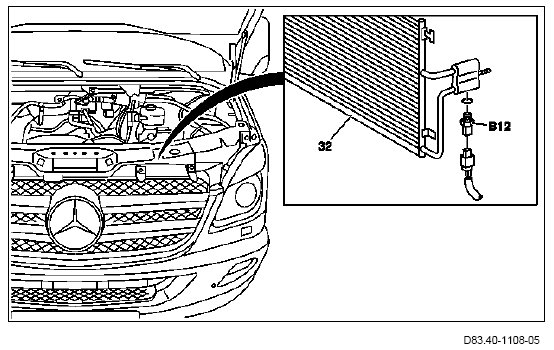

32 Front condenser
B12 Refrigerant pressure sensor

Location
The refrigerant pressure sensor is located on the top left of the front condenser. The refrigerant pressure sensor is screwed into the high pressure line (liquid).

Task
The refrigerant pressure sensor senses the refrigerant pressure and forwards the measured value as an electrical signal to the AAC [KLA] control and operating unit (S98).
