GF83.40-D-2191H Desiccant Cartridge, Component Description

GF83.40-D-2191H Desiccant Cartridge, Component Description

- except CODE (HH9) Regulated air conditioning (Tempmatic)

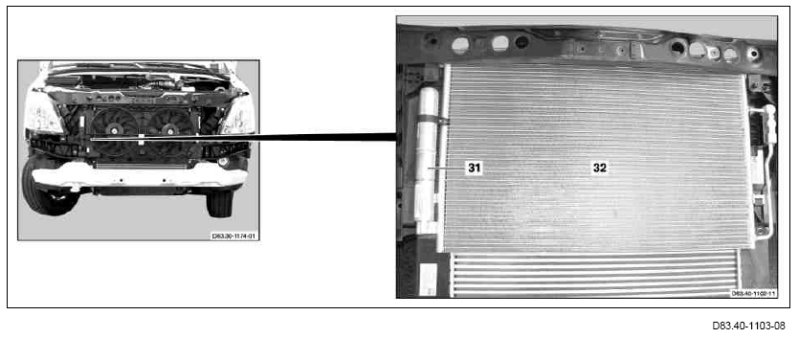

31 Front desiccant cartridge
32 Front condenser

Location
The front desiccant cartridge is located on the right side next to the radiator and the front condenser.

Task
Dirt and moisture are eliminated from the liquid refrigerant in the front desiccant cartridge. At the same time, the front desiccant cartridge is used as a reservoir to supply the air conditioning with a sufficient amount of refrigerant.
