GF83.10-D-4130H Particulate Filter Component Description

GF83.10-D-4130H Particulate Filter Component Description

- with CODE (H81) Ventilation system with filter


- except CODE (HH9) Regulated air conditioning (Tempmatic)

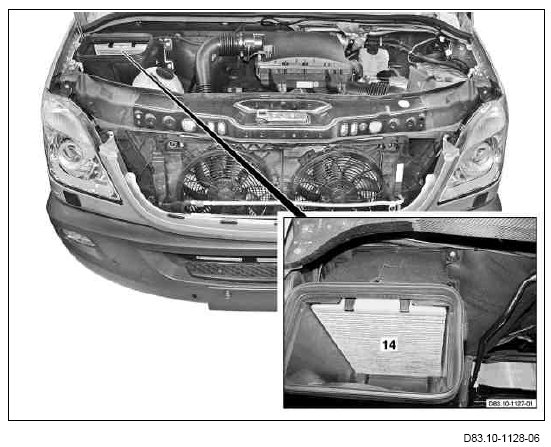

14 Particle filter

Location
The particulate filter in the blower intake box, which is located between the right air inlet in the engine hood and the front blower box, is located at the right in the engine compartment on the firewall.

Task
The particulate filter filters contamination, e.g. dust and pollen, from the aspirated air.
