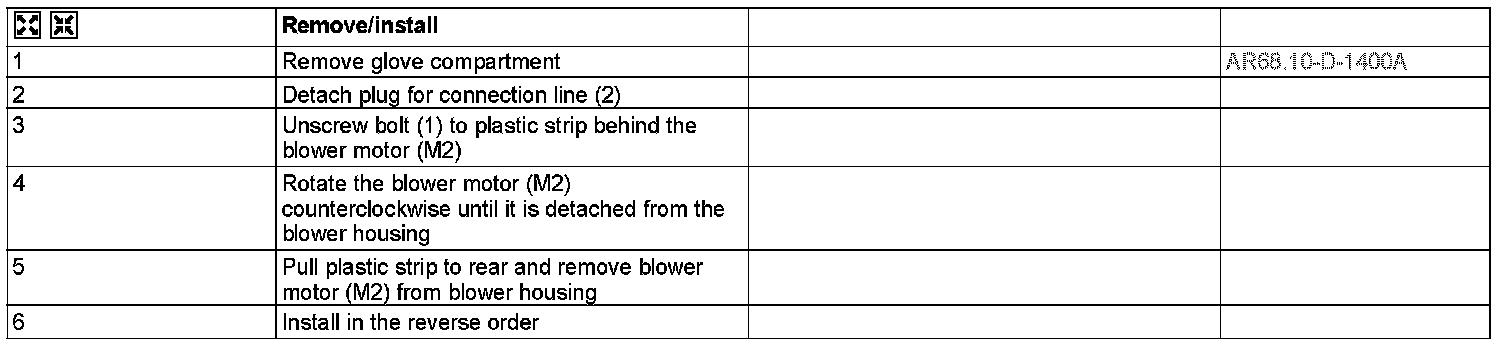

AR83.10-D-1100A Remove/Install Front Blower Motor
AR83.10-D-1100A Remove/Install Front Blower Motor
AR83.10-D-1100A Remove/Install Front
Blower Motor

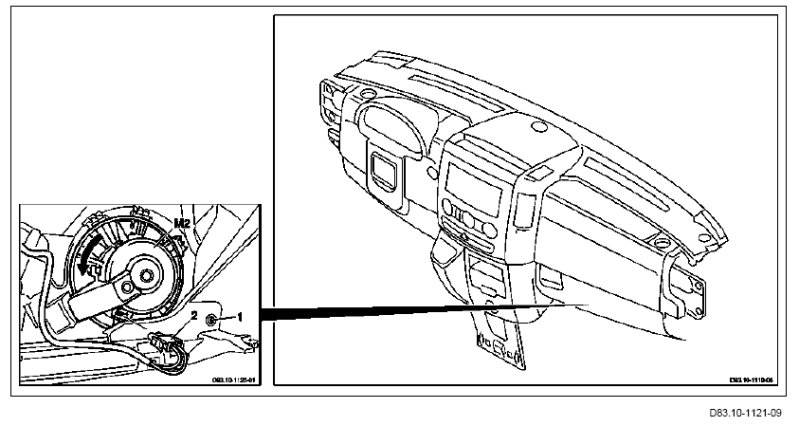

1
Bolt
2
Plug for connection line
M2
Blower motor
