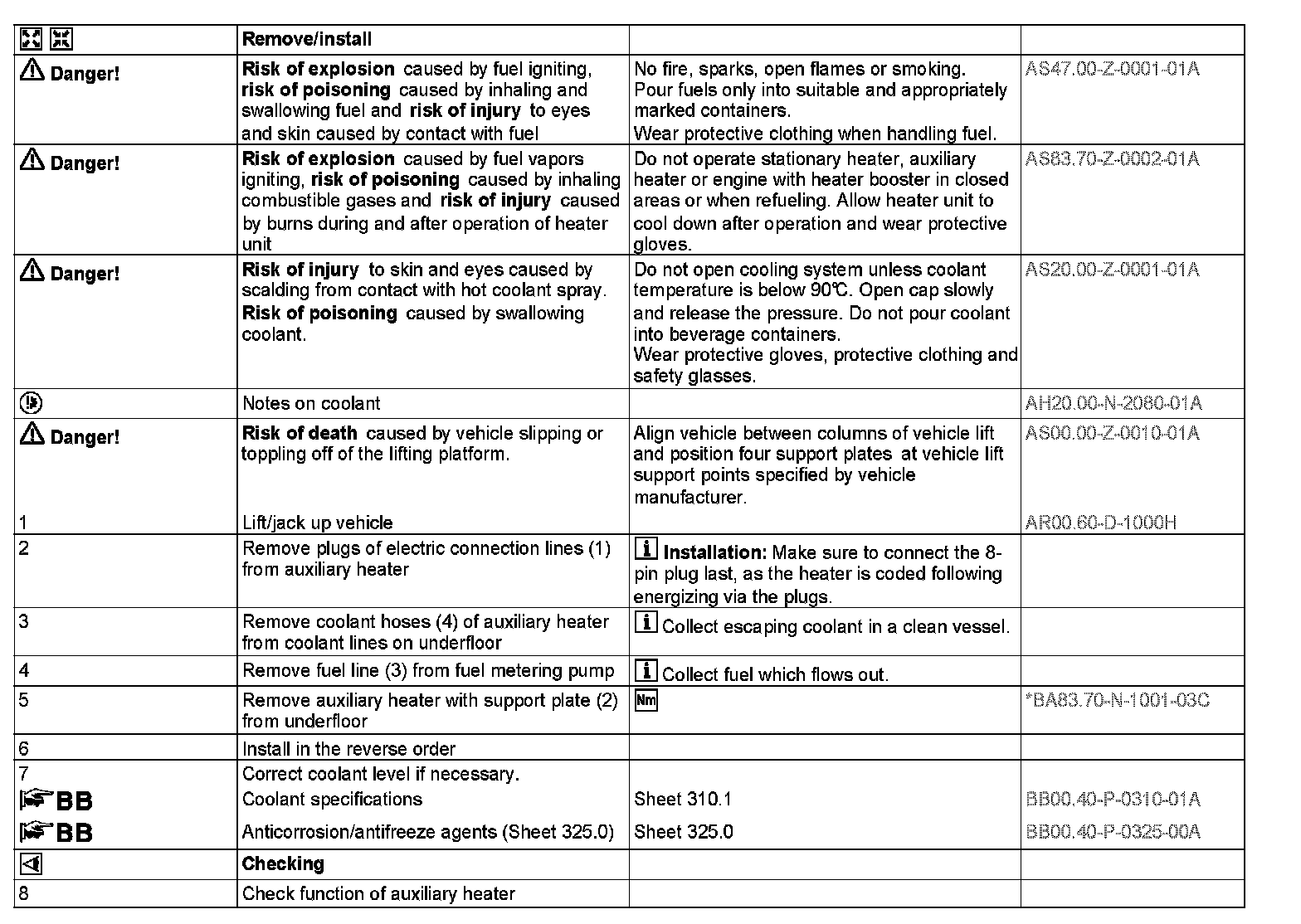

AR83.70-D-5945B Remove/Install Auxiliary Heater




AR83.70-D-5945B Remove/Install Auxiliary Heater

- with CODE (H12) Auxiliary heater (warm water)
- with CODE (HZ5) 10 kW warm water auxiliary heater with timer
- with CODE (HZ9) Heater booster, diesel

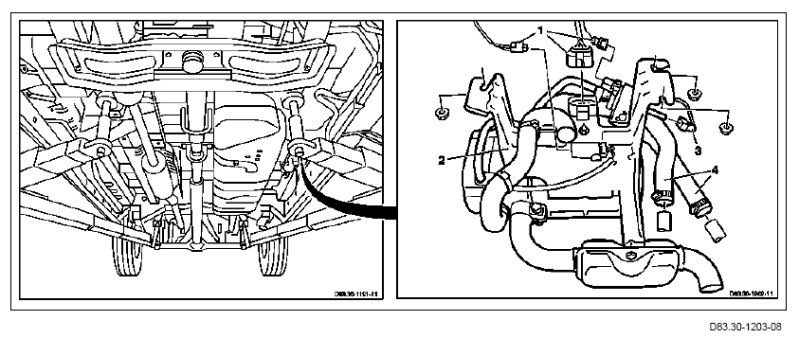

1 Plug of electric connection line

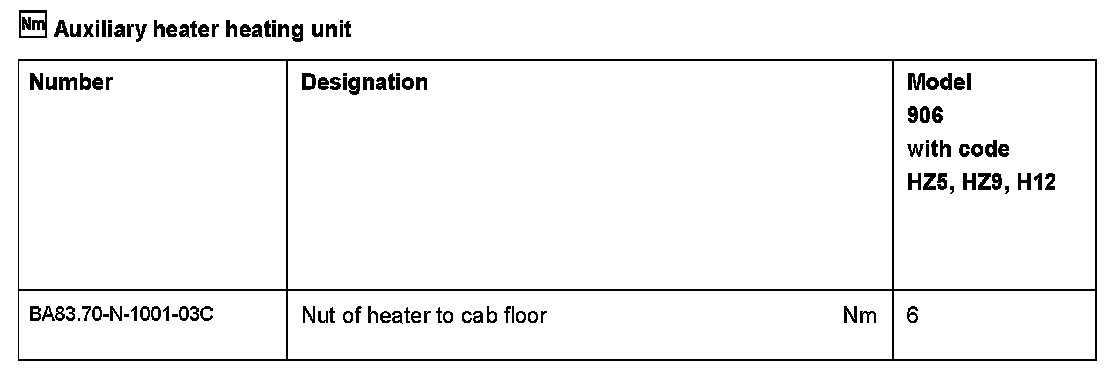

2 Auxiliary heater with support plate
3 Fuel pipe
4 Coolant hose
