AN83.70-D-0001S Retrofit Stationary Heater

AN83.70-D-0001S Retrofit Stationary Heater


Auxiliary heater (warm water) with a heater

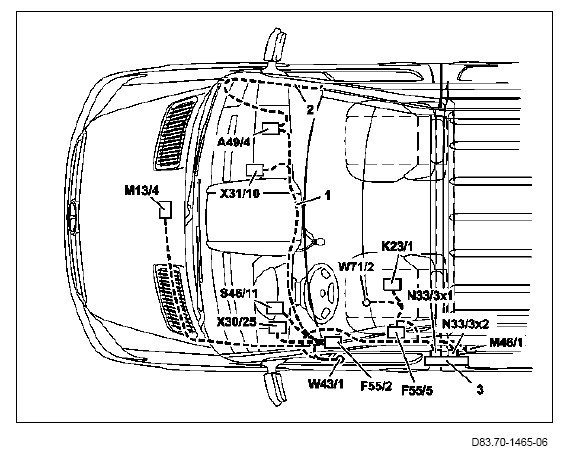

1 Stationary heater-unit wiring harness
2 Antenna line (with code (HY1) Radio remote control for auxiliary heater)
3 Heater unit
A49/4 Stationary heater radio signal receiver (with code (HY1) Radio remote control for auxiliary heater)
F55/2 Fuse block (9 fuses)
F55/5 Fuse block (9 fuses)
K23/1 Blower setting 1 fan relay (without code (HH9) Regulated air conditioning (Tempmatic))
M13/4 Circulation pump
M46/1 Metering pump
N33/3x1 Hot water auxiliary heater connector (8-pin)
N33/3x2 Hot water auxiliary heater connector (4-pin)
S46/11 Heater booster/stationary heater button
W43/1 Left firewall ground point
W71/2 Driver seat frame ground point 2
X30/25 Interior CAN bus connector

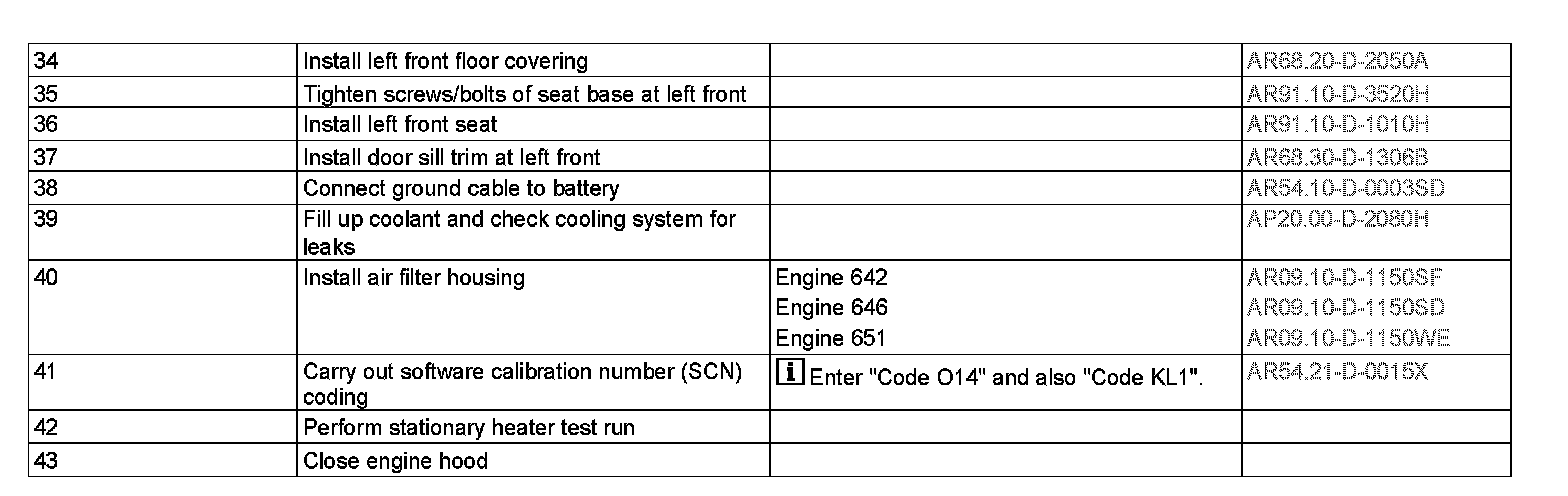

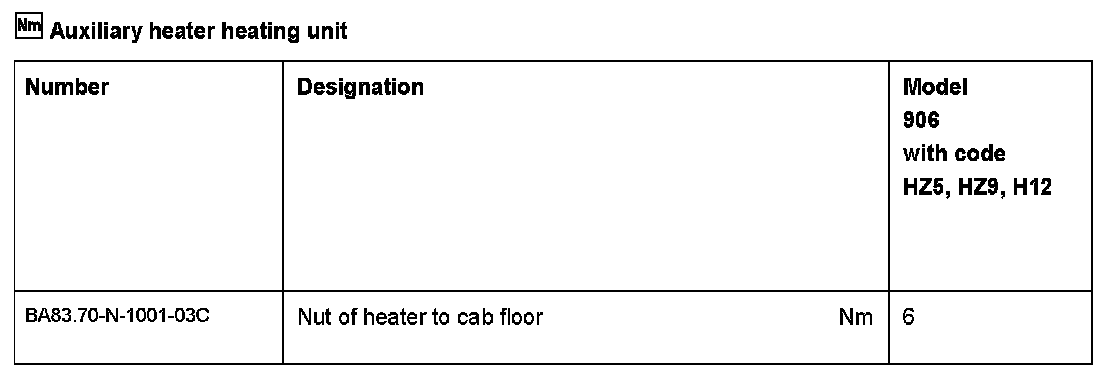

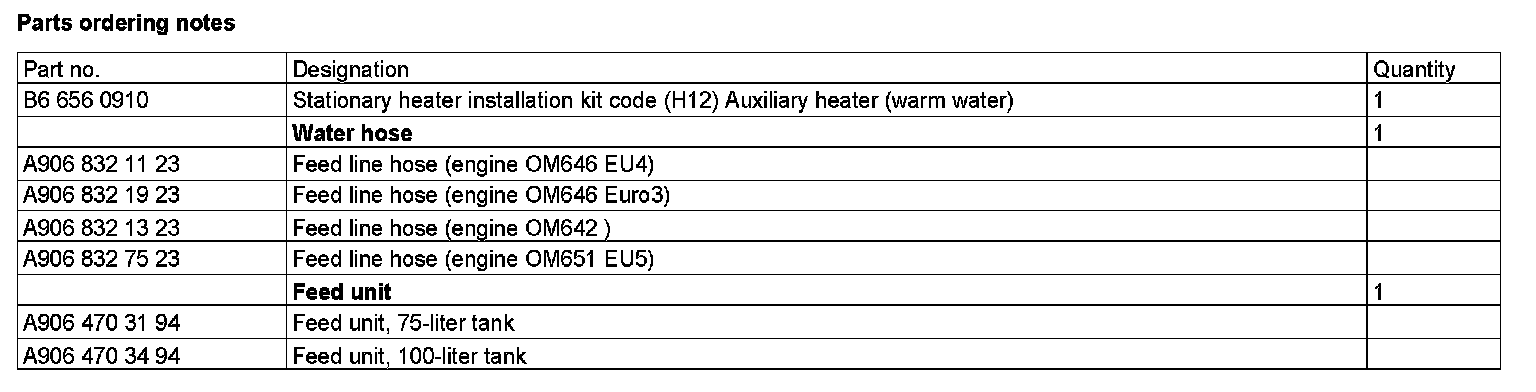

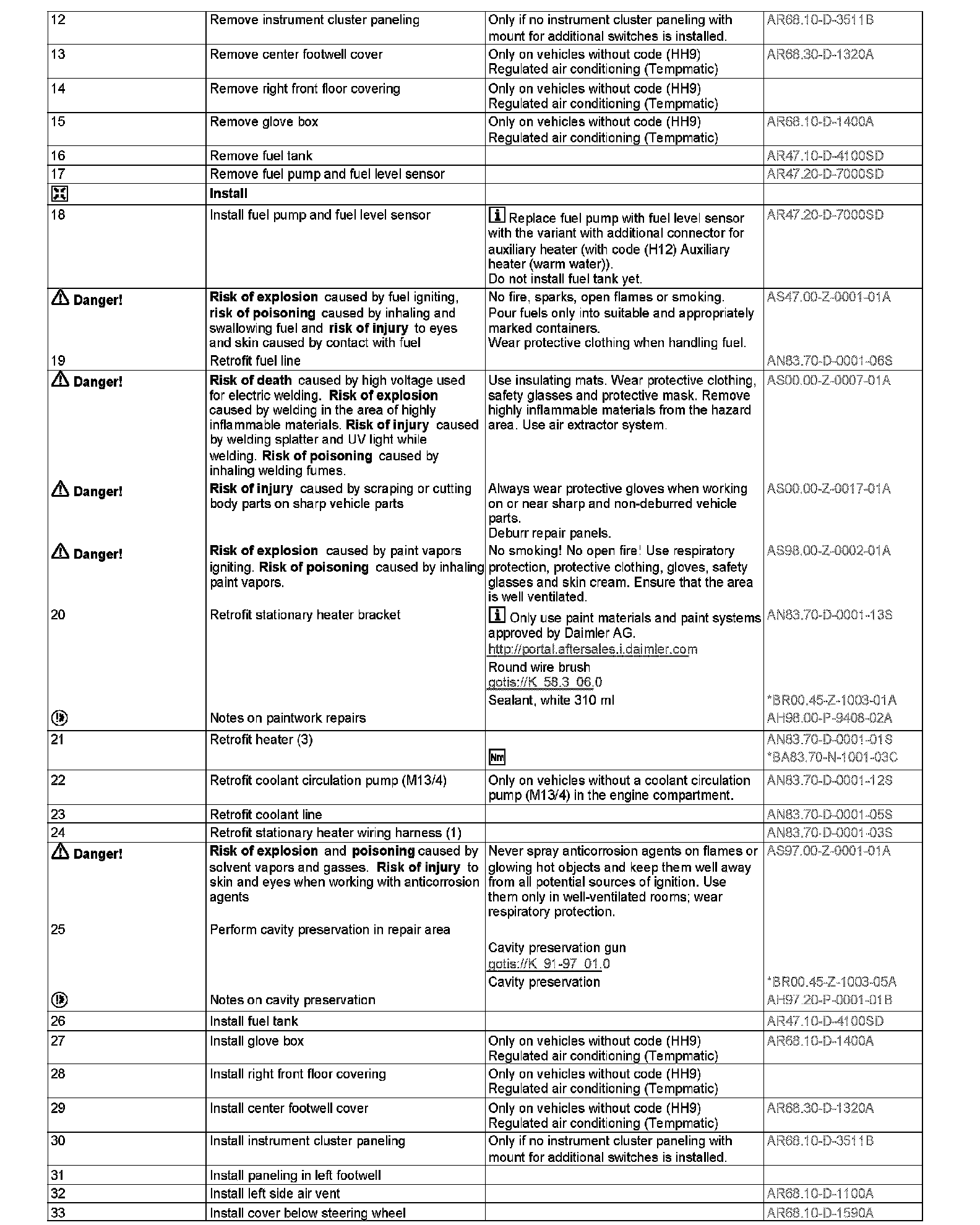

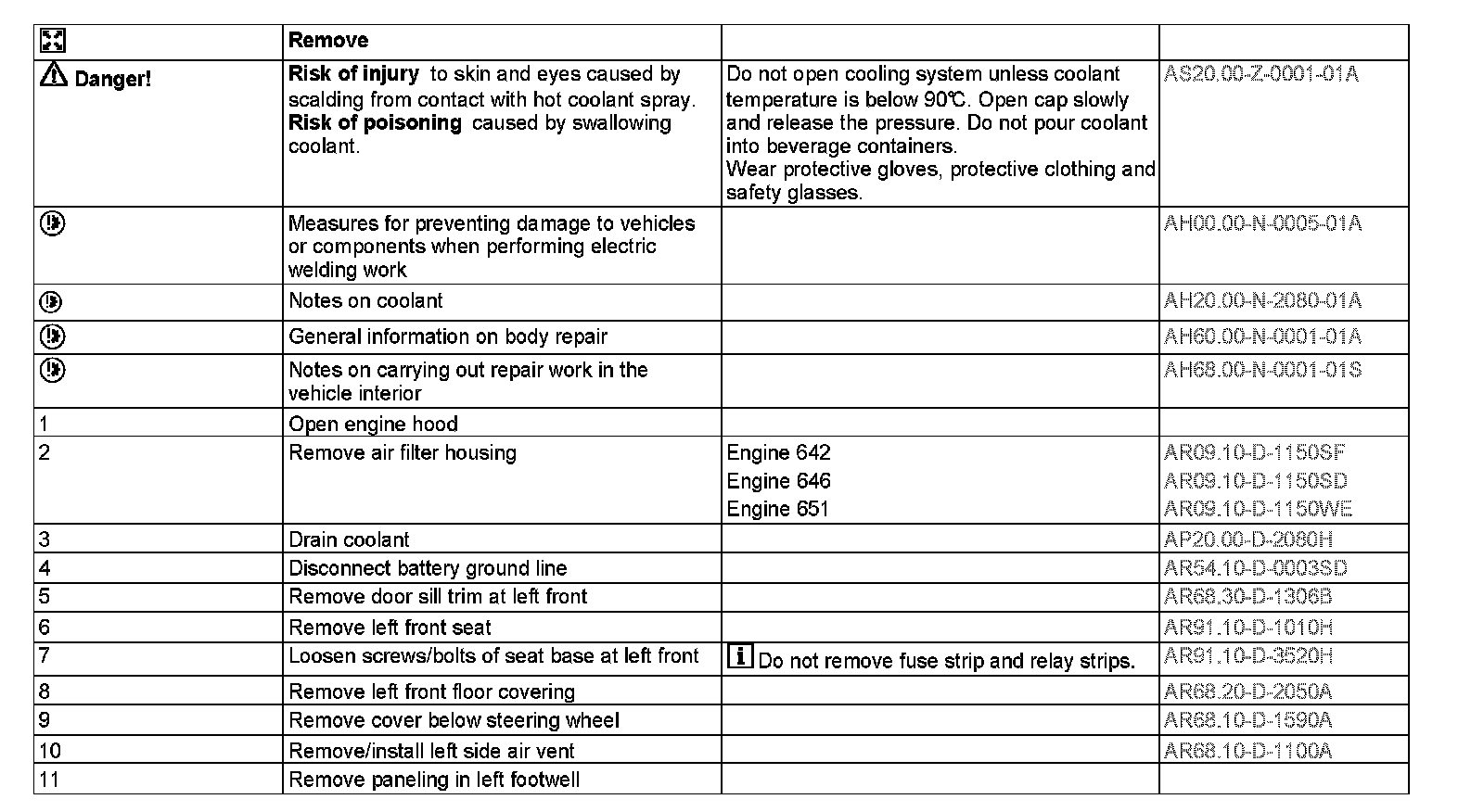

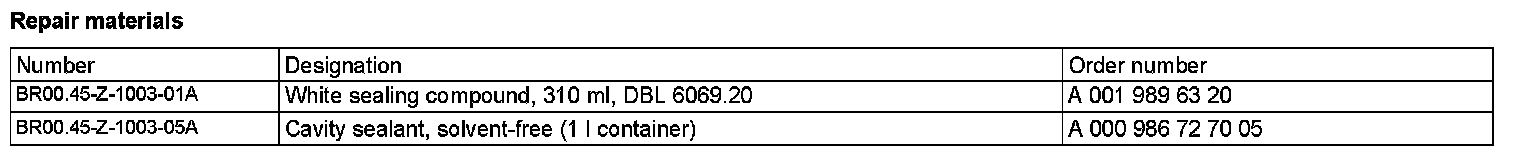

X31/10 Blower setting 1 connector (without code (HH9) Regulated air conditioning (Tempmatic))
