AN83.70-D-0001-06S Retrofit Fuel Line

AN83.70-D-0001-06S Retrofit Fuel Line

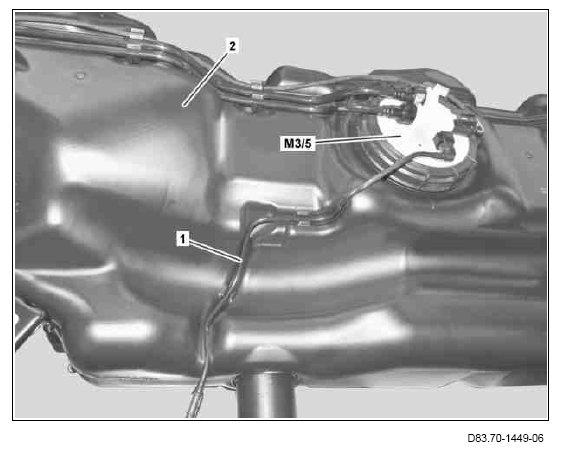

1 Connect fuel line (1) for auxiliary heater to fuel pump with fuel level sensor (M3/5).
2 Secure fuel line (1) for auxiliary heating on fuel tank (2).
