Removal and Replacement

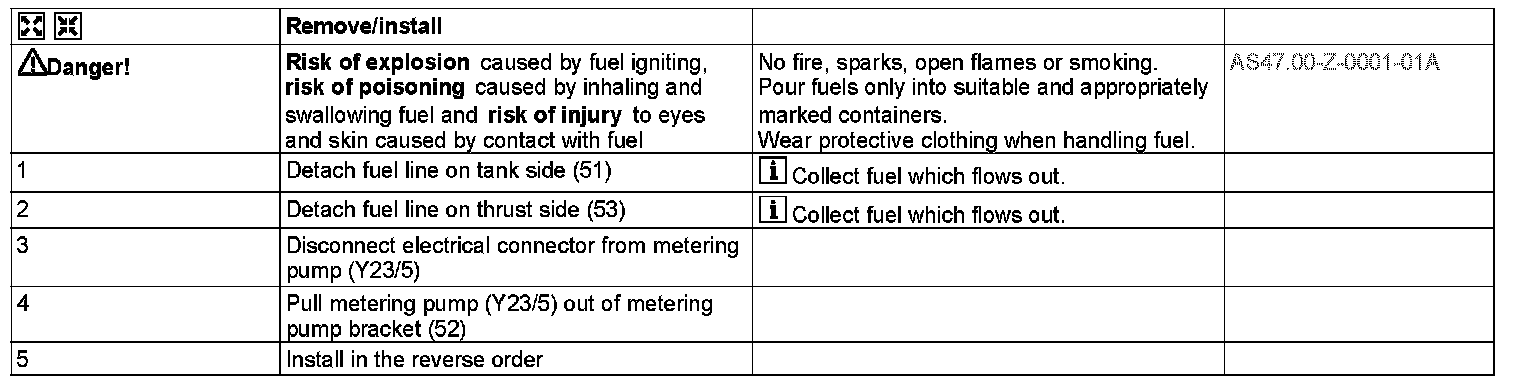

AR83.70-D-5652H Remove/Install Fuel Metering Pump

- with CODE (H11) Warm air auxiliary heater

Heater unit AIRTRONIC D2

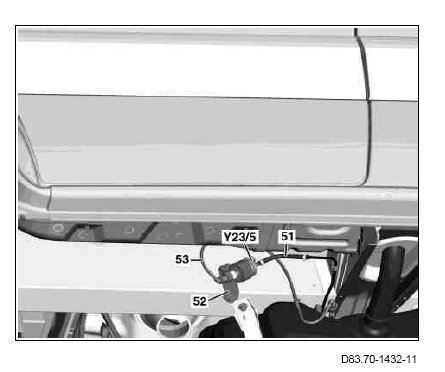

51 Fuel line on tank side
52 Metering pump bracket
53 Fuel line, thrust side
Y23/5 Metering pump
