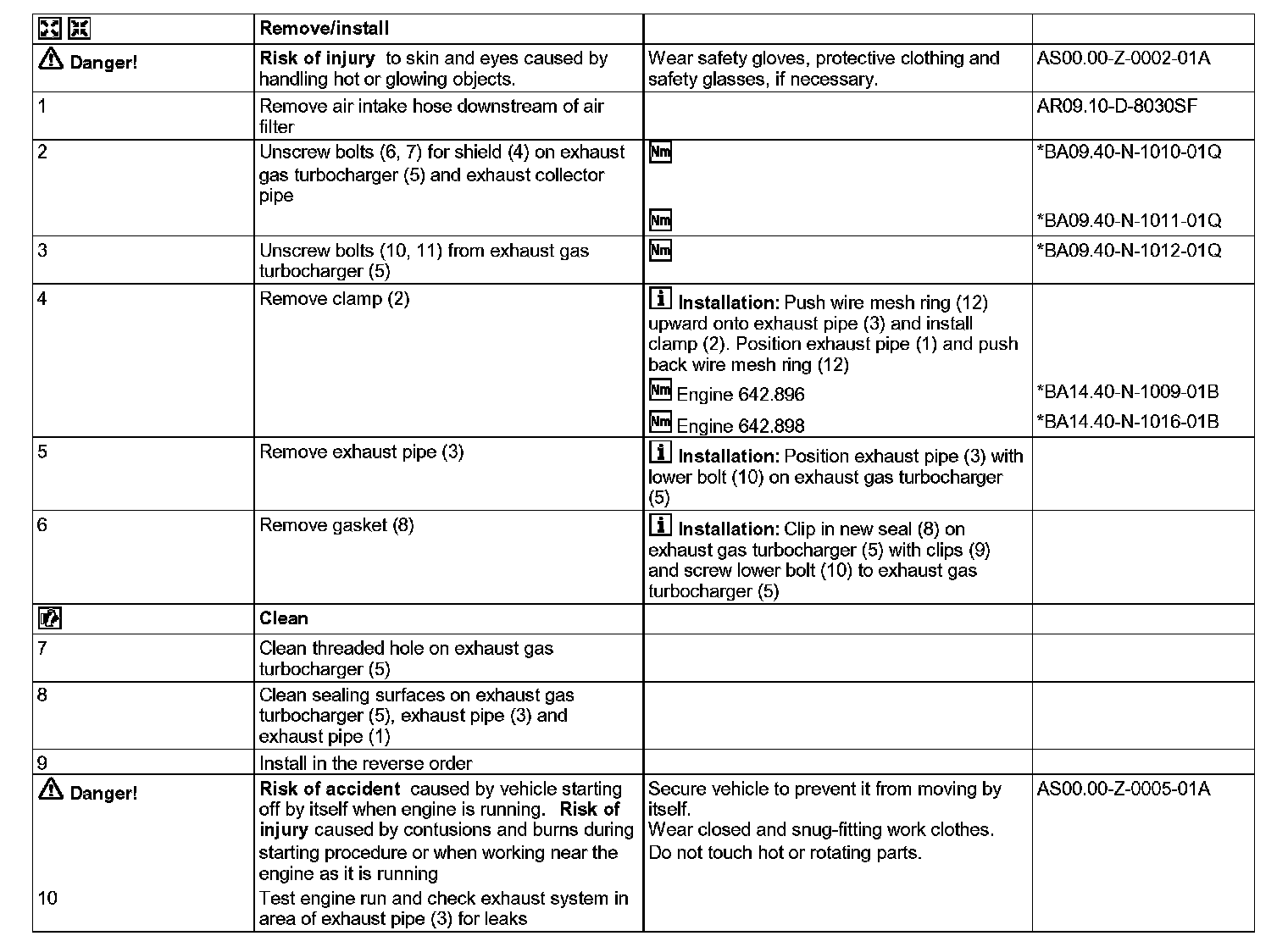

AR49.10-D-5529SG Remove, Install Exhaust Pipe Between Catalytic Converter and Turbocharger

AR49.10-D-5529SG Remove, Install Exhaust Pipe Between Catalytic Converter and Turbocharger

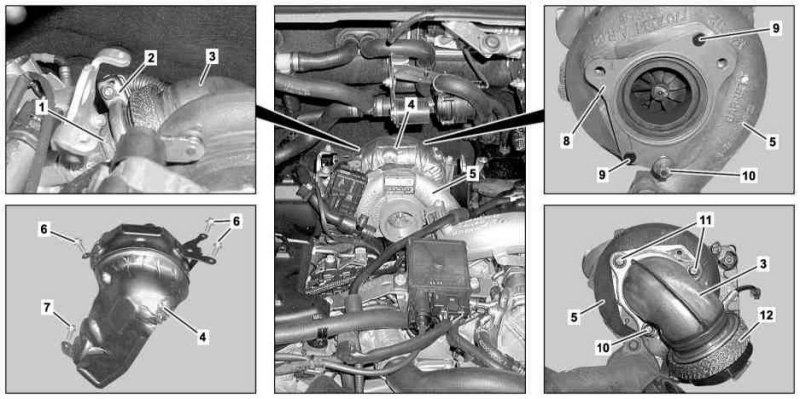

1 Exhaust pipe
2 Clip
3 Exhaust pipe
4 Shield
5 Turbocharger
6 Bolts
7 Screw
8 Gasket
9 Clip
10 Screw
11 Bolts
12 Wire mesh ring
