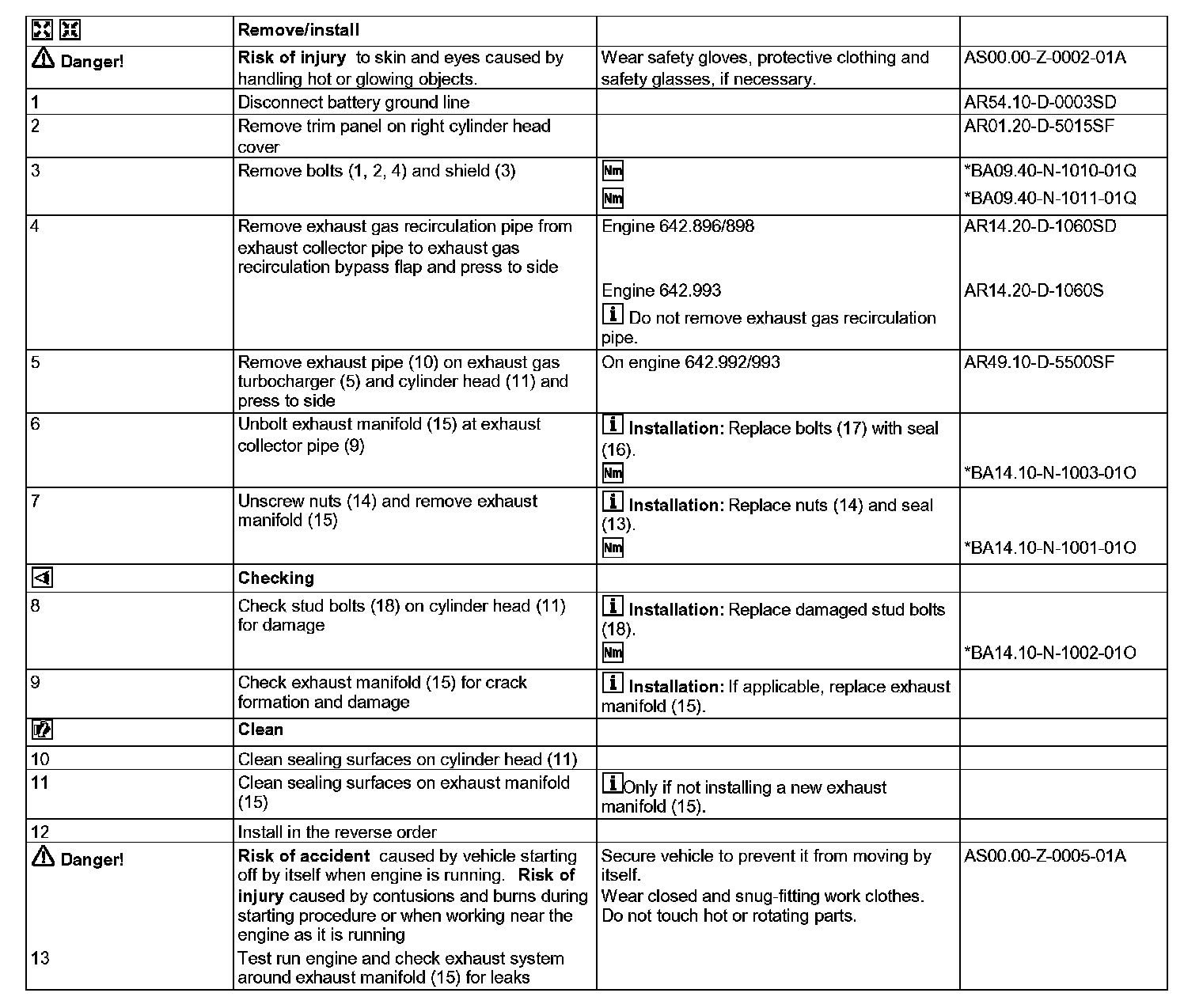

AR14.10-D-4005SF Remove/Install Exhaust Manifold on Right

AR14.10-D-4005SF Remove/Install Exhaust Manifold on Right






Shown on engine 642.992

1 Screw
2 Screw
3 Shield
4 Bolts
5 Turbocharger
9 Exhaust collector pipe
10 Exhaust pipe
11 Cylinder head





11 Cylinder head
13 Gasket
14 Nut
15 Exhaust manifold
16 Gasket
17 Screw
18 Stud bolt
