AR01.00-D-1200SF Test Compression Pressure

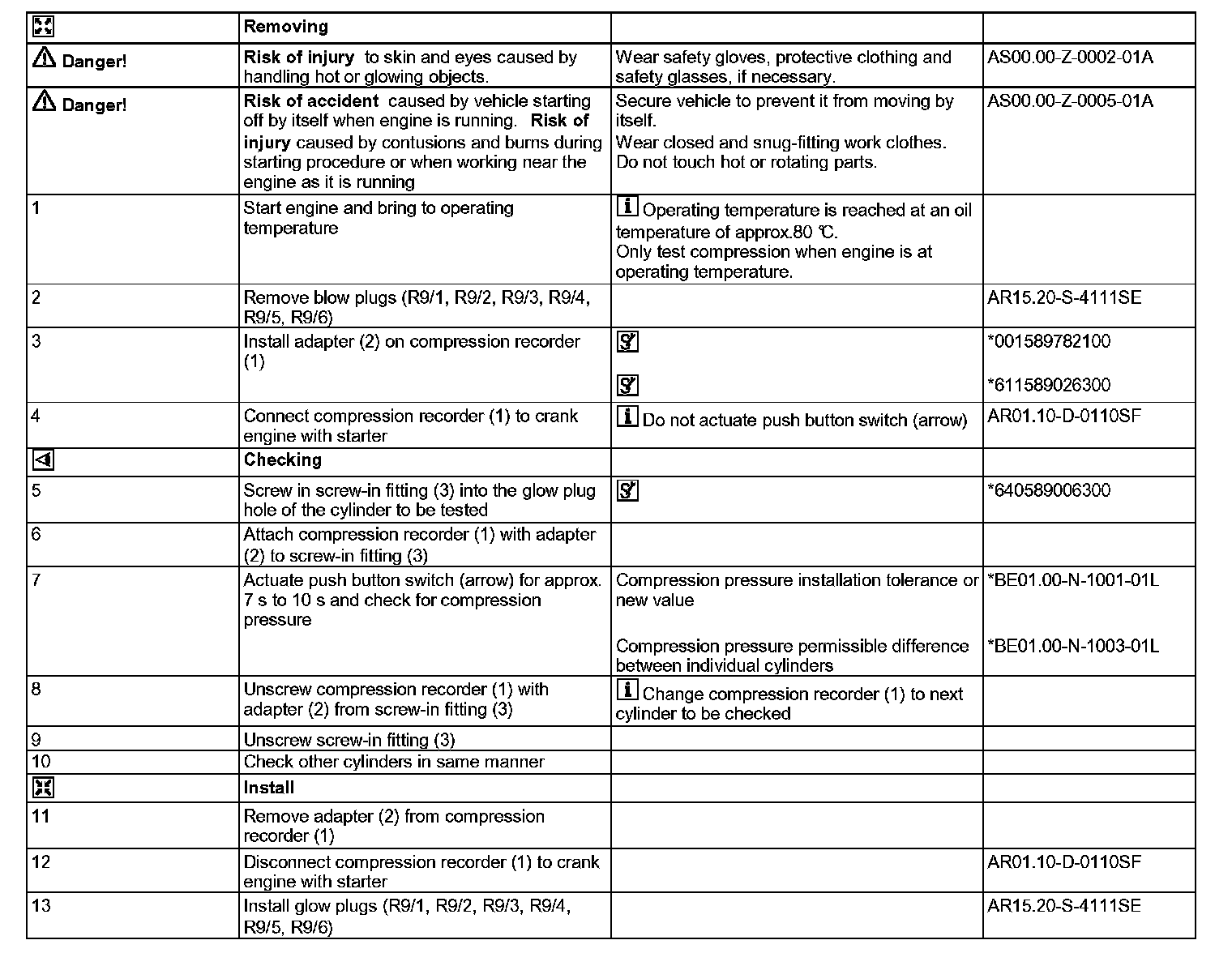

AR01.00-D-1200SF Test Compression Pressure

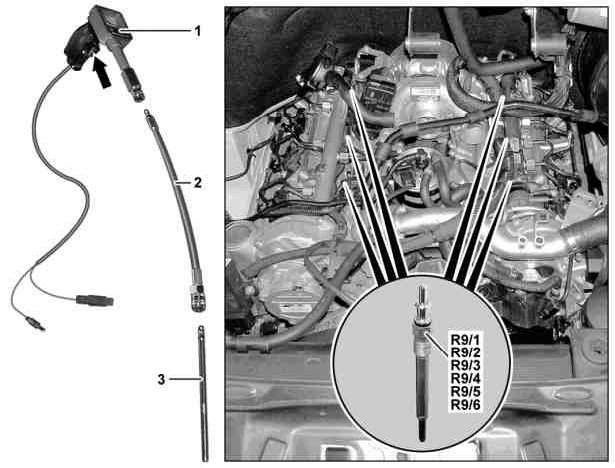

1 Compression recorder
2 Intermediate piece
3 Screw-in fitting

R9/1 Cylinder 1 glow plug
R9/2 Cylinder 2 glow plug
R9/3 Cylinder 3 glow plug
R9/4 Cylinder 4 glow plug
R9/5 Cylinder 5 glow plug
R9/6 Cylinder 6 glow plug














001 589 78 21 00
Compression tester





611 589 02 63 00
Intermediate piece





640 589 00 63 00
Screw-in fitting
