Timing Chain: Testing and Inspection

AR05.10-D-7600SF Check Timing Chain

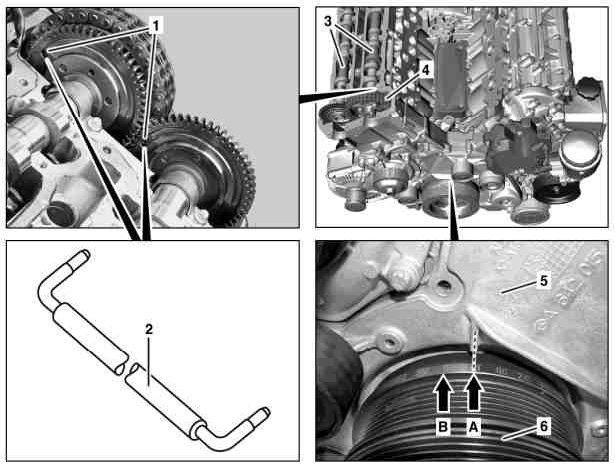

1 Holes
2 Retaining pin
3 Camshafts
4 Timing chain
5 Timing case cover
6 Vibration damper

Arrow A TDC marking
Arrow B 11° after top dead center marking








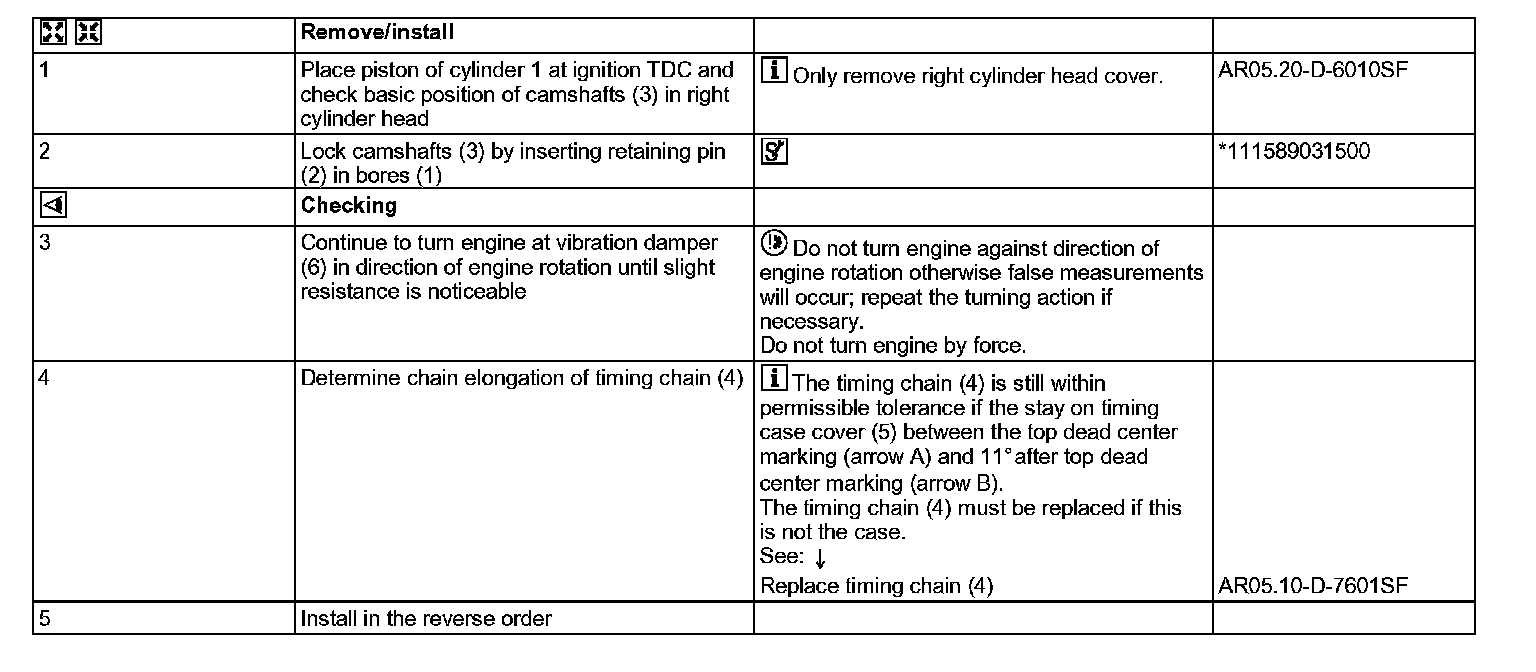

111 589 03 15 00
Retaining pins
