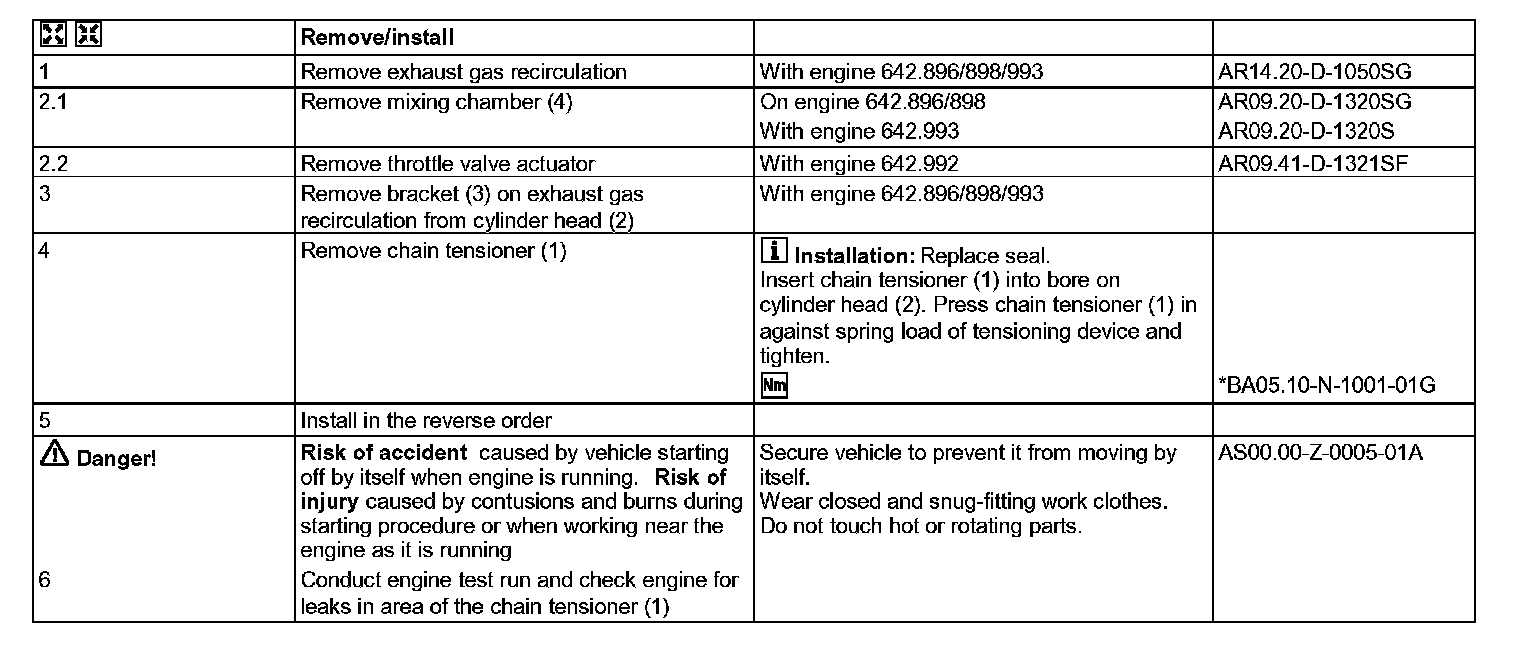

AR05.10-D-7800SF Remove/Install Chain Tensioner




AR05.10-D-7800SF Remove/Install Chain Tensioner

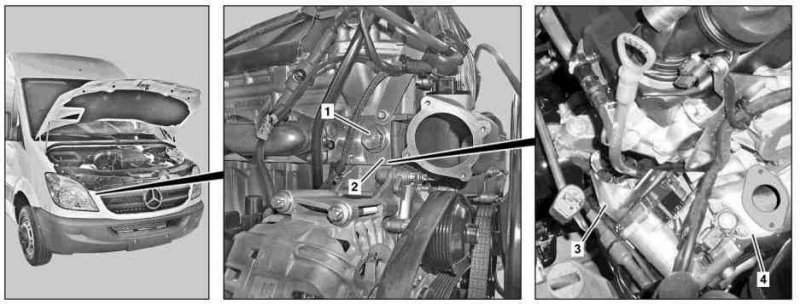

1 Chain tensioner
2 Cylinder head
3 Mount (engine 642.896/898/993)
4 Mixing chamber (engine 642.896/898/993)
