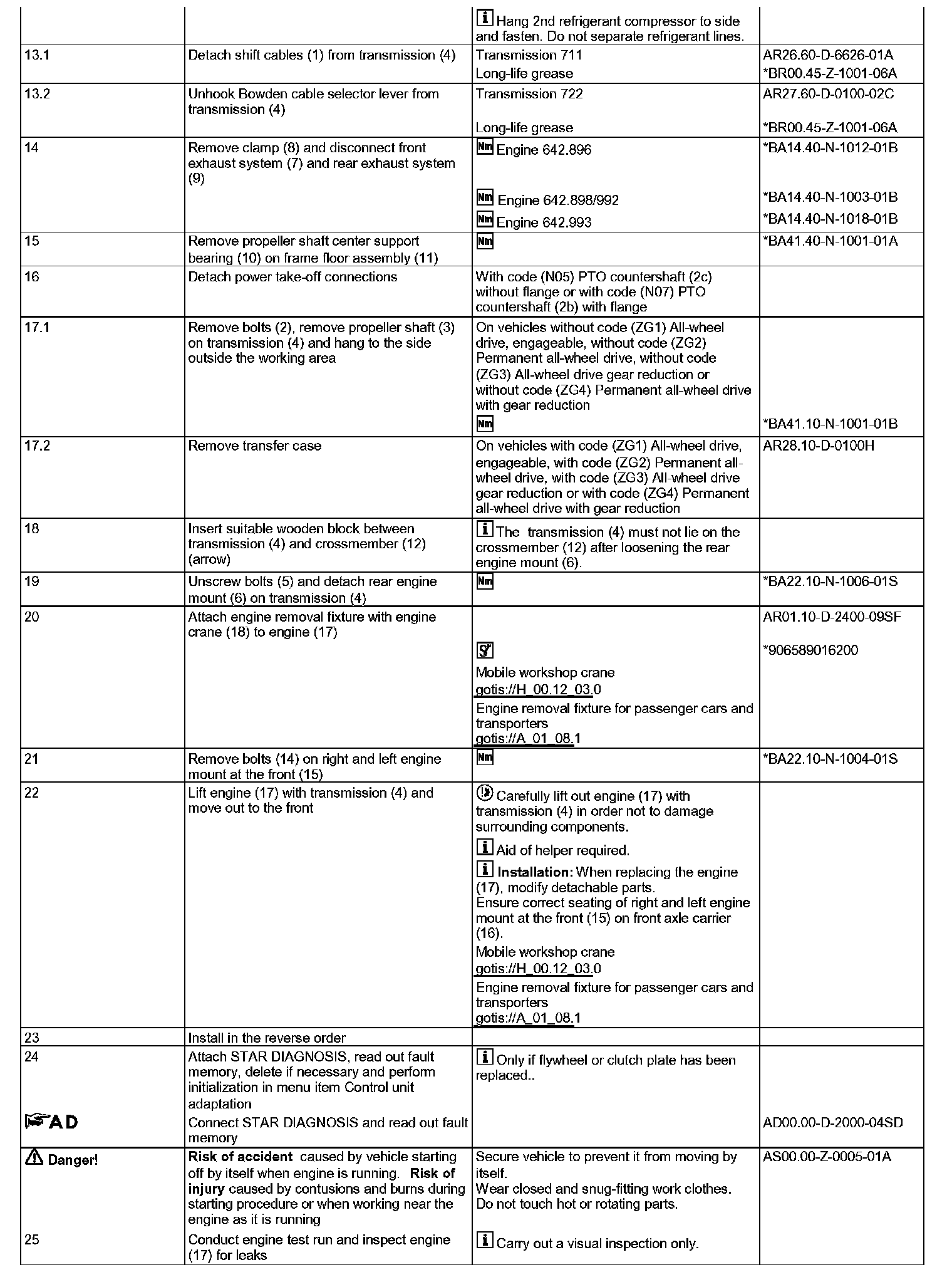

AR01.10-D-2401SF Remove/Install Engine With Transmission




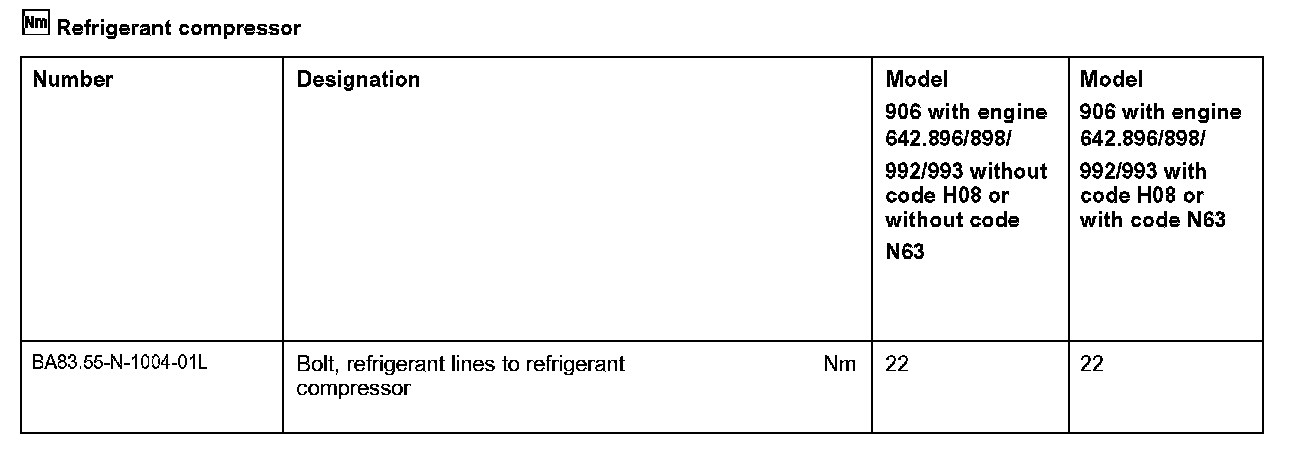

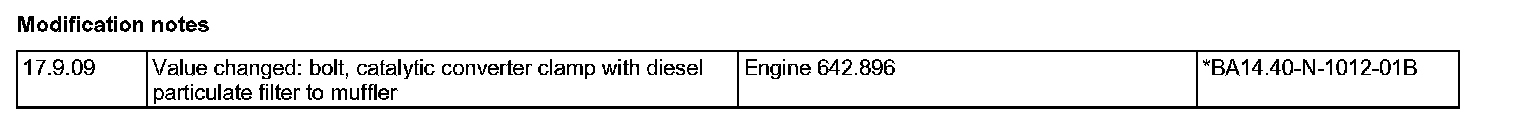

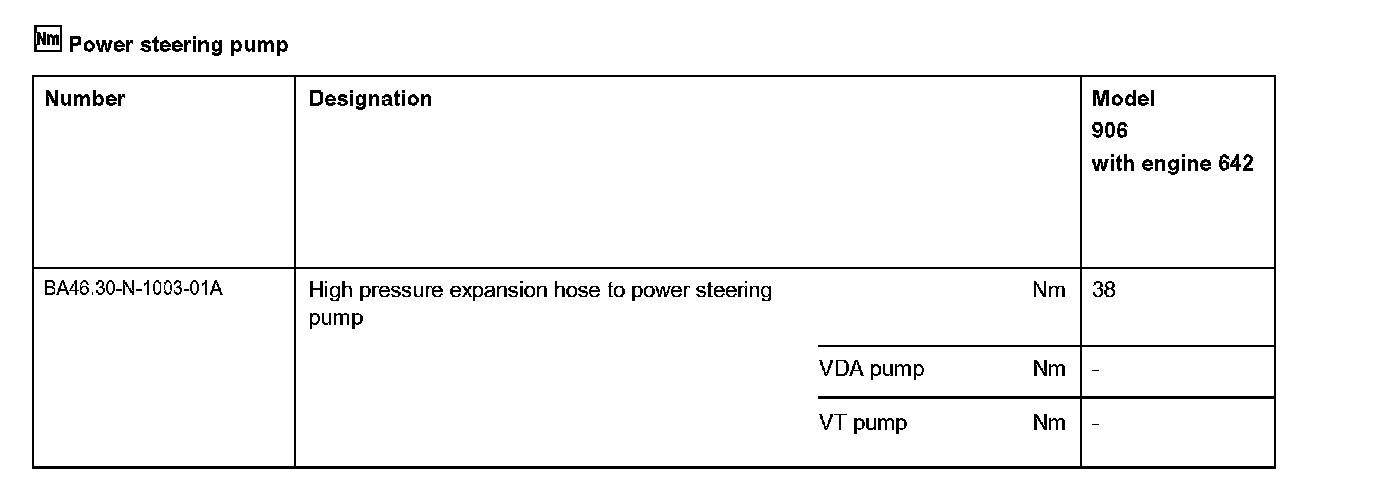

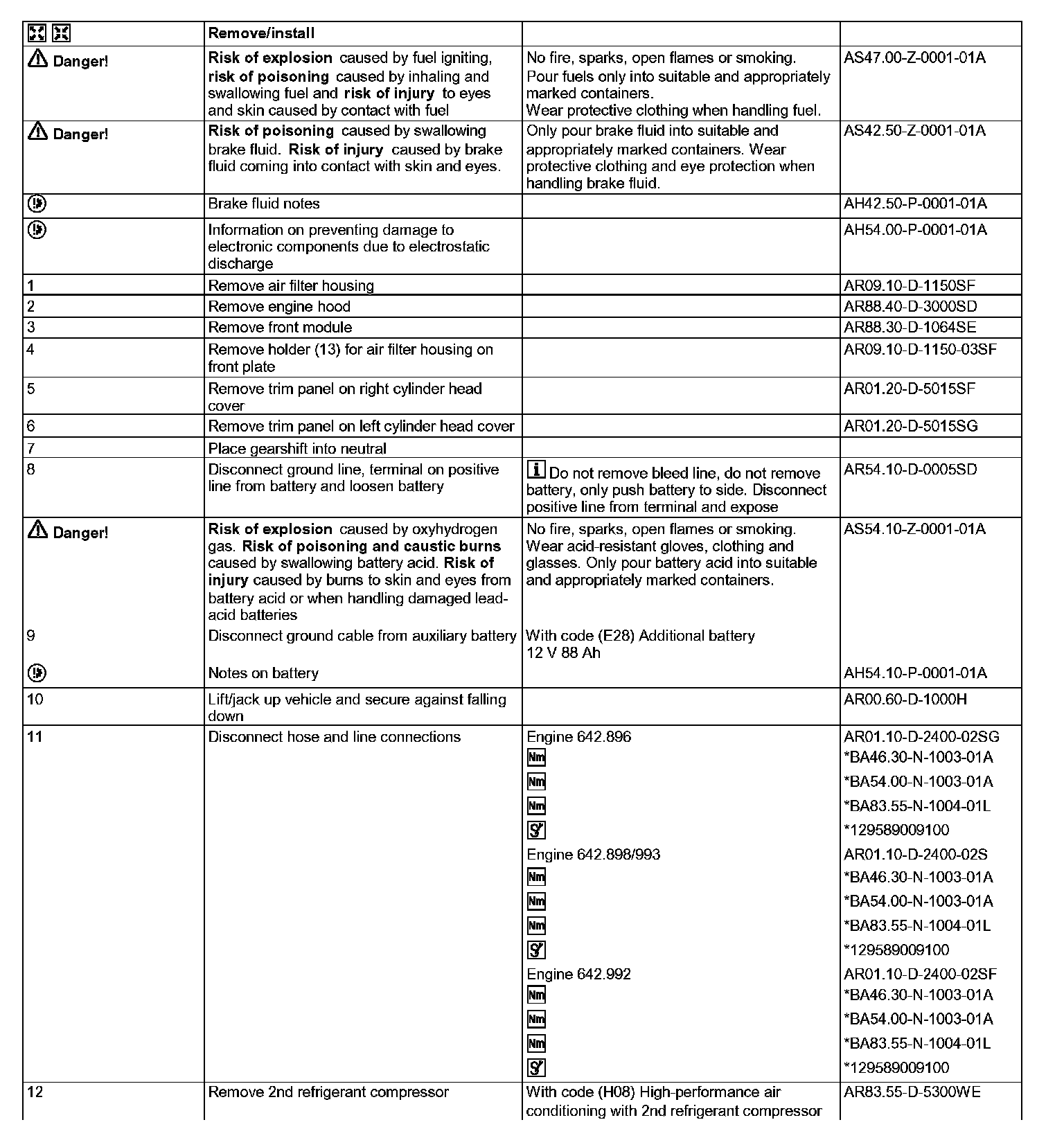

AR01.10-D-2401SF Remove/Install Engine With Transmission

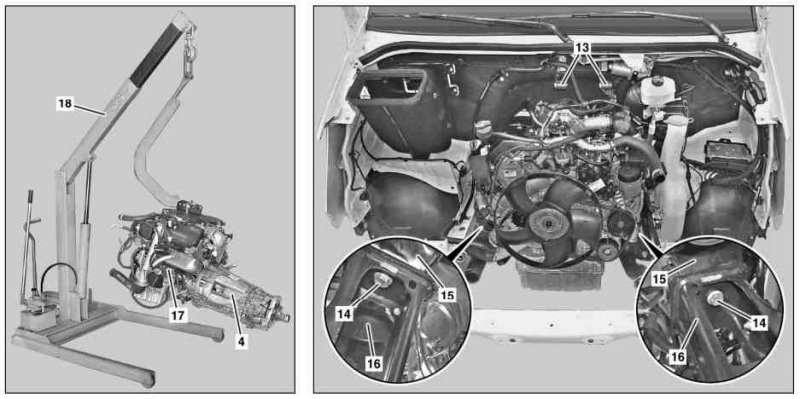

Shown on engine 642.992 with transmission 711.660

1 Shift cables (transmission (711)
2 Screw

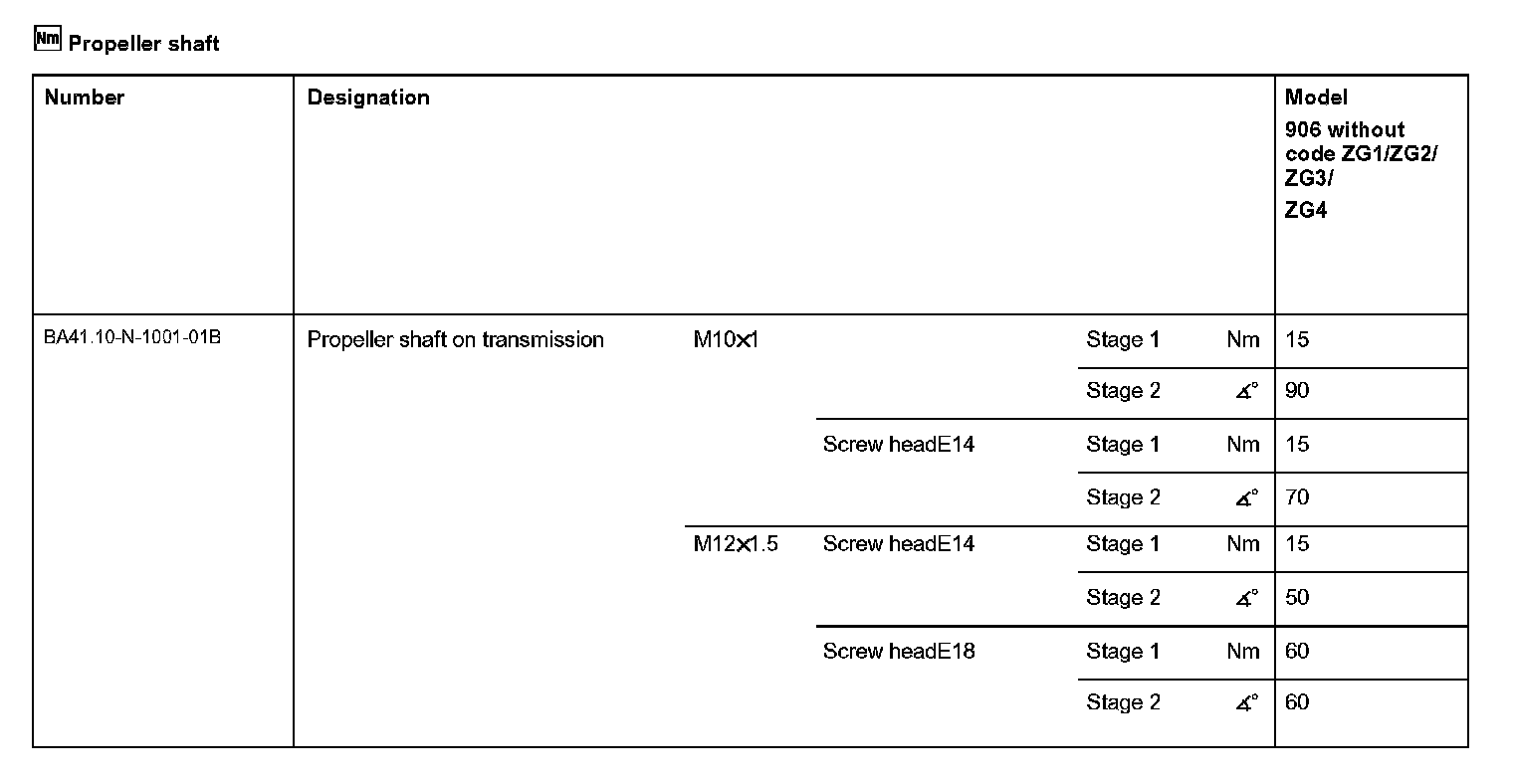

3 Propeller shaft

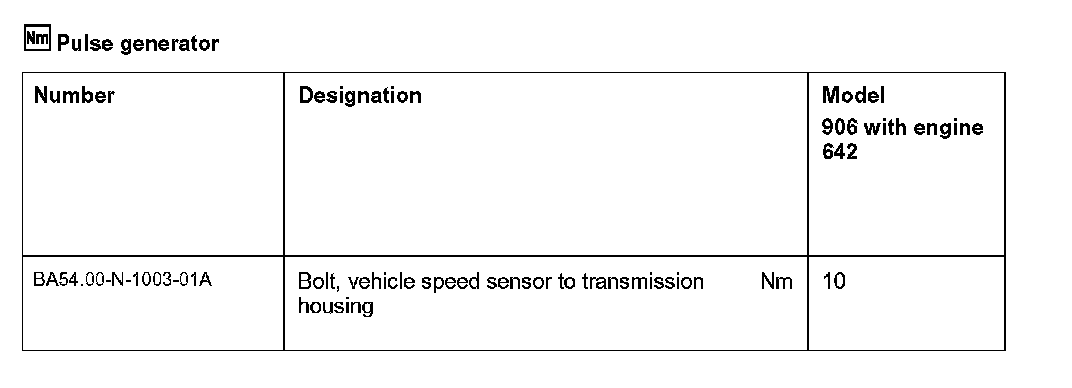

4 Transmission
5 Bolts

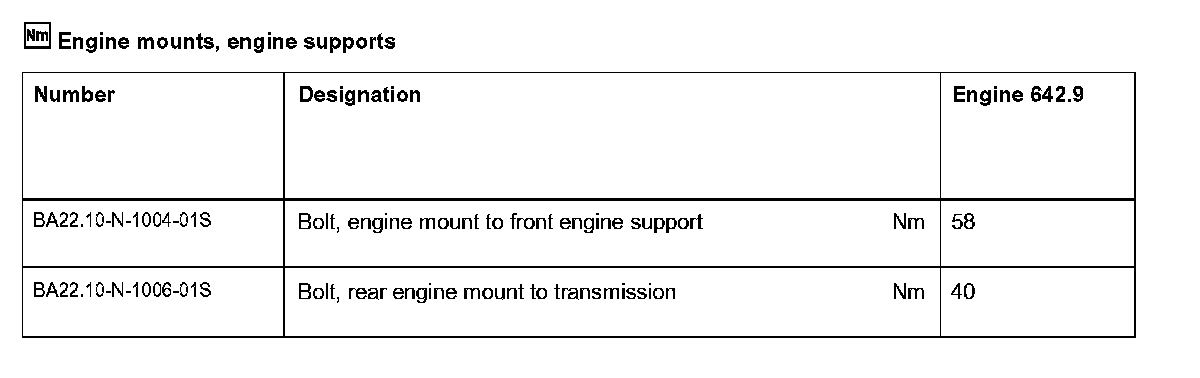

6 Rear engine mount

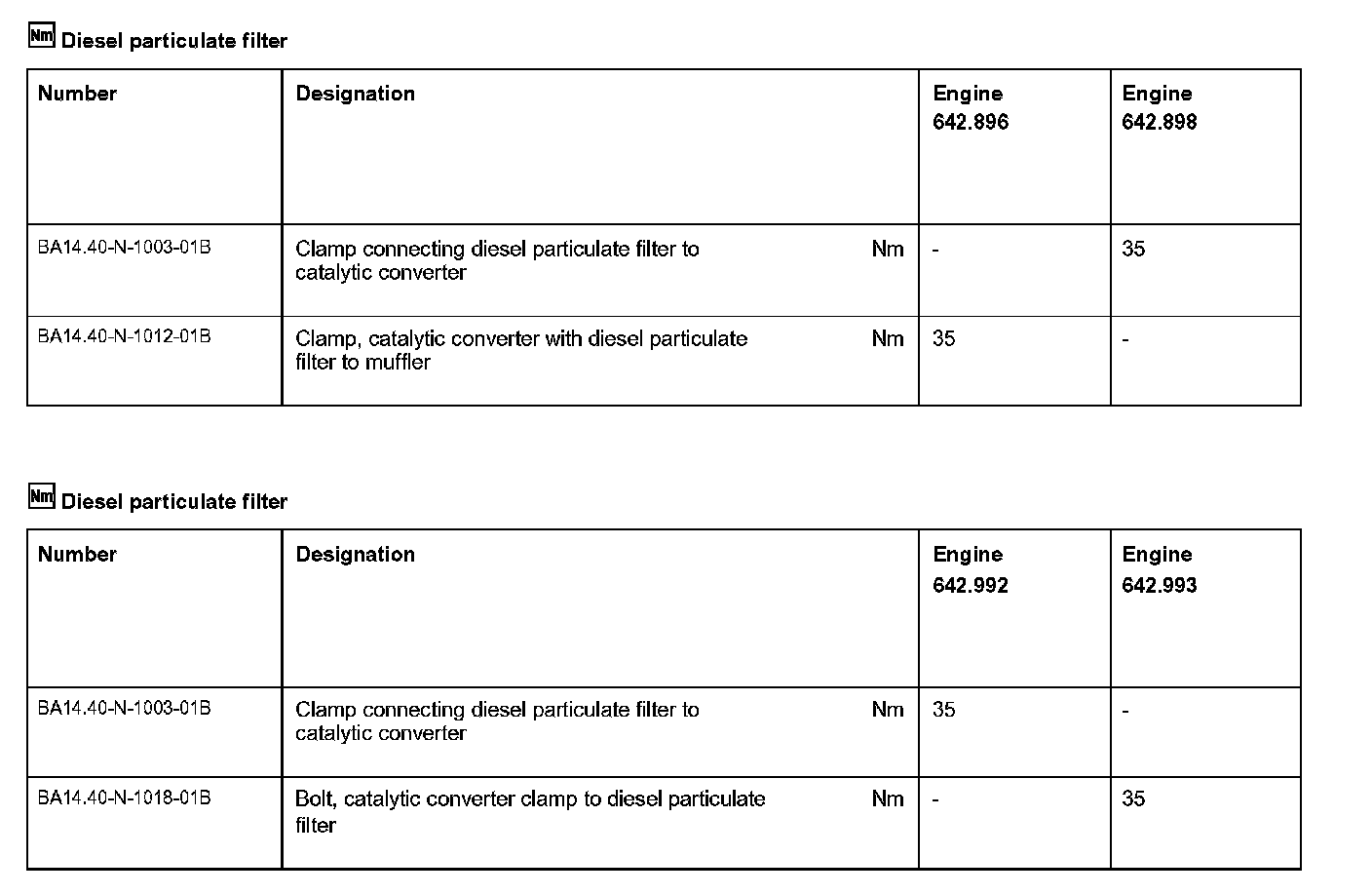

7 Front exhaust system
8 Clip
9 Rear exhaust system

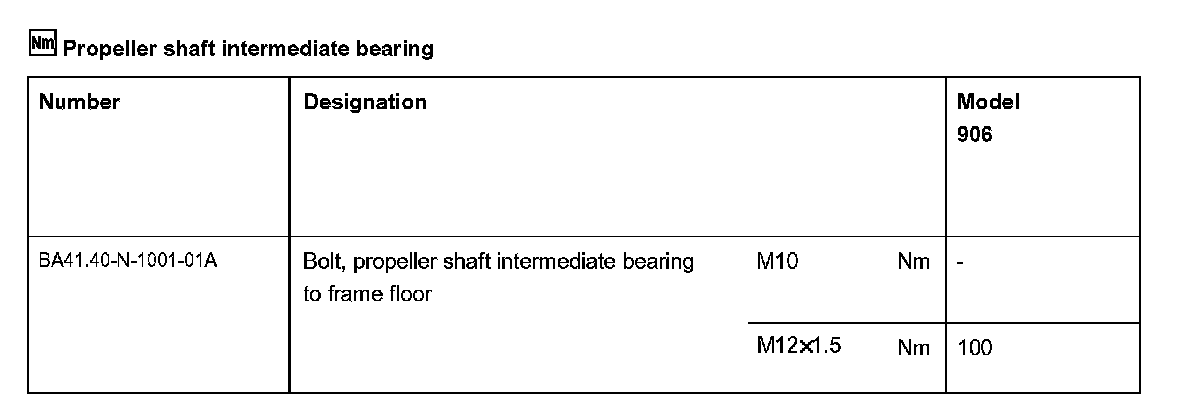

10 Propeller shaft intermediate bearing
11 Frame floor
12 Crossmember





Shown on engine 642.992 with transmission 711.660

4 Transmission
13 Bracket
14 Screw
15 Front engine mount
16 Front axle carrier
17 Engine
18 Engine crane



































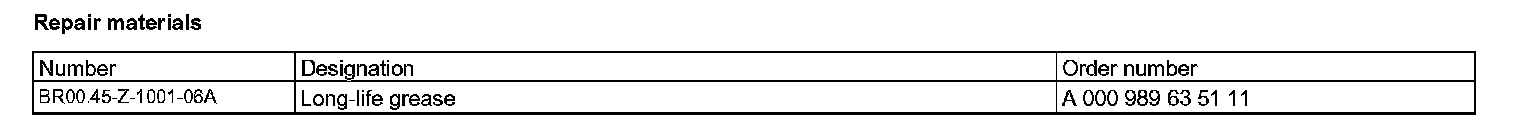

129 589 00 91 00
Set of stop plugs





906 589 01 62 00
Support plate
