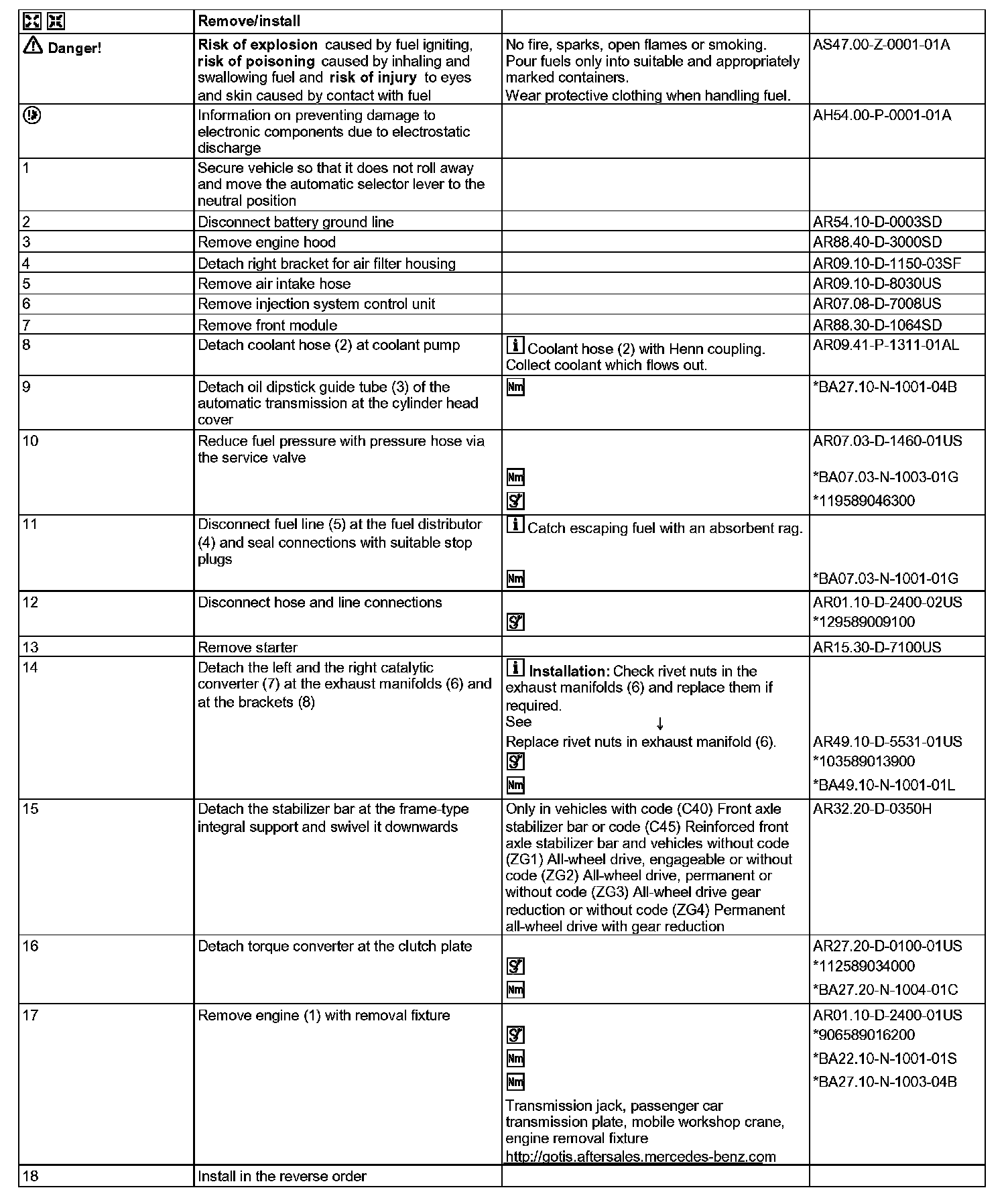

AR01.10-D-2400US Remove/Install Engine

AR01.10-D-2400US Remove/Install Engine

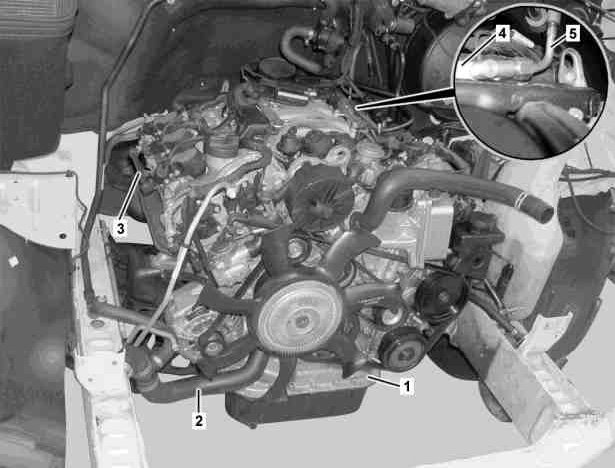

1 Engine
2 Coolant hose

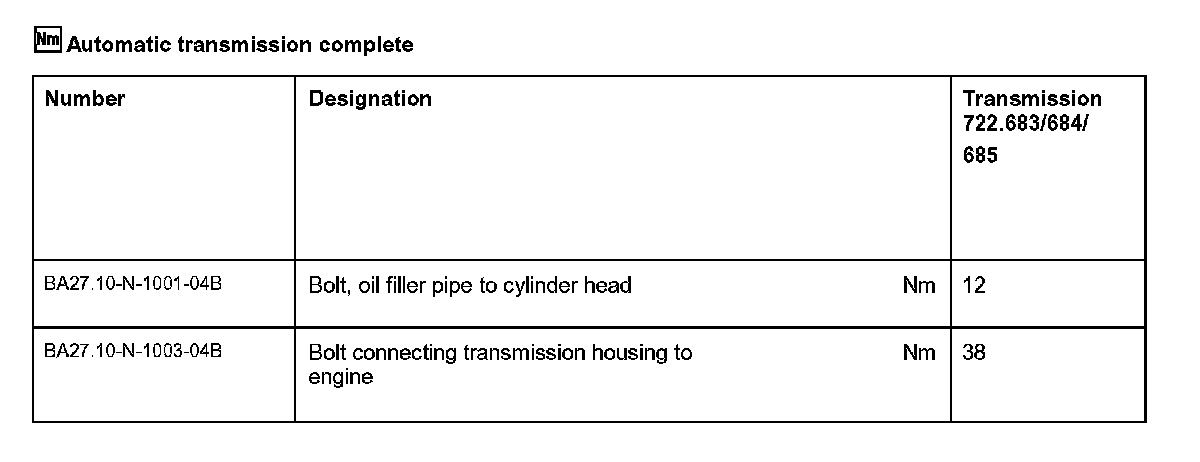

3 Oil dipstick guide tube

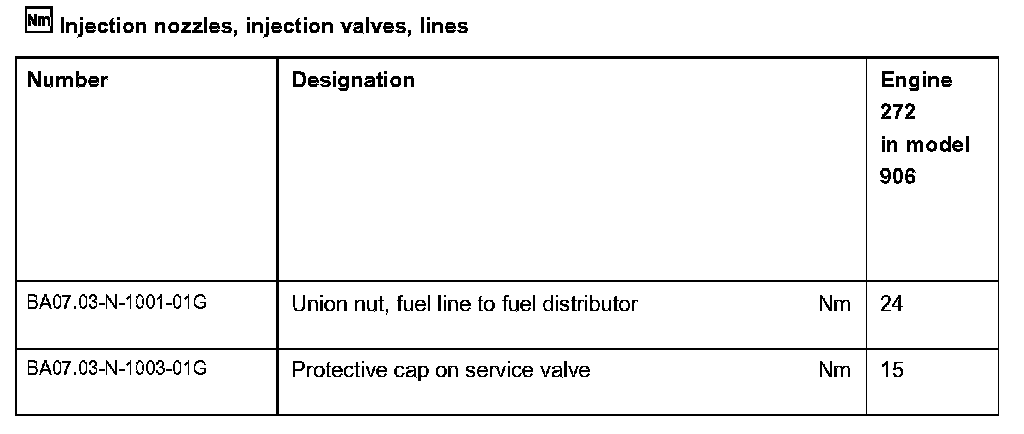

4 Fuel distributor
5 Fuel pipe





Shown on removed transmission carrier

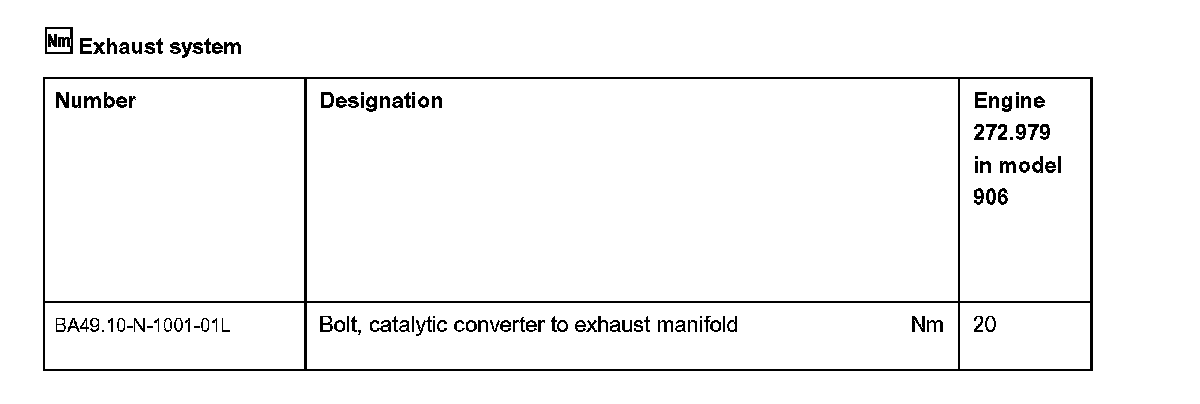

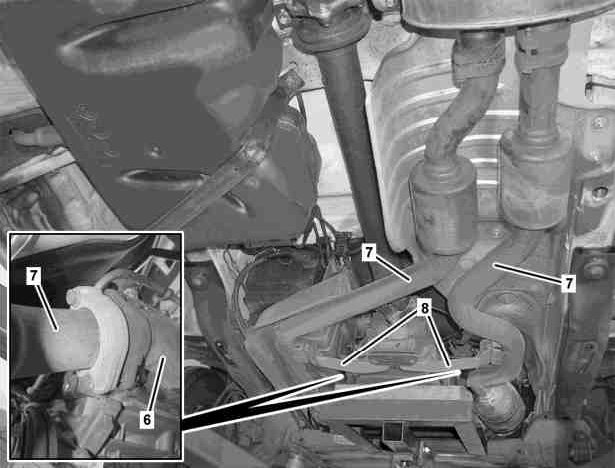

6 Exhaust manifold
7 Catalytic converter
8 Bracket























103 589 01 39 00
Caulking bolt





112 589 03 40 00
Retaining lock





119 589 04 63 00
Pressure hose





129 589 00 91 00
Set of stop plugs





906 589 01 62 00
Support plate
