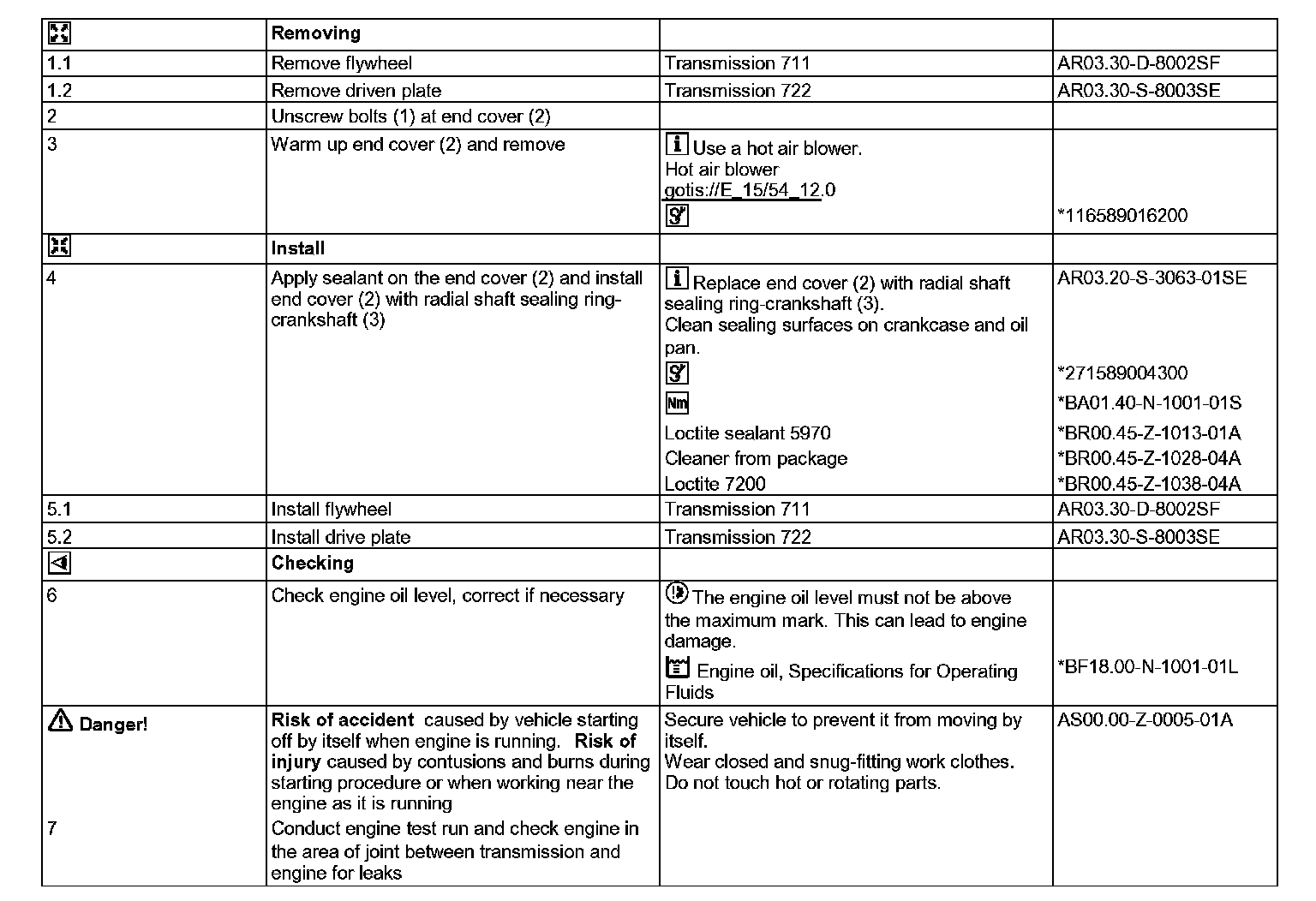

AR03.20-S-3063SE Replace Rear Crankshaft Radial Sealing Ring

AR03.20-S-3063SE Replace Rear Crankshaft Radial Sealing Ring

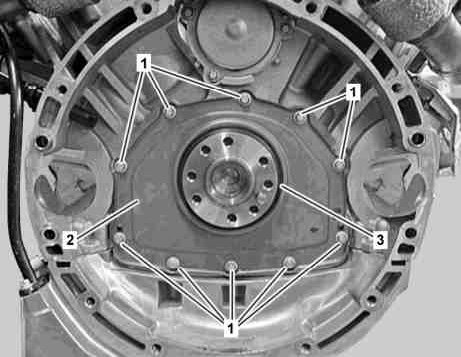

1 Bolts
2 End cover
3 Radial shaft sealing ring-crankshaft














116 589 01 62 00
Removal and installation tool





271 589 00 43 00
Insertion tool
