Oil Line: Service and Repair

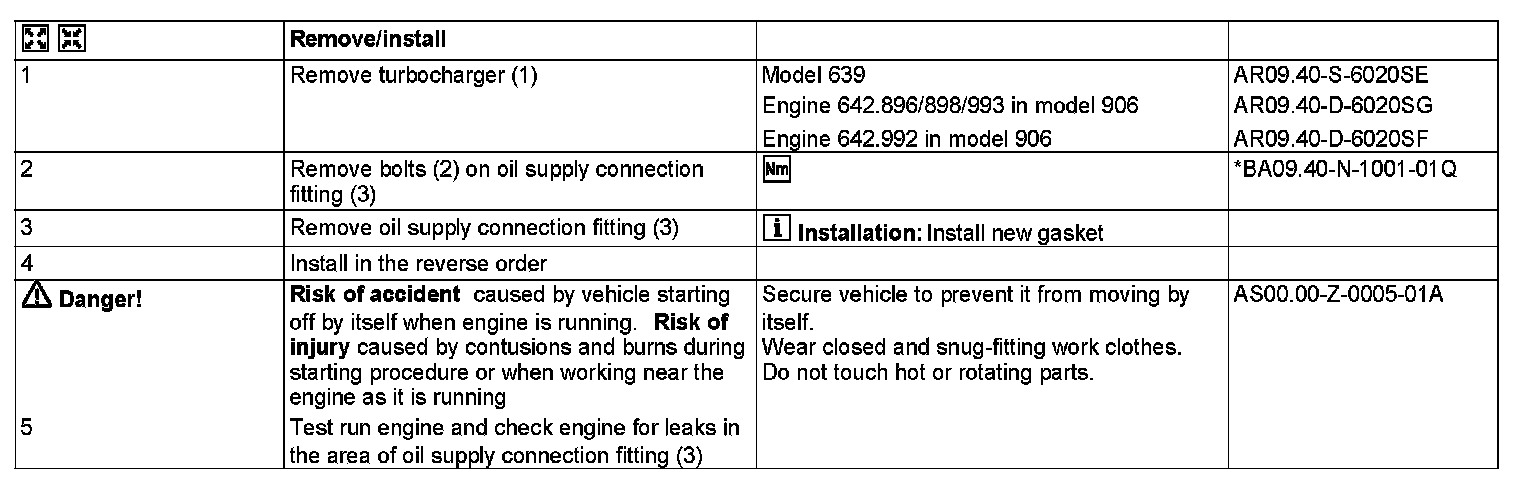

AR09.40-S-6023SE Remove/install Oil Supply Connection Fitting Of Turbocharger

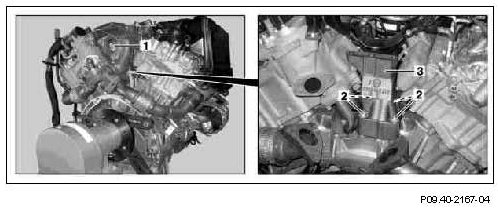

Shown on engine 642 in model 639







1 Turbocharger
2 Bolts
3 Oil supply connection fitting
