Engine Oil Filler / Breather Cap: Service and Repair

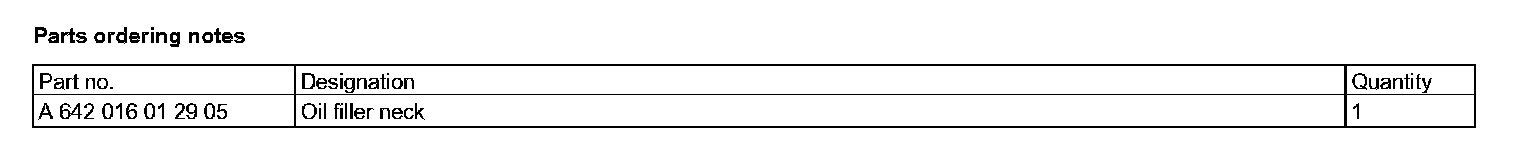

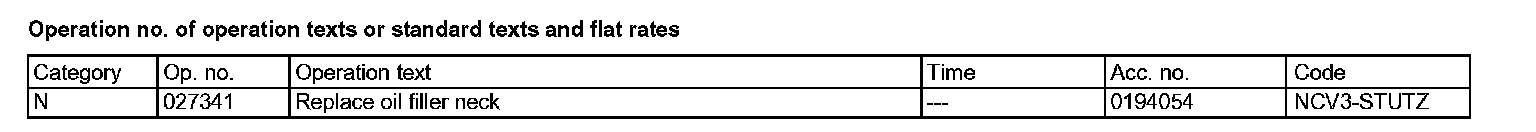

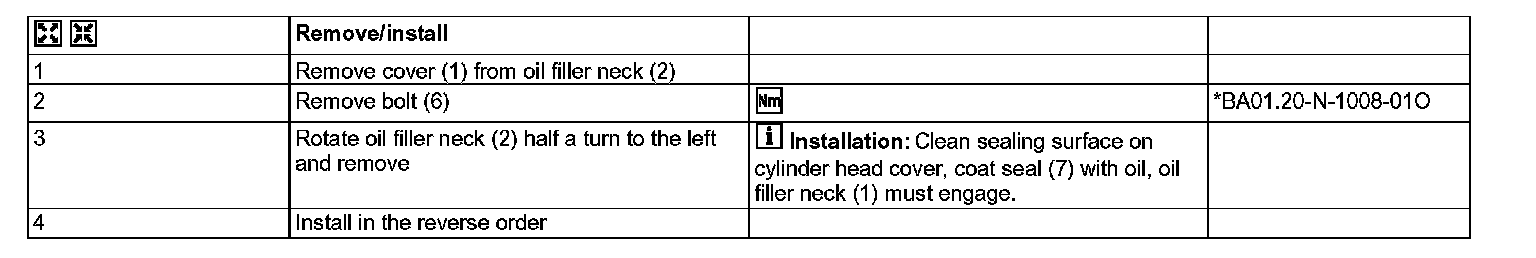

SM01.20-D-0003A Replace Oil Filler Neck
ENGINE 642
in model 906.### #N as of 433227 up to 444445, 906.### #S as of 421603 up to 457428
1
Cover
2
Oil filler neck
6

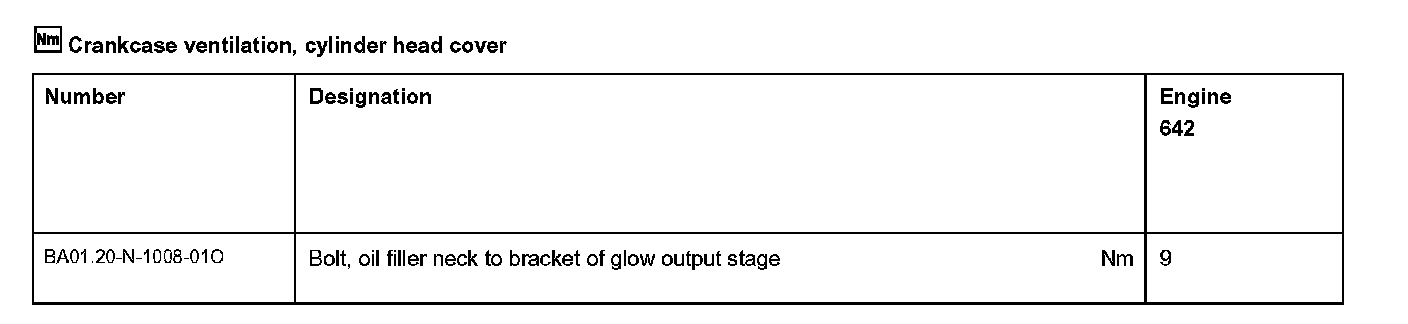

Screw
7
Gasket
