AH01.30-P-1000-02SD Notes on Sealant Path For Front Cover to Cylinder Head xxx

AH01.30-P-1000-02SD Notes on Sealant Path For Front Cover to Cylinder Head xxx

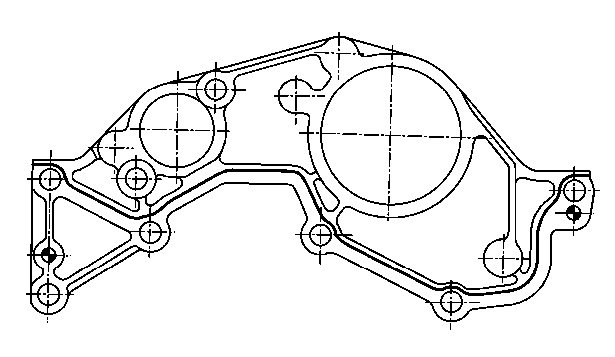

Clean sealing surfaces, apply sealant to marked surface with a bead of 1.5 mm (±0.5 mm).

Attach the cover within 10 minutes of the application. Do not spread sealing bead. Use only the sealant listed in the repair instructions.
