AR01.30-D-5780SF Remove/Install Right Cylinder Head

AR01.30-D-5780SF Remove/Install Right Cylinder Head

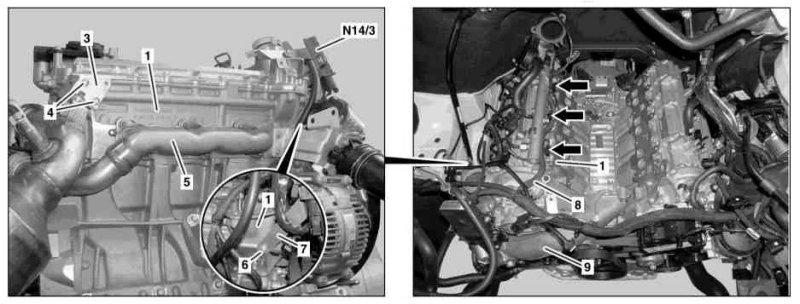

Shown on engine 642.992

1 Right cylinder head
3 Bracket
4 Bolts
5 Exhaust manifold
6 Screw
7 Bracket
8 Engine wiring harness
9 Mixing chamber

N14/3 Glow output stage





Shown on engine 642.896

5 Exhaust manifold
8 Engine wiring harness
16 Mount (engine 642.896/898/993)
17 Mount (engine 642.896/898/993)
18 Ground line (engine 642.896/898/993)





1 Right cylinder head
11 Cylinder head gasket
13 Cylinder head bolt
14 Cylinder head bolt
15 Cylinder crankcase























605 589 00 33 00
Puller





611 589 00 37 00
Pliers
