Piston Ring: Service and Repair

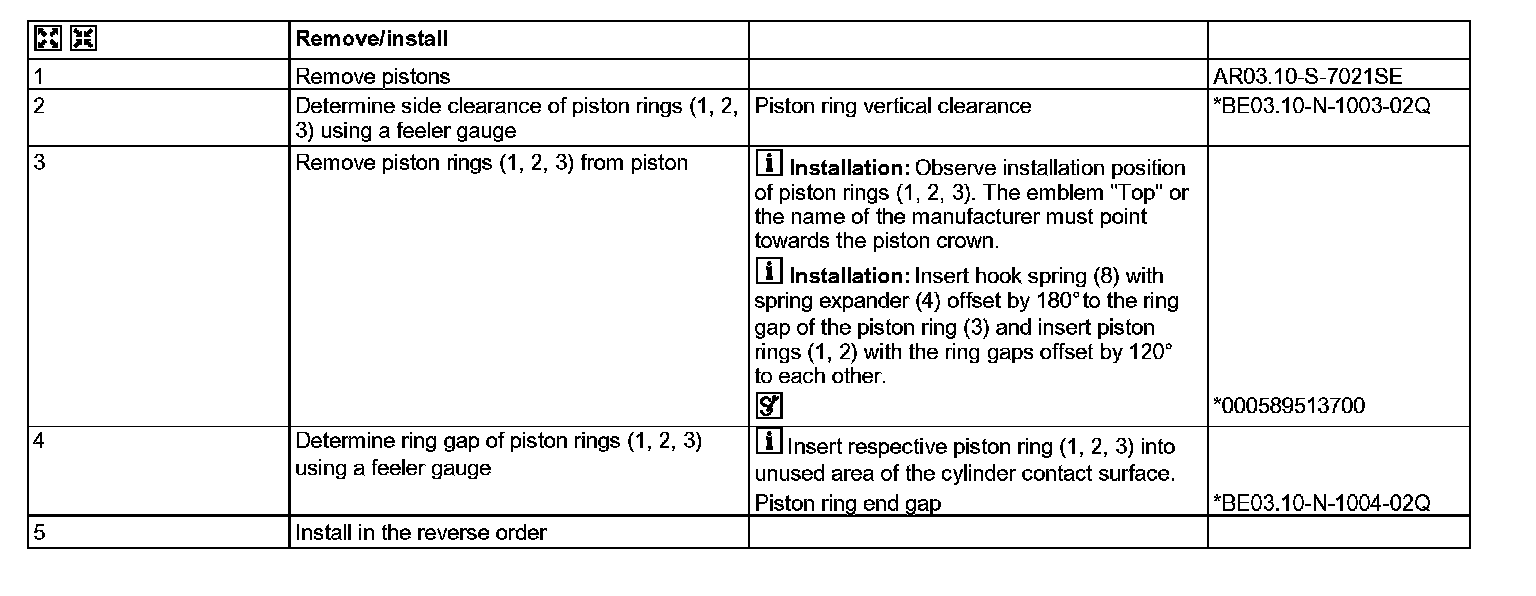

AR03.10-S-7311SE Remove/Install Piston Rings







1 Piston ring (plain compression ring)
2 Piston ring (taper-faced hook scraper ring)
3 Piston ring (oil scraper ring)
4 Coil spring
8 Hooked spring
10 Pliers

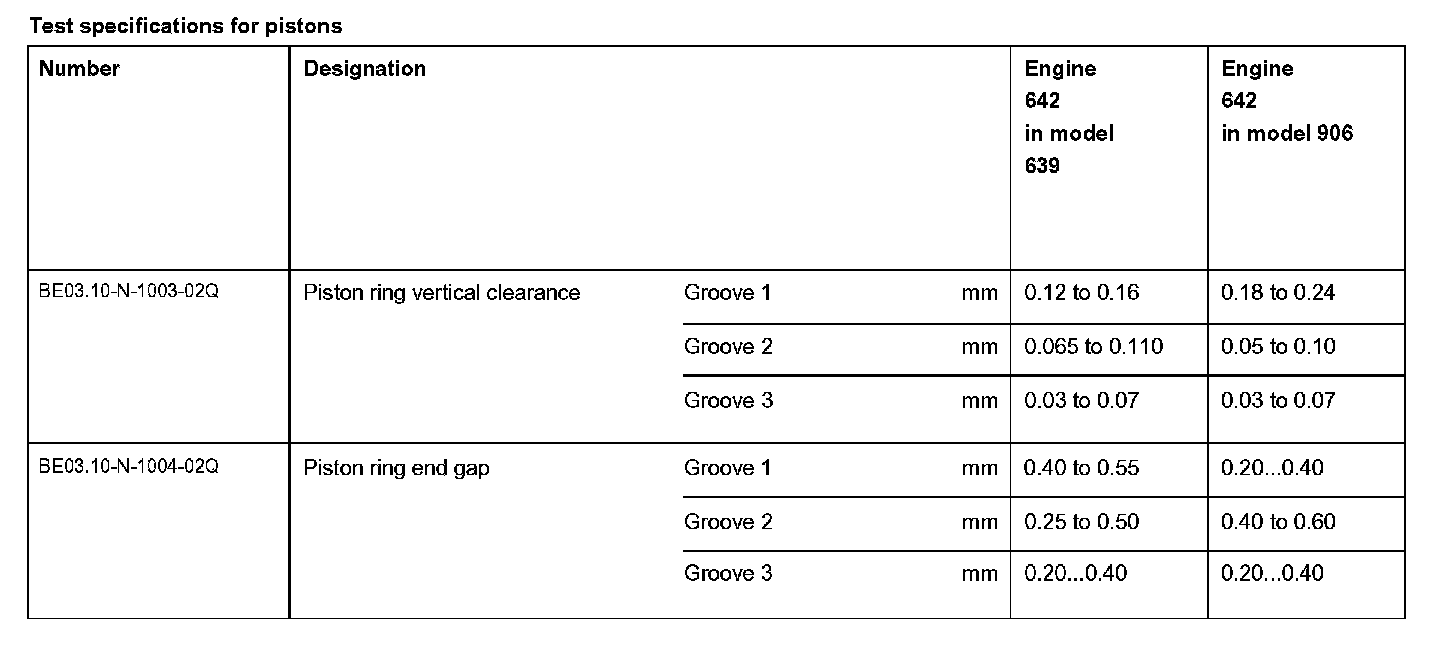

Measure side clearance





Measure end gap











000 589 51 37 00
Pliers
