Harmonic Balancer - Crankshaft Pulley: Service and Repair

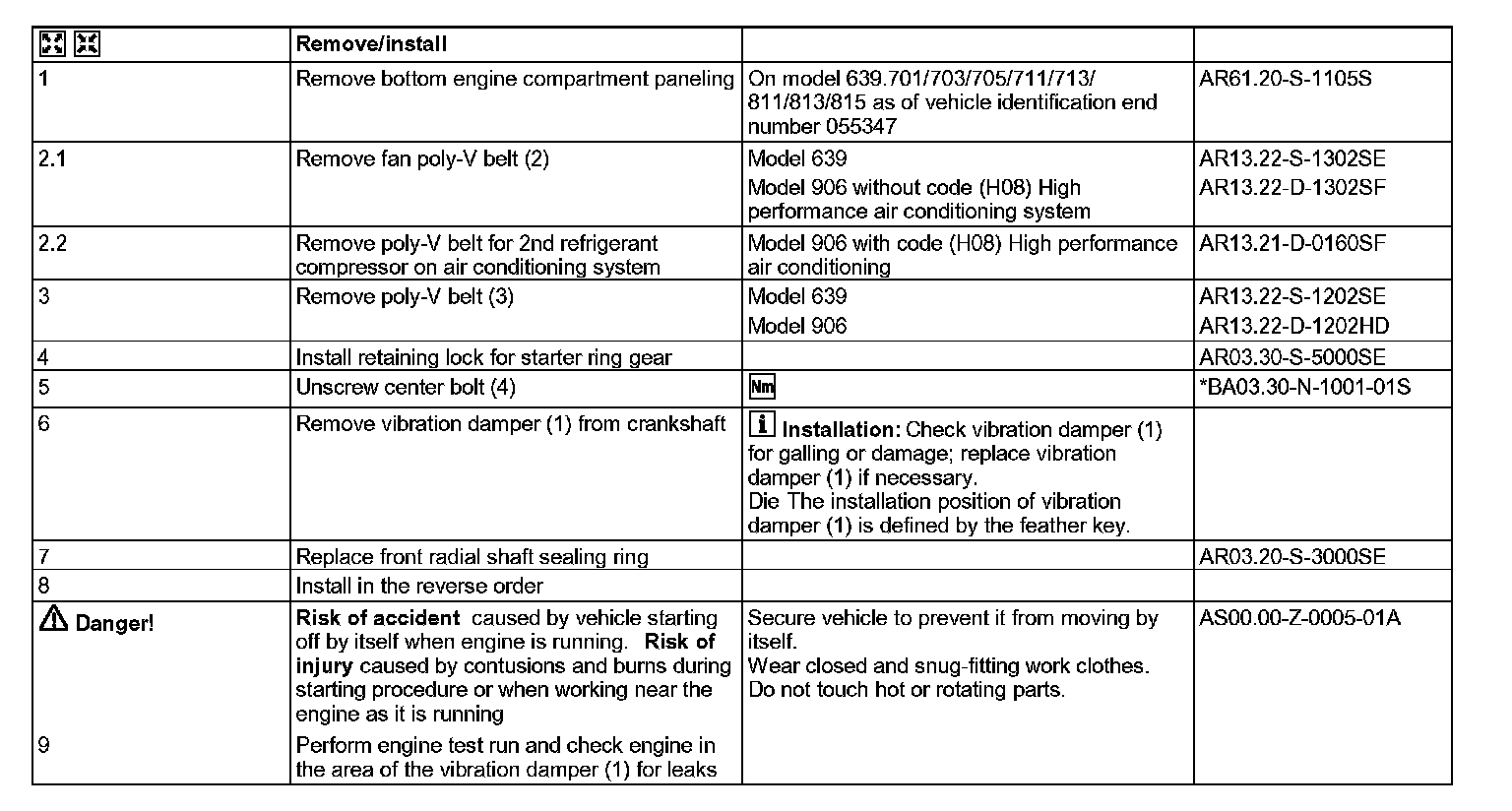

AR03.30-S-1600SE Remove/Install Belt Pulley/Vibration Damper







1 Vibration damper
2 Poly-V belt for fan
3 Poly-V-belt
4 Center bolt
