Lifter / Lash Adjuster: Service and Repair

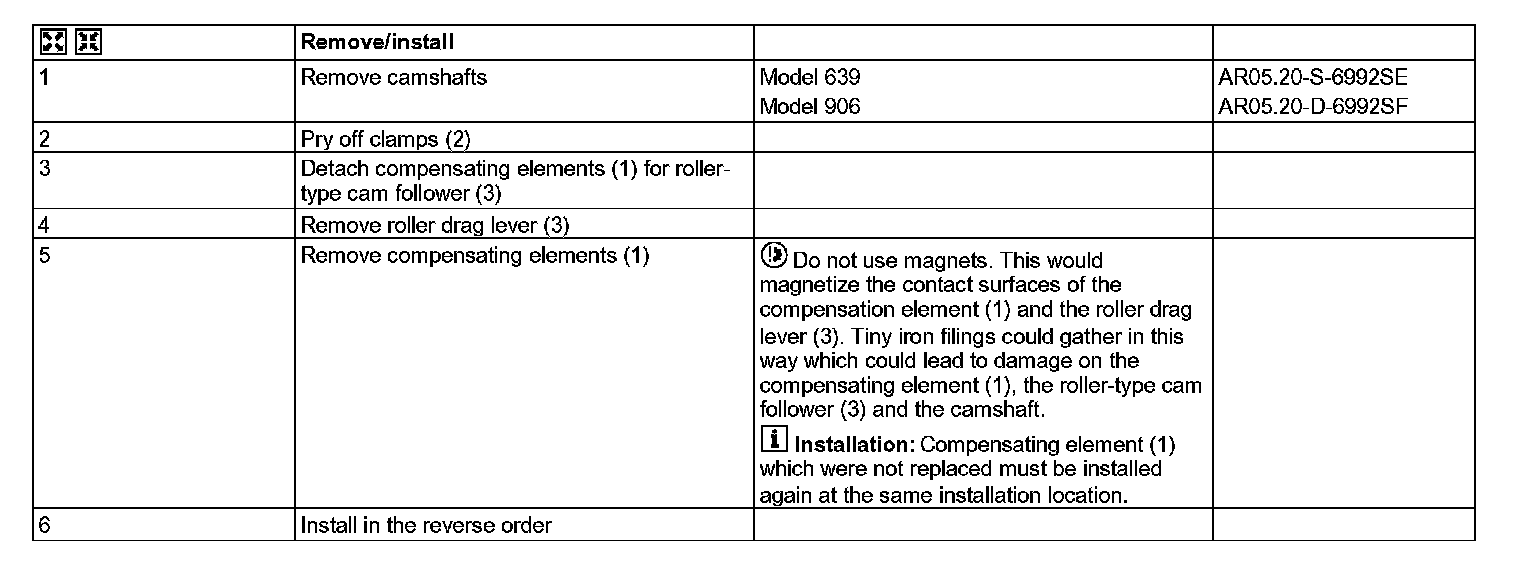

AR05.00-S-2011SE Remove/Install Hydraulic Valve Clearance Compensating Elements

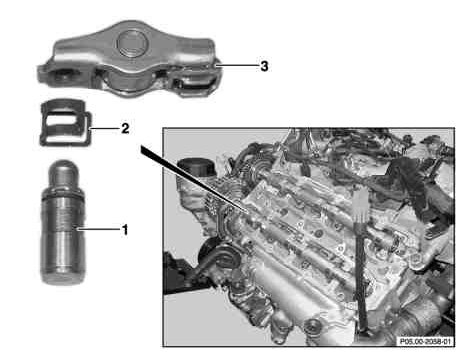

Shown on engine 642 in model 639

1 Compensating element
2 Clamp
3 Roller-type cam follower
