Camshaft: Testing and Inspection

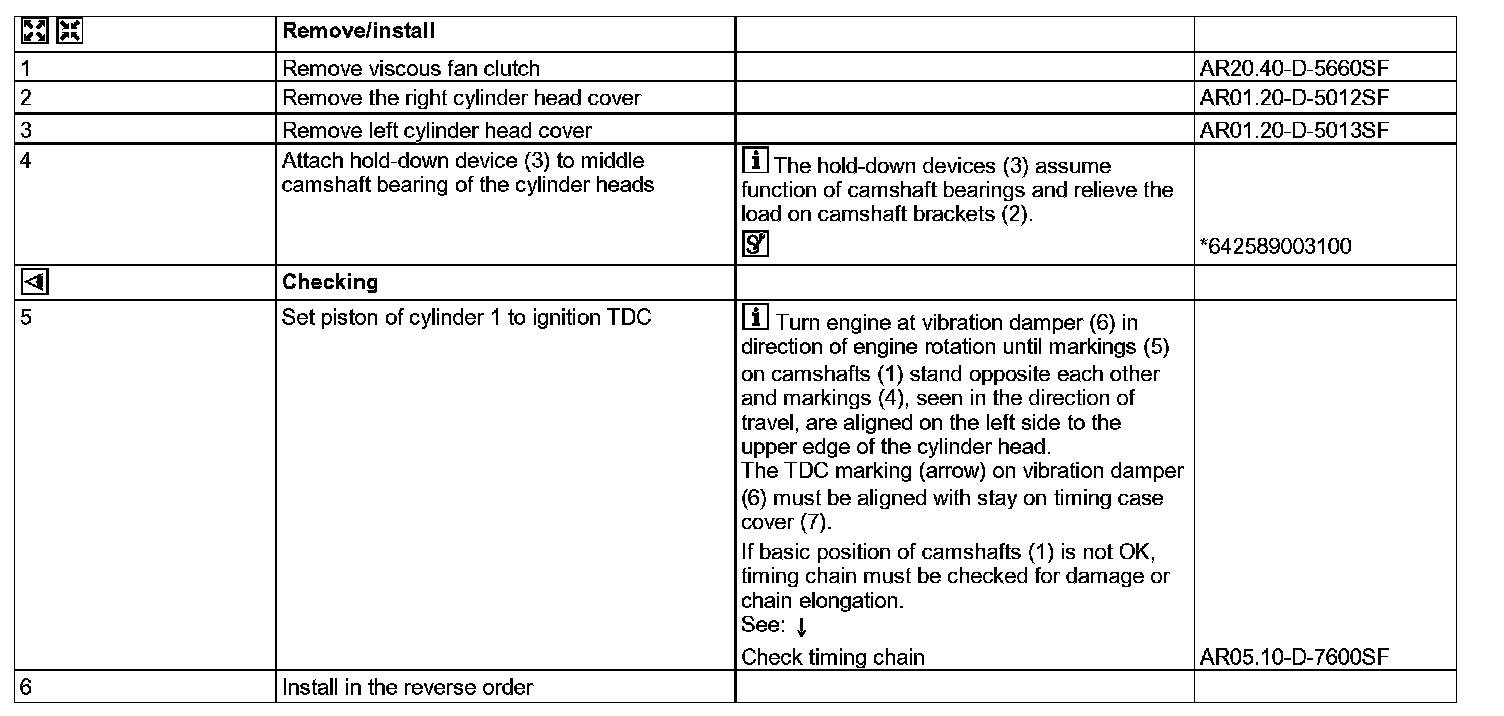

AR05.20-D-6010SF Check Basic Position of Camshafts

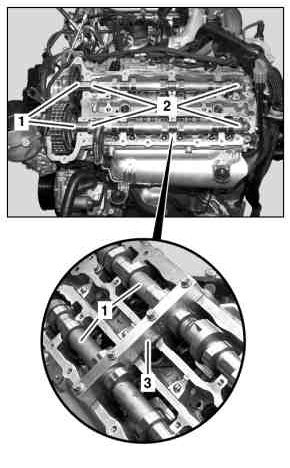

1 Camshafts
2 Camshaft bracket
3 Holddown device

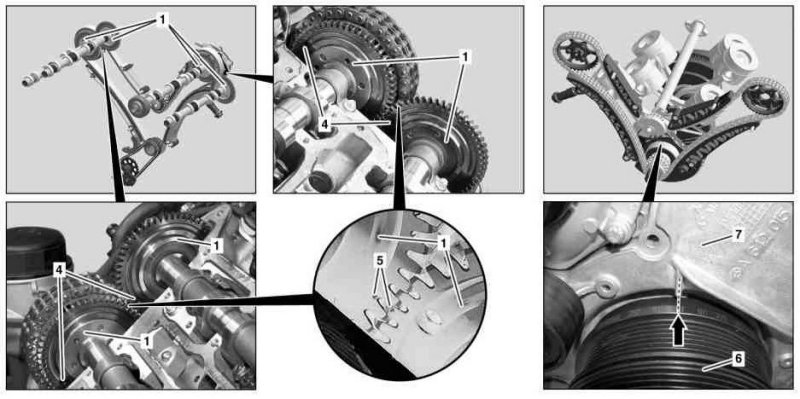

1 Camshafts
4 Markings
5 Markings
6 Vibration damper
7 Timing case cover

Arrow: TDC marking








642 589 00 31 00
Holddown device kit
