Camshaft: Service and Repair

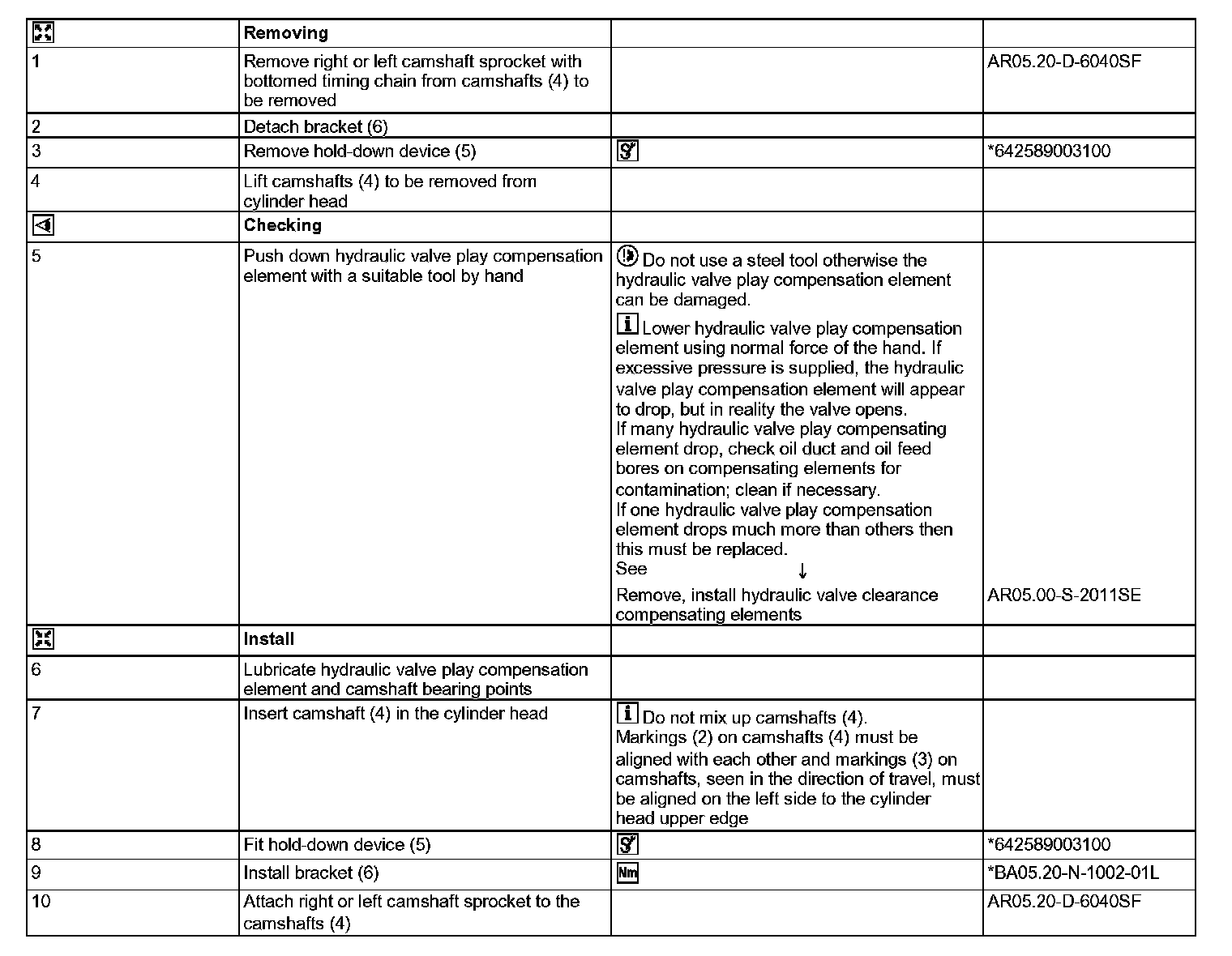

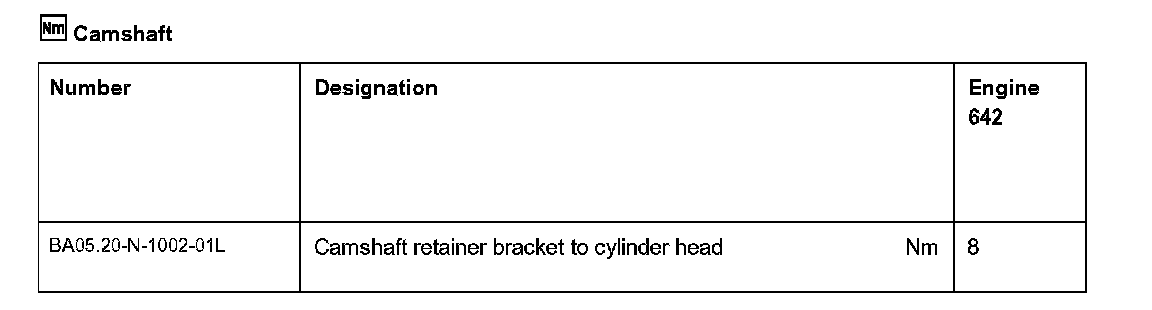

AR05.20-D-6992SF Remove/Install Camshafts

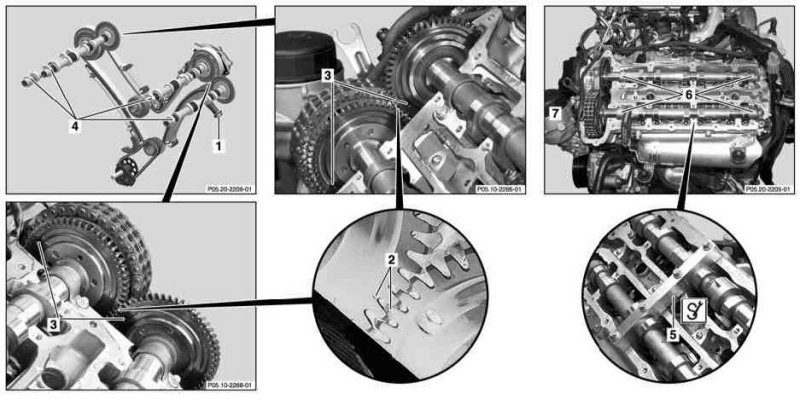

2 Markings
3 Markings
4 Camshafts
5 Hold-down
6 Bracket











642 589 00 31 00
Holddown device kit
