Procedures

AR20.00-D-1142-04SD Pour in Coolant and Bleed Cooling System











285 589 00 21 00
Vacuum-type cooling system filler





639 589 00 91 00
Tester cap

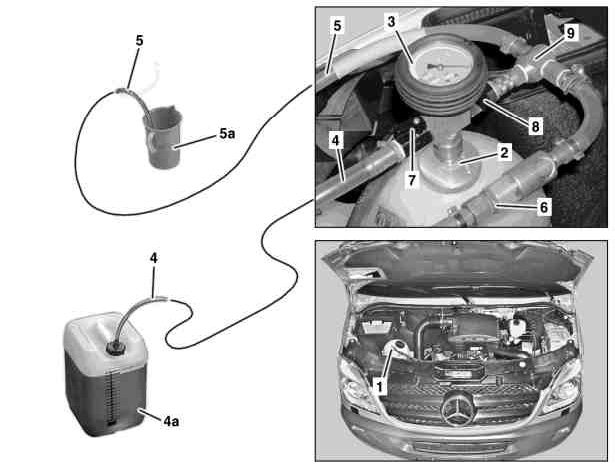

1 Screw on test cap (2) on expansion reservoir (1).
2 Attach control unit (3) to test cap (2).
3 Attach venturi nozzle (9) to control unit (3).
4 Close drain valve (8) and feed valve (7).

Shown on engine 646.985

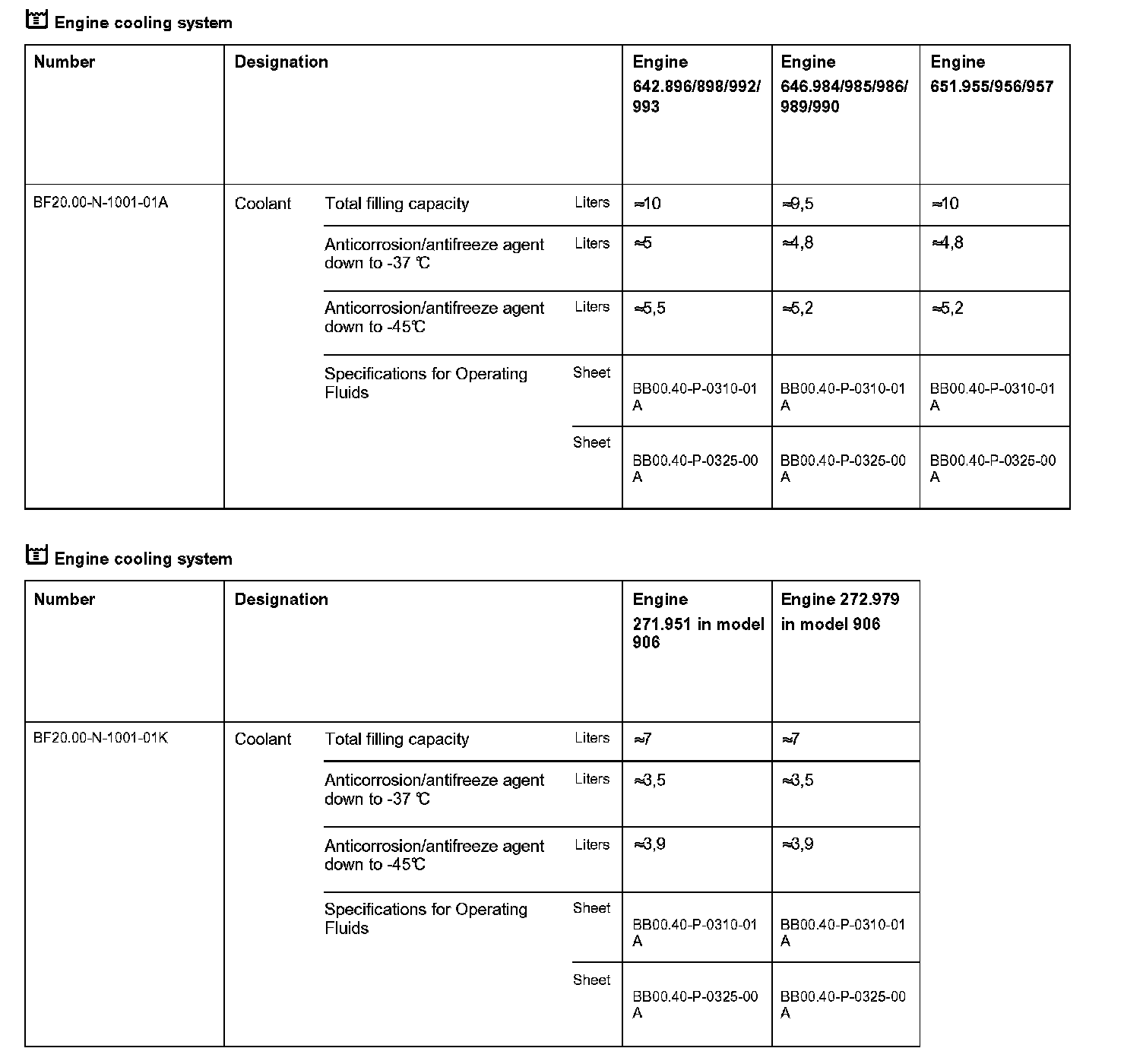

5 Attach feed hose (4) to coolant reservoir (4a). To prevent air from being drawn in, ensure that the coolant tank (4a) contains more coolant than the maximum filling capacity of the cooling system.
6 Guide waste air hose (5) into an empty container (5a)
7 Connect compressed air hose (6) to the venturi nozzle (9) and apply pressure.
8 Open drain valve (8). A vacuum is created in the cooling system.
9 Open feed valve (7) until the feed hose (4) has filled with coolant.
10 Close the drain valve (8) if the display of the control unit (3) is in the green area.
11 Detach compressed air hose (6) from the venturi nozzle (9) and monitor if the vacuum remains stable for 30 seconds. If this is not the case, check hoses and connections, repair if necessary and check again.
12 Open feed valve (7). The cooling system is filled.
13 Open drain valve (8) if coolant is no longer suctioned.
14 Remove control unit (3) along with all the connections and the test cap (2).
15 Fill coolant up to the bottom edge of the marking on the expansion reservoir (1)
