AR20.20-D-3865-09SD Disconnect/Connect Coolant Hoses at Radiator

AR20.20-D-3865-09SD Disconnect/Connect Coolant Hoses At Radiator

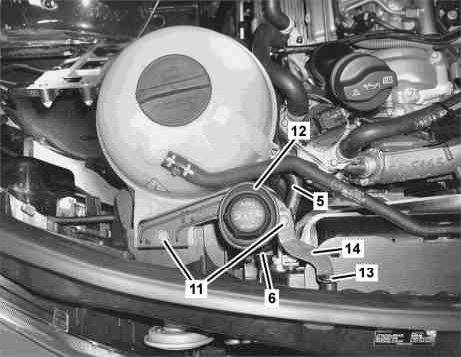

Shown on engine 642.898

1 Unscrew bolts (11).

With engine 642.898

2 Unscrew bolt (13) and remove bracket (14).

For engine 642.898

3 Remove AdBlue filler neck (12) from working area to expose coolant hoses (5, 6).

For engine 642.898





4 Unclip coolant hose (2) on cover (1).
5 Detach coolant hoses (5, 6) at radiator (8)
6 Unscrew bolt (3).

Not with engine 642.898

7 Disconnect electrical connector (7) and lay expansion reservoir (4) down to side.
8 Detach coolant hoses (9, 10) at radiator (8)
9 Connect in reverse order.
