Removal and Replacement

AR20.30-D-4950SD Remove/Install Expansion Reservoir

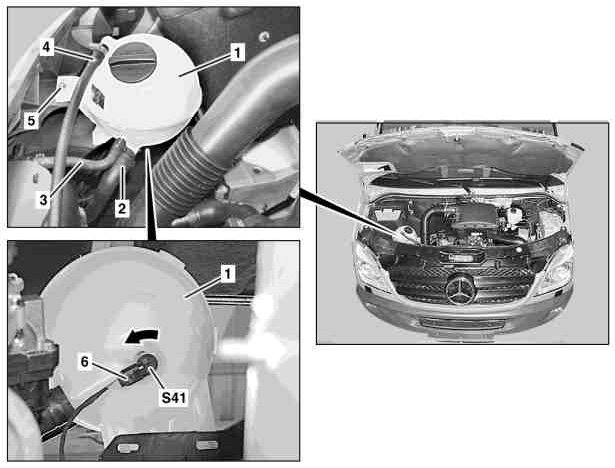

Shown on engine 646.985

1 Expansion reservoir
2 Coolant hose
3 Coolant hose
4 Coolant hose (with engine 271, 642, 646, 651)
5 Bolt (not on engine 642.989)
6 Electrical connector

S41 Coolant level indicator switch

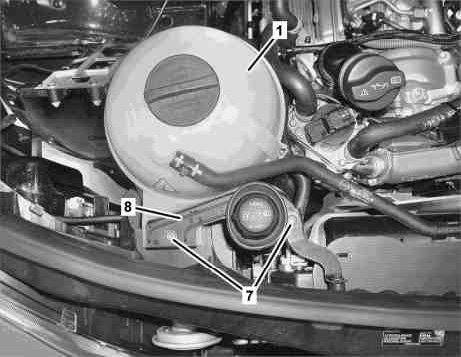

Shown on engine 642.898

1 Expansion reservoir
7 Bolts (on engine 642.898)
8 Bracket (on ENGINE 642.898)








210 589 00 71 00
Hand pump
