AR43.40-D-1050-02C Check Power Consumption of Telma Retarder
AR43.40-D-1050-02C Check Power Consumption of Telma Retarder
- with CODE (PB2) Mastercode retarder VMC

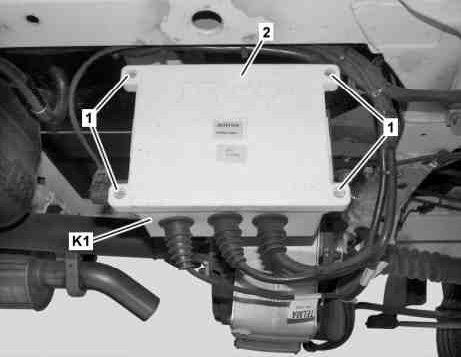

1 Unscrew bolts (1) from cover (2) of retarder relay box (K1).
2 Remove cover (2)
3 Check condition of retarder relay box (K1) and relay (3, 4, 5) by visual inspection.
Replace in the event of a complaint on the retarder relay box (K1) or the relay (3, 4, 5), retarder relay box (K1).
4 Visually check connection of electrical lines (11) in the retarder relay box (K1).
If necessary, repair electrical lines (11).
5 Use digital multimeter to check voltage supply of electrical line (7) and ground supply for ground lines (9).
Digital multimeter
gotis://E_15/54_06.0
If necessary, repair electrical lines (7) or ground lines (9).
6 Visually check connection of electrical lines (6) in the retarder relay box (K1).
If necessary, repair electrical lines (6).
7 Visually check connection of retarder connector (X97).
If necessary, repair or replace retarder connector (X97).

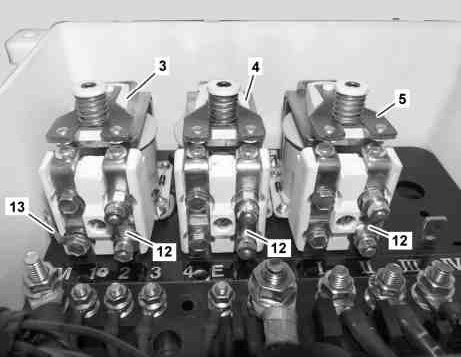

8 Visually check fuses (12) on relay (3, 4, 5).
If necessary, replace defective fuse (12), a spare fuse (13) is installed on the relay (3).

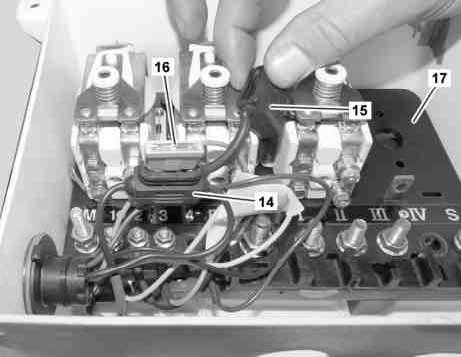

9 Pull fuse holder (14) under covering (17).
10 Detach cap (15) from fuse holder (14) and visually check fuse (16).
Replace fuse (16) when damaged.
11 Push cap (15) onto fuse holder (14) and slide fuse holder (14) under the covering (17).

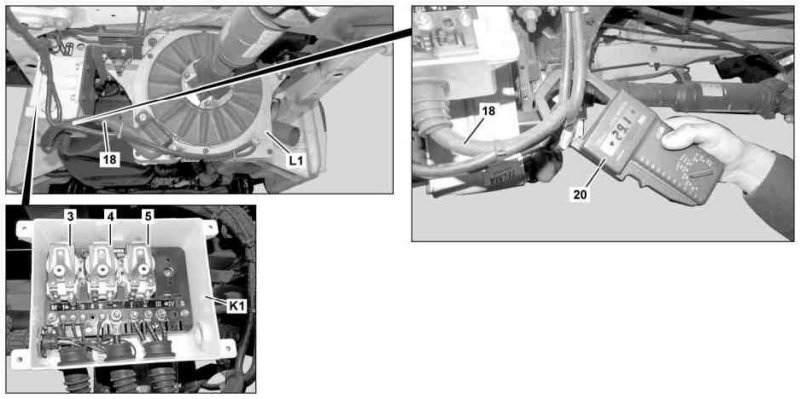

12 Expose electrical wiring harness (18) to retarder (L1)
13 Clip current clamp (20) onto electrical wiring harness (18).
Current clamp
gotis://E_15/54_08.0
14 Press buttons on relay (3, 4, 5) in the retarder relay box (K1) one after the other and read off measurements on current clamp (20) then note down.
Current clamp
gotis://E_15/54_08.0

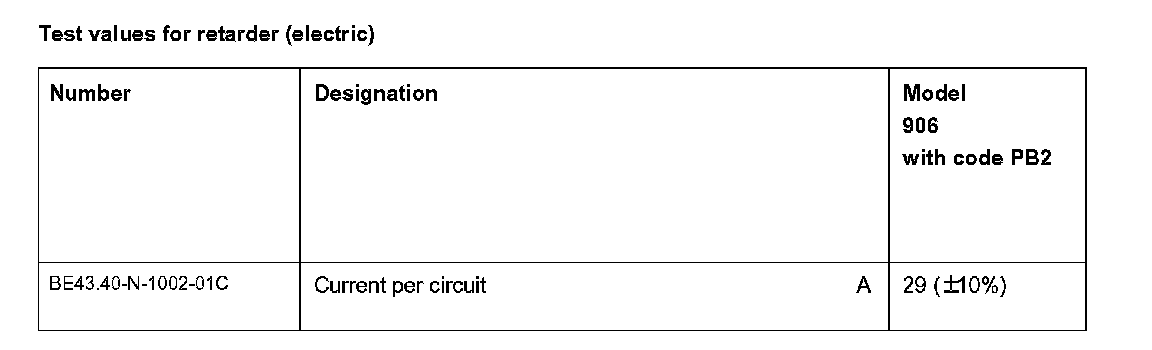

The measurement values must be in tolerance. If one of the measurement values is out of tolerance, the retarder (L1) has to be replaced.
15 Mount cover (2).
Check seal is correctly seated in the cover (2).
16 Tighten bolts (1) on cover (2) of retarder relay box (K1).
