AR42.10-D-1600-11A Inspect Condition of Brake System

AR42.10-D-1600-11A Inspect Condition of Brake System























000 589 26 68 00
Brake caliper brush





124 589 05 19 00
Vernier caliper

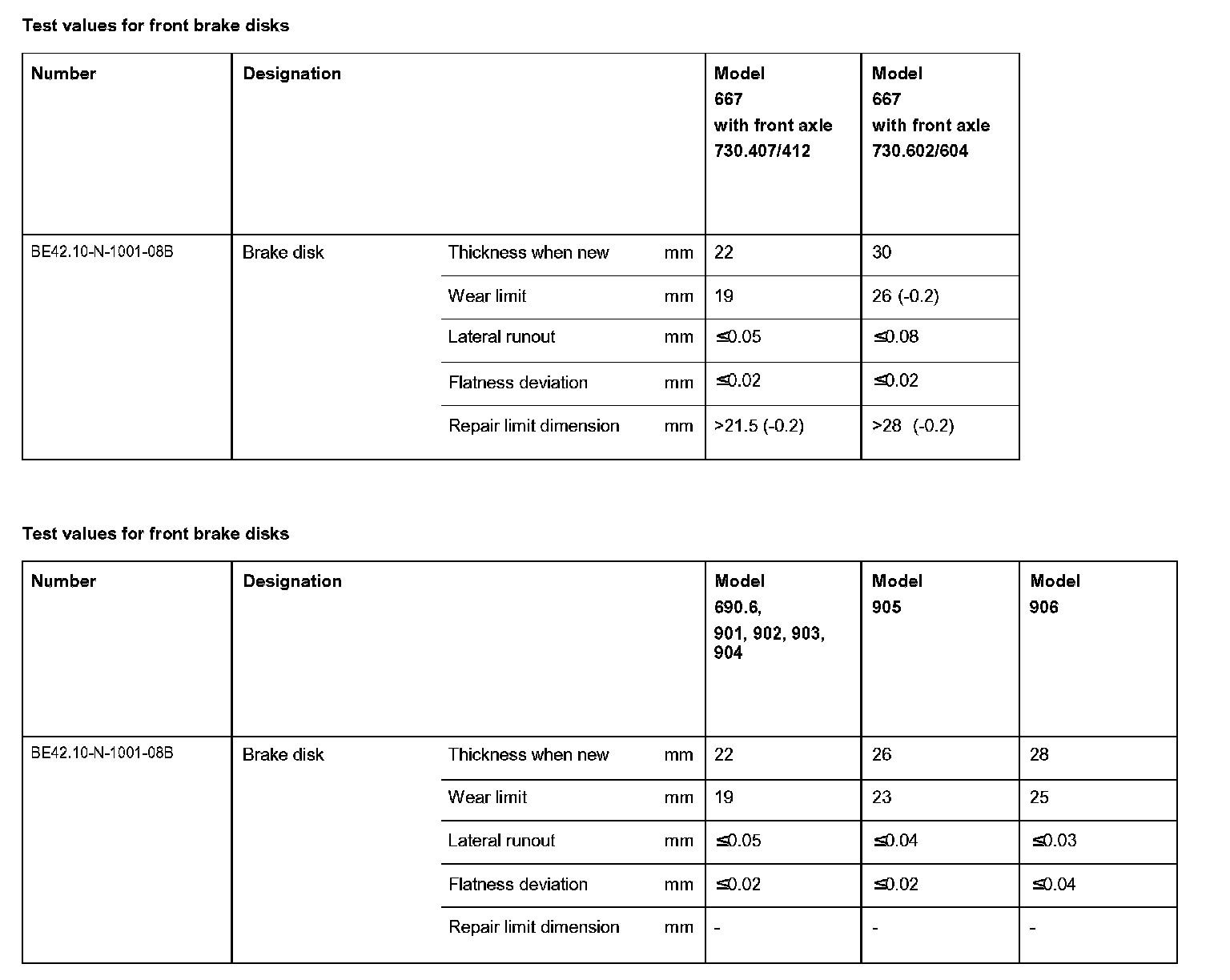

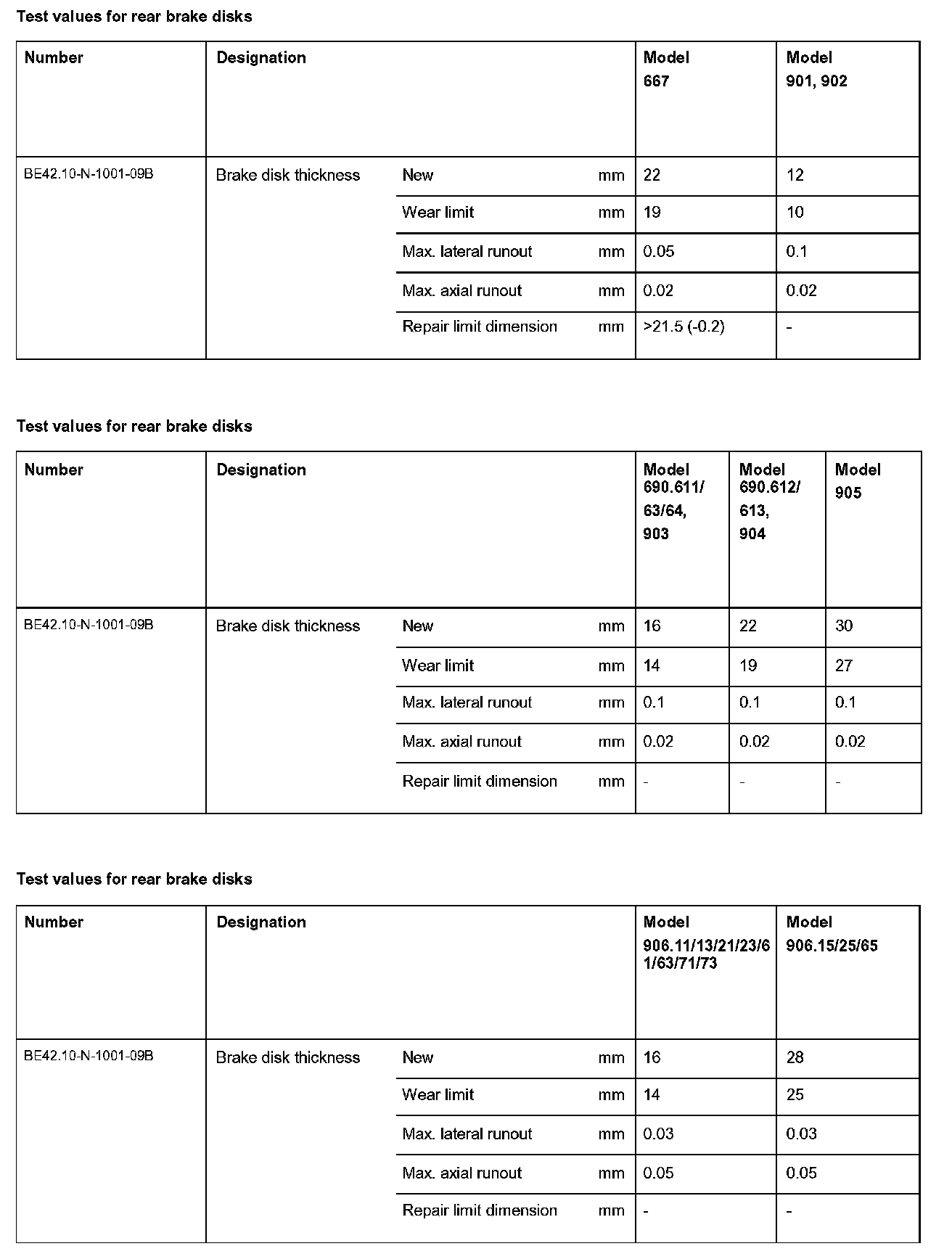

1 Use to measure thickness of brake disk; if less than wear limit, replace brake disk.

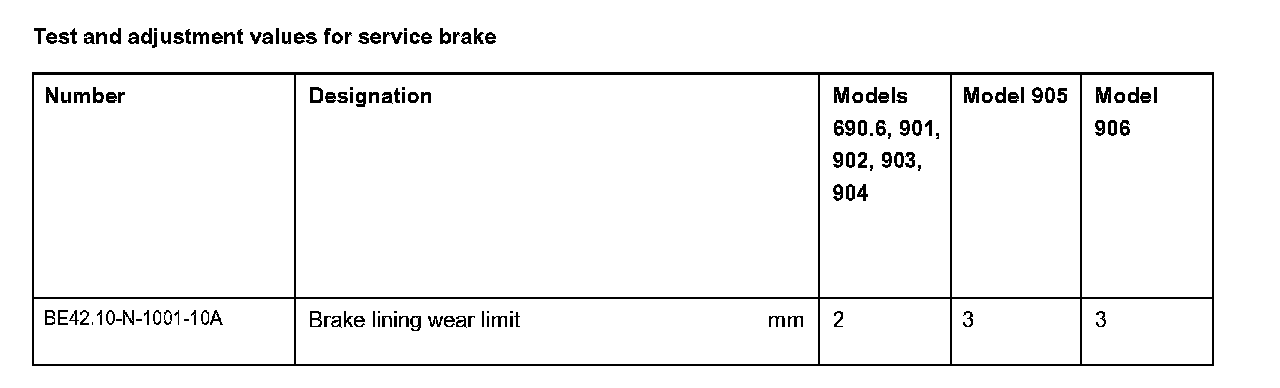

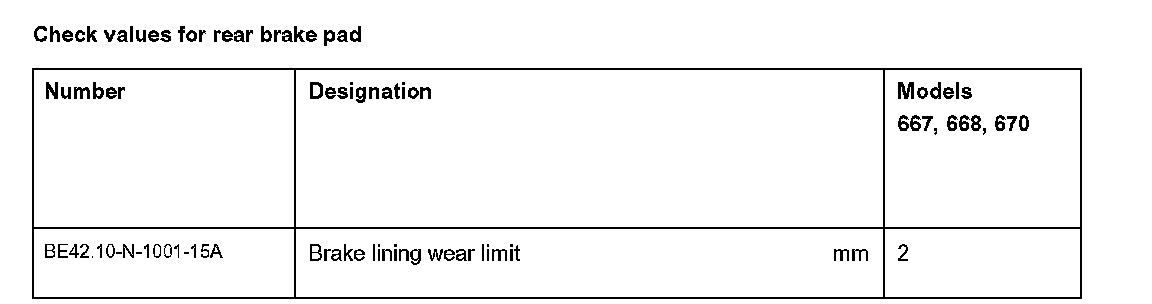

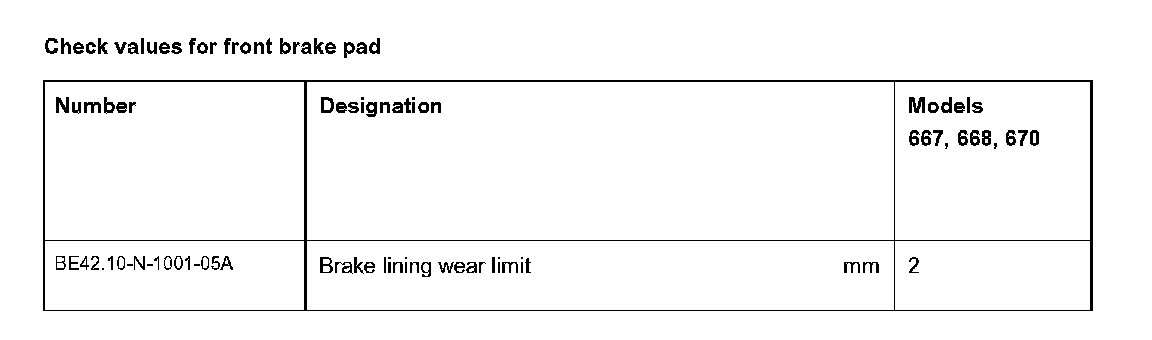

2 Measure lining thickness.
3 Check dust boot on top section of brake caliper (9) and brake hoses (10) for damage and replace if necessary.
4 Clean sliding plates, check and replace if necessary.

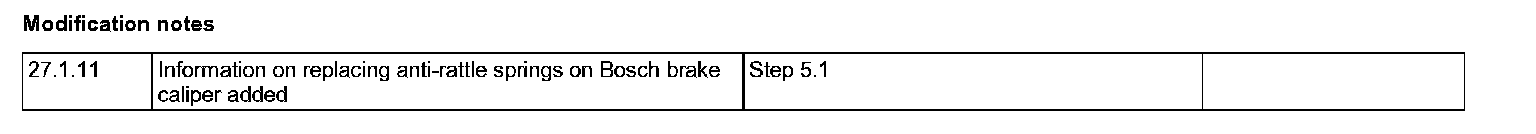

5.1 Check anti-rattle springs and replace if they exhibit damage or plastic deformation.

Only model 906 with Bosch brake caliper

5.2 Replace anti-rattle springs.

Only model 906 with Brembo brake caliper
